Model
Jenn-Air JFI2089ATS10
Refrigerator
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelJenn-Air
JFI2089ATS10Refrigerator
11 diagrams278 parts
Parts Sections (11)

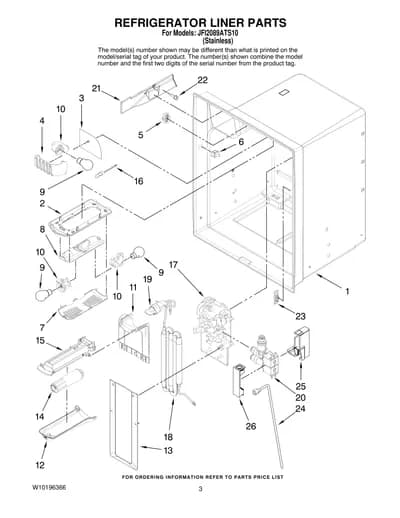

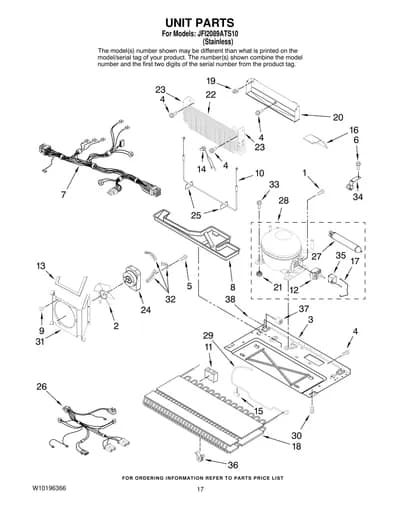

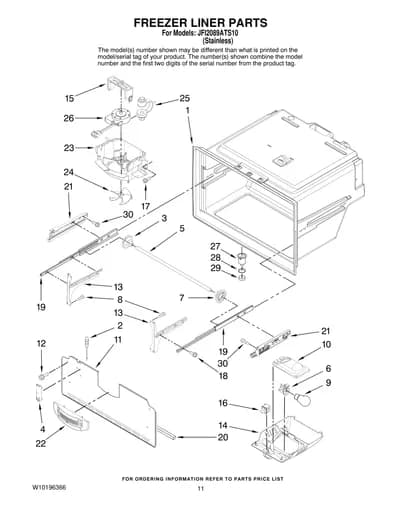

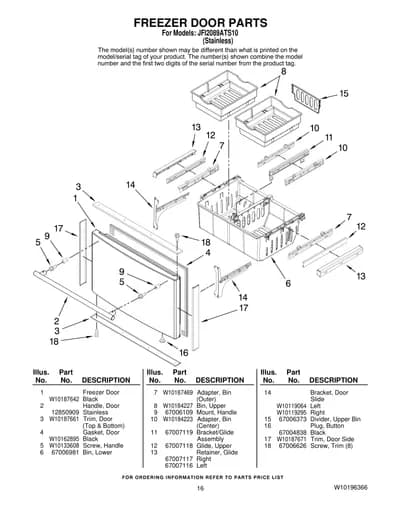

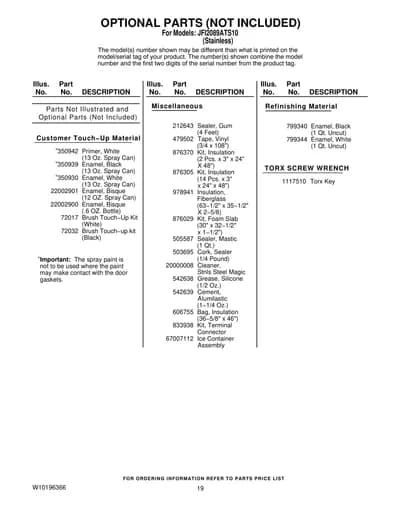

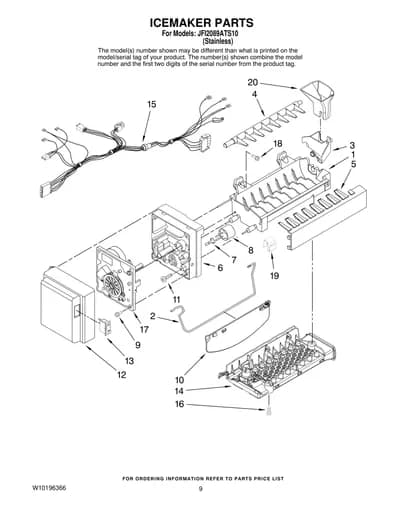

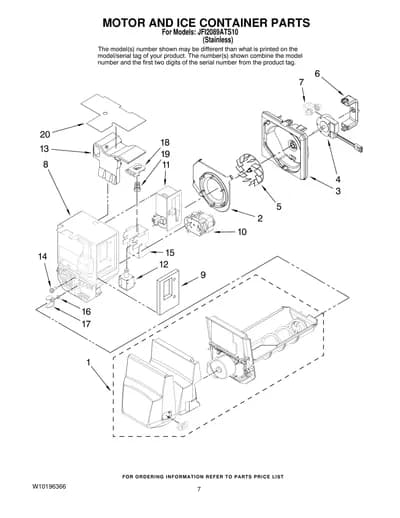

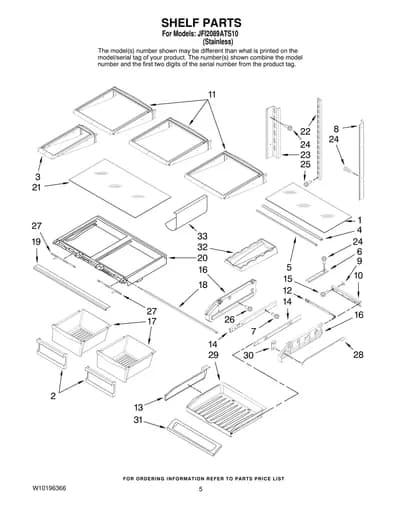

Diagram

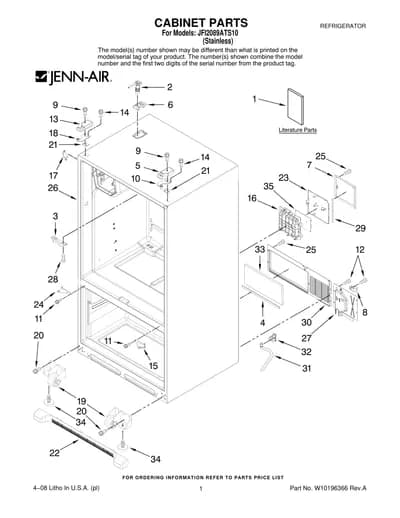

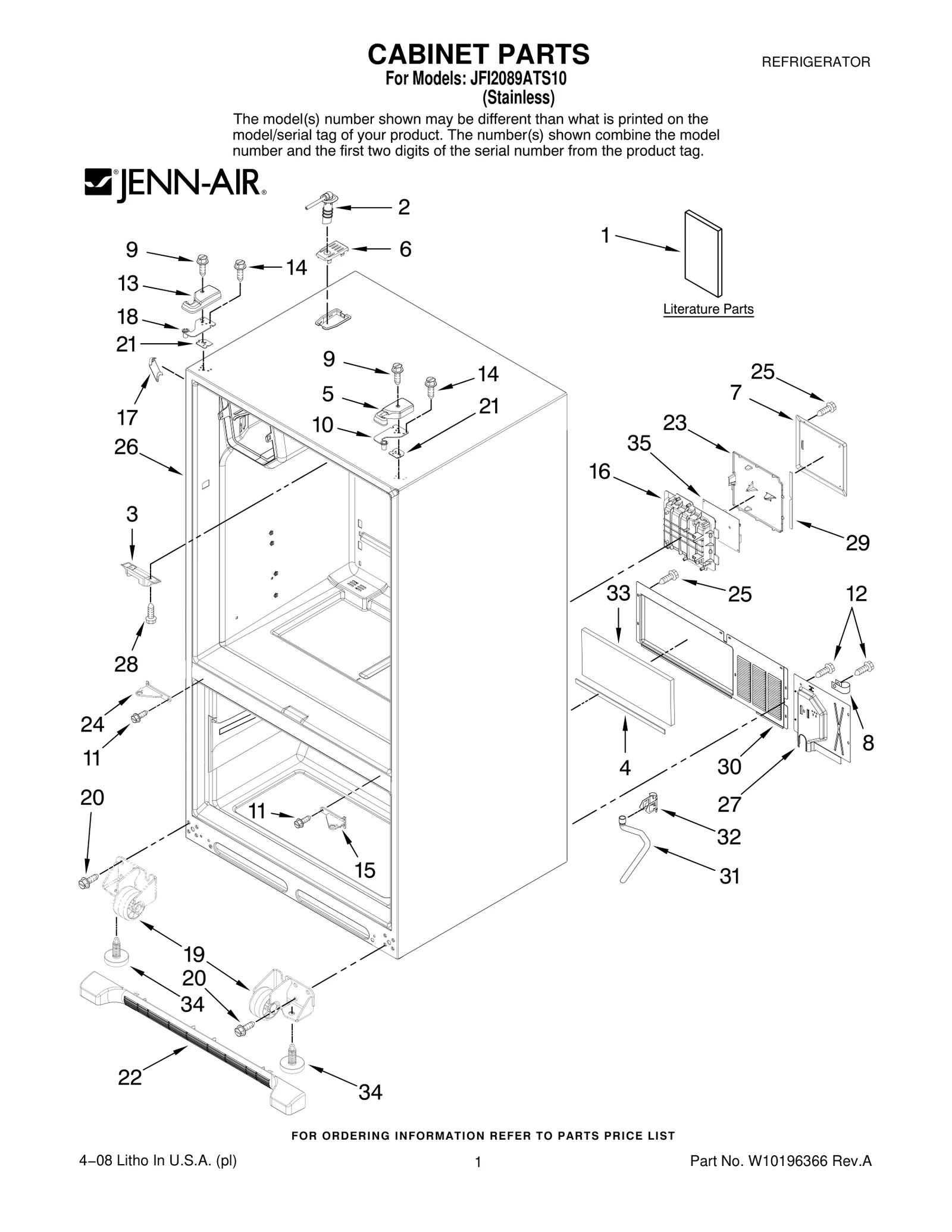

CABINET PARTS
Parts in CABINET PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10189628 Tech Sheet | - |
| 1 | – | W10189629 Use & Care Guide | - |
| 1 | – | W10184475 Guide, Energy | - |
| 1 | – | 16026312 Service Manual | - |
| 2 |  | W11415785replaces 67006317 Tube W/Waterline, Fill−IM | $37.76 Part Advantage |
| 3 |  | WP67003405replaces 67003405 Block, Pivot | $3.55 Part Advantage |
| 4 | – | B5759649 Gasket, MC Back | - |
| 5 |  | WP67005956replaces 67005956 Cover, Top Hinge — Black | - |
| 6 |  | 12981401Breplaces 67006320 Cover, Fill Tube — Black | - |
| 7 |  | Cover, Control Box | - |
| 8 |  | W10833902replaces M0108105 Clamp, Tube | $2.97 RepairClinic |
| 9 |  | WP8281196replaces 67006521 Screw, Hinge Cover | $9.62 PartSelect |
| 10 |  | W11592374replaces 67005955 Hinge, Top Right | $9.21 Part Advantage |
| 11 |  | WP67006380replaces 67006380 Screw, Center Hinge | $21.46 ApplianceParts Pro |
| 12 |  | Screw (3) | $2.30 Part Advantage |
| 13 |  | W10337647replaces 67005951 Cover, Top Hinge — Black | - |
| 14 |  | WP489349replaces 67006303 Screw, Top Hinge | $2.30 Part Advantage |
| 15 |  | W10918164replaces 67006443 Hinge, Center (RT) — Black | $49.48 Parts Dr |
| 16 |  | WP67006390replaces 67006390 Box, HV Control | $21.46 ApplianceParts Pro |
| 17 |  | Cover, Corner (2) — Black | - |
| 18 |  | W11592375replaces 67005950 Hinge, Top Left | $11.17 Parts Dr |
| 19 |  | WPW10515762replaces W10130459 Roller Assy. — Right | $36.26 Part Advantage |
| 19 |  | WPW10515763replaces W10130460 Roller Assy. — Left | $36.59 Part Advantage |
| 20 |  | Screw (8) | $3.74 Parts Dr |
| 21 |  | 12999501replaces 67006308 Shim, Top Hinge — Left | $34.57 Parts Dr |
| 21 |  | 12999502replaces 67006309 Shim, Top Hinge — Right | $50.57 ApplianceParts Pro |
| 22 |  | Grille, Toe — Black | Discontinued |
| 23 | | Lid, HV Control | - |
| 24 |  | Hinge, Center (LT) — Black | - |
| 25 |  | W11686675replaces 12990702 Screw, Cover | $9.80 Parts Dr |
| 26 | – | N/S Cabinet (Not A Servicable Part) | - |
| 27 | – | 67006426 Cover, Water Valve | - |
| 28 |  | W11233072replaces 67006626 Screw, Block | $8.78 Part Advantage |
| 29 | | Gasket, HV Control | - |
| 30 | – | 12575101ED Cover, MC Back | - |
| 31 |  | Tube, Drain | - |
| 32 | | Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 33 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 34 |  | WPW10141622replaces W10141622 Brake, Foot | $3.55 Part Advantage |
| 35 |  | WPW10310240replaces W10191108 Board, HV Control | $246.70 PartSelect |
