Model
KitchenAid KBFC42FSS00
42" Bottom Mount Built In Refrigerator
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBFC42FSS0042" Bottom Mount Built In Refrigerator
11 diagrams298 parts

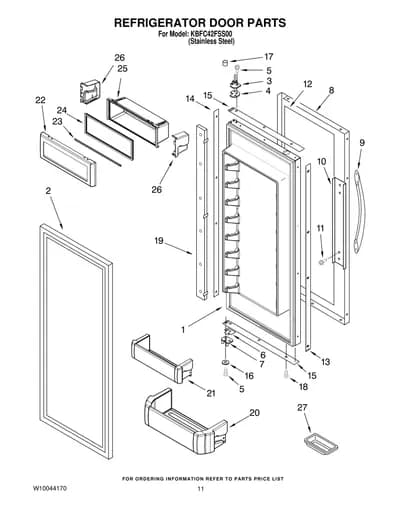

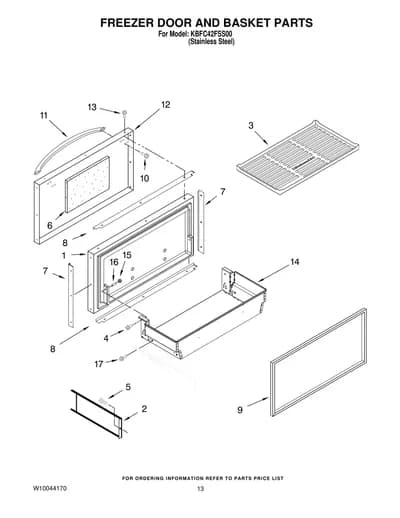

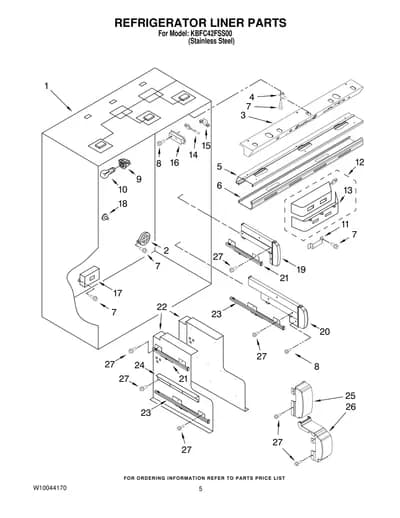

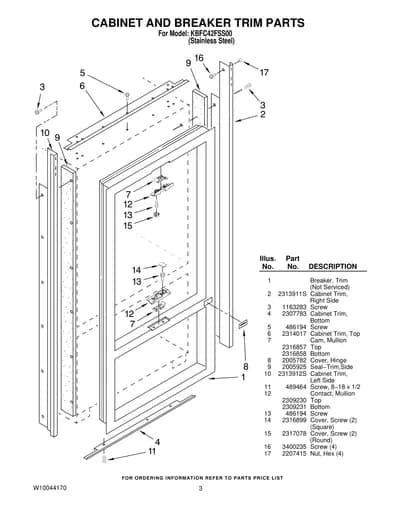

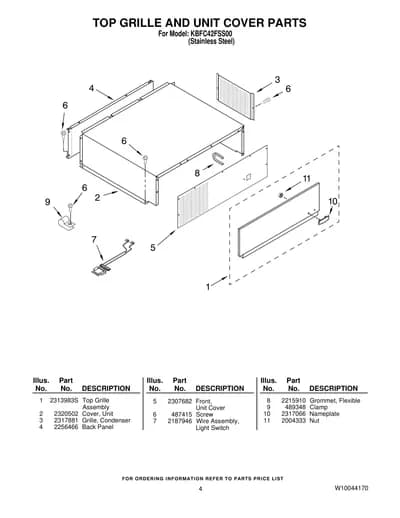

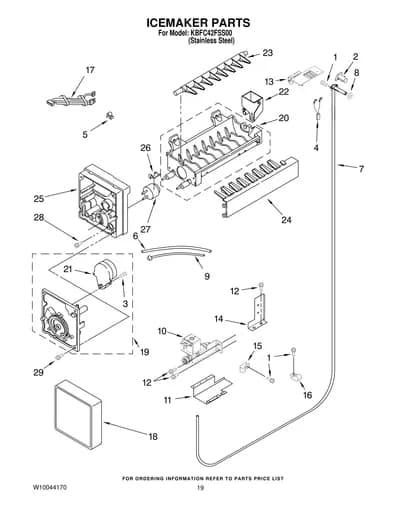

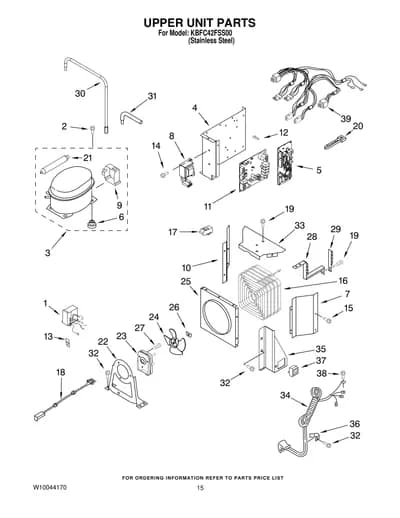

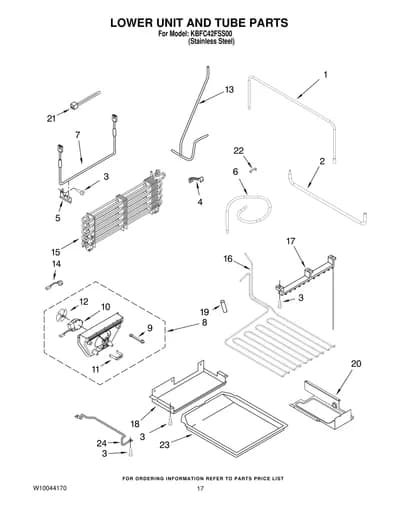

Parts Sections (11)
Diagram

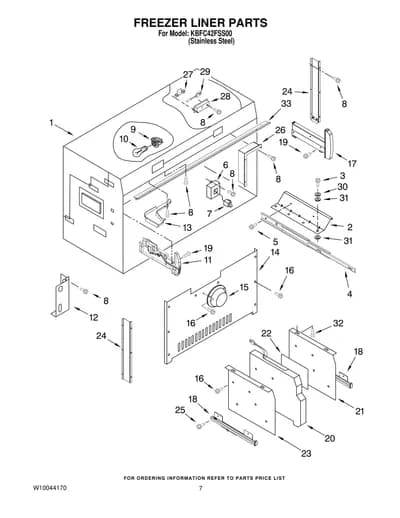

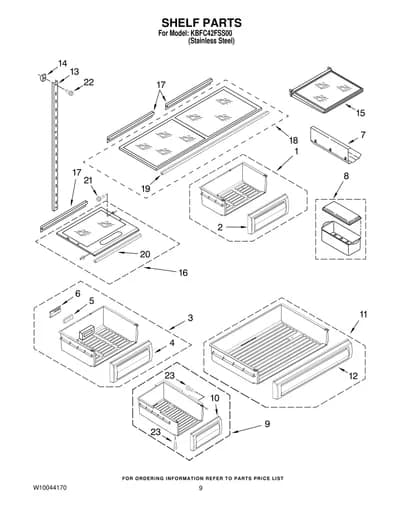

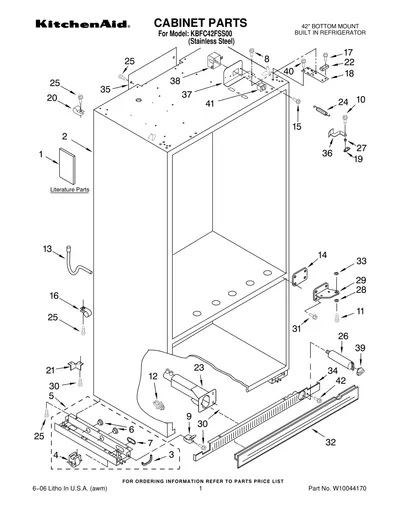

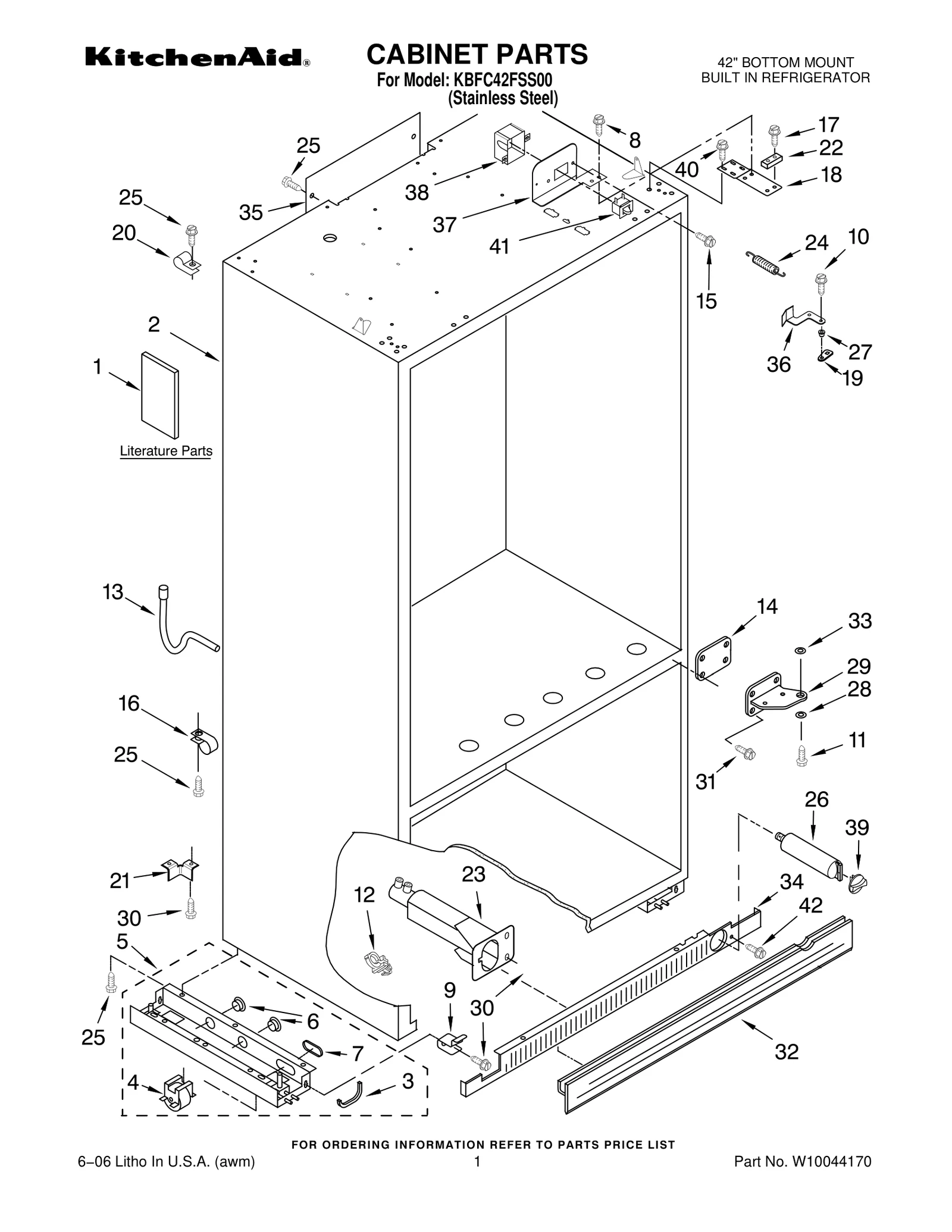

CABINET PARTS
Parts in CABINET PARTS
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2317821 Use & Care Guide | - |
| 1 | – | 2309317 Energy Label | - |
| 1 | – | 2316852 Service & Wiring Sheet | - |
| 1 | – | 2317849 Main Control Service Sheet | - |
| 1 |  | 2317840NLA Modular Icemaker Service Sheet | Discontinued |
| 1 | – | 2309309 Installation Instructions | - |
| 2 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 3 | – | 2005004 Grommet, Crossover Tube | - |
| 4 |  | WPW10138054replaces 1112023 Roller, Front & Rear (4) | $14.09 Part Advantage |
| 5 |  | W10860448replaces 2004506 Support, Leveler Assembly — Refrigerator Side | $138.94 Parts Dr |
| 5 |  | W10860229replaces 2004505 Support, Leveler Assembly — Freezer Side | $174.25 Parts Dr |
| 6 | – | 2005006 Grommet, Wiring | - |
| 7 | | 2005007NLA Grommet, Flexible | Discontinued |
| 8 |  | WP8281164replaces 8281164 Screw | $4.17 Part Advantage |
| 9 | | Mounting Bracket, Grill | - |
| 10 |  | W11177574replaces W10004850 Screw | $9.95 ApplianceParts Pro |
| 11 | | Screw | - |
| 12 | | 2004514NLA Clamp | Discontinued |
| 13 |  | Tube, Drain | $33.54 Parts Dr |
| 14 |  | Shim−Hinge, Door | $28.67 ApplianceParts Pro |
| 15 |  | WP965173replaces 487415 Screw, 8−18 x 3/8 | $6.77 ApplianceParts Pro |
| 16 |  | WP488366replaces 2208136 Clamp, Tube | $5.75 Parts Dr |
| 17 |  | W11227370replaces W10005070 Screw, Door Stop | $10.70 Parts Dr |
| 18 |  | W11218690replaces 2316759 Hinge, Door Refrigerator Top | $30.97 Parts Dr |
| 19 | | Cam−Closer, Door | - |
| 20 |  | W10833902replaces 2221070 Clamp, Tube | $2.97 RepairClinic |
| 21 |  | Bracket, Support Door | - |
| 22 |  | W11403572replaces 2316758 Stop, Door | $28.36 Parts Dr |
| 23 |  | WP2209022replaces 2209022 Housing, Water Filter | $93.40 Part Advantage |
| 24 | | Spring, Door Closure | - |
| 25 |  | W11624204replaces 486194 Screw | $8.95 ApplianceParts Pro |
| 26 |  | EDR5RXD1replaces 2255709 Filter, Water | $46.87 Part Advantage |
| 27 |  | WP2316859replaces 2316859 Bushing−Arm, Extension | $22.99 Part Advantage |
| 28 |  | WP2004994replaces 2004994 Bushing, Hinge (2) | $5.01 Parts Dr |
| 29 |  | W10337505replaces 2302889 Hinge, Bottom Refrigerator Door | $65.33 Parts Dr |
| 30 |  | WP489464replaces 489464 Screw, 8−18 x 1/2 | $9.62 PartSelect |
| 31 |  | W11474472replaces 489282 Screw | $2.30 Part Advantage |
| 32 | | 2209025BNLA Skirt, Grille | Discontinued |
| 33 | | Bushing, Hinge (2) | - |
| 34 | | 2316607BNLA Grille Base, Front | Discontinued |
| 35 | | Cover, Air Duct | - |
| 36 |  | W10847927replaces 2266882 Arm, Extension — Right | $41.33 Parts Dr |
| 36 |  | W11298172replaces 2266881 Arm, Extension — Left | - |
| 37 |  | W10741111replaces 2221097 Bracket, Switch — Right | $24.23 ApplianceParts Pro |
| 37 | | Bracket, Switch — Left | $21.86 RepairClinic |
| 38 |  | Cover, Switch | $21.41 RepairClinic |
| 39 |  | WP2186494Breplaces 2186494B Cap, Water Filter | $19.35 Part Advantage |
| 40 | | W11721628replaces 8533913 Screw | $10.37 ApplianceParts Pro |
| 41 |  | W11384469replaces 1118894 Switch, Rocker Arm (2) | $14.41 Part Advantage |
| 42 | | WP489464replaces W10005050 Screw, 8−18 x 1/2 | $9.62 PartSelect |
