KitchenAid KBRO36FTX03
36" Bottom Mount Built In Refrigerator
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KBRO36FTX0336" Bottom Mount Built In Refrigerator
11 diagrams280 parts

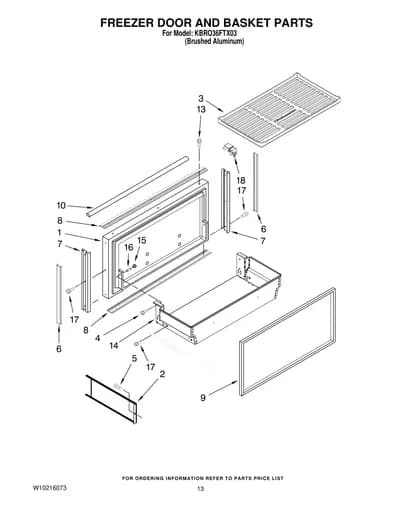

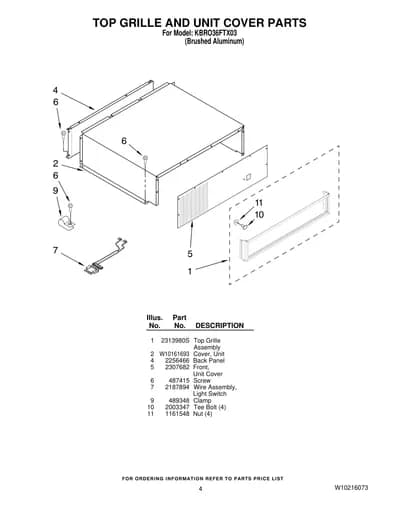

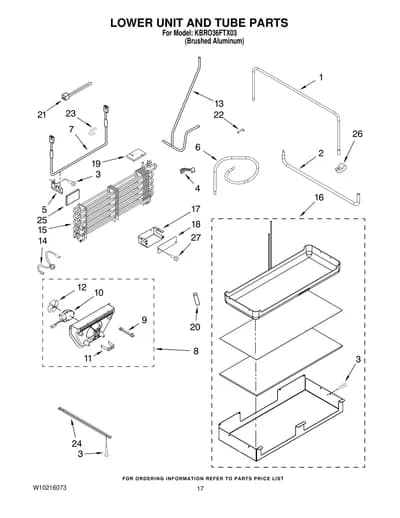

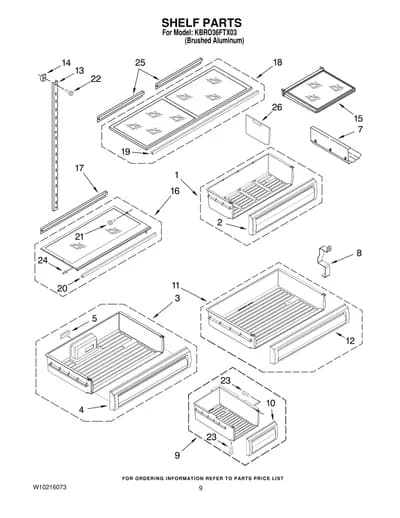

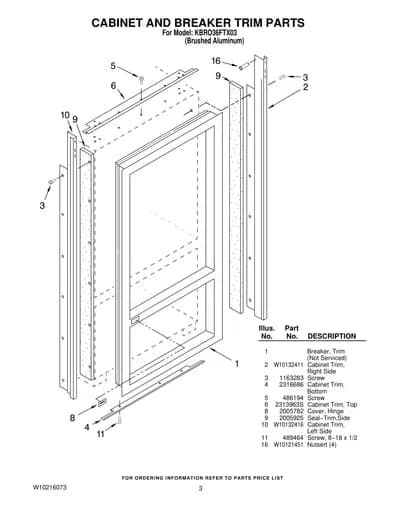

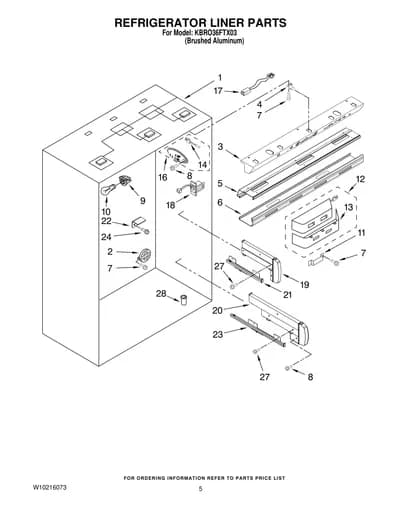

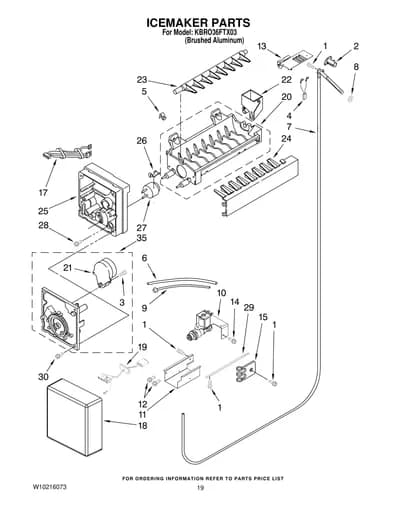

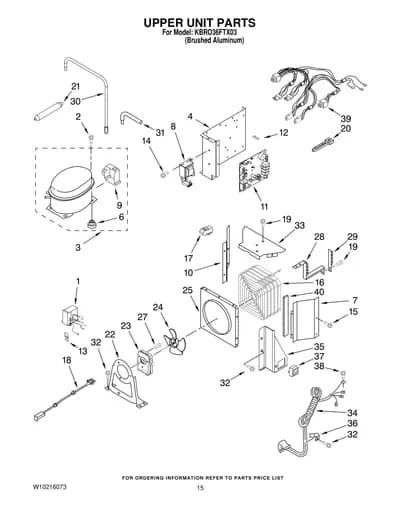

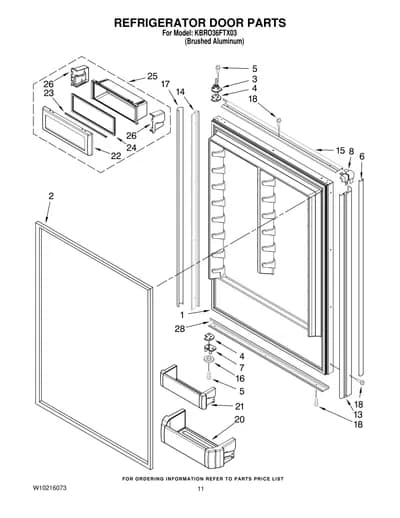

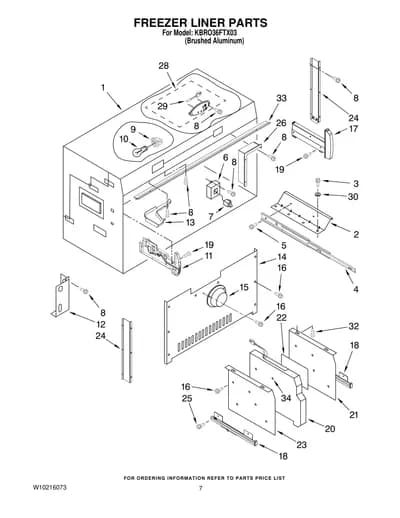

Parts Sections (11)
Diagram

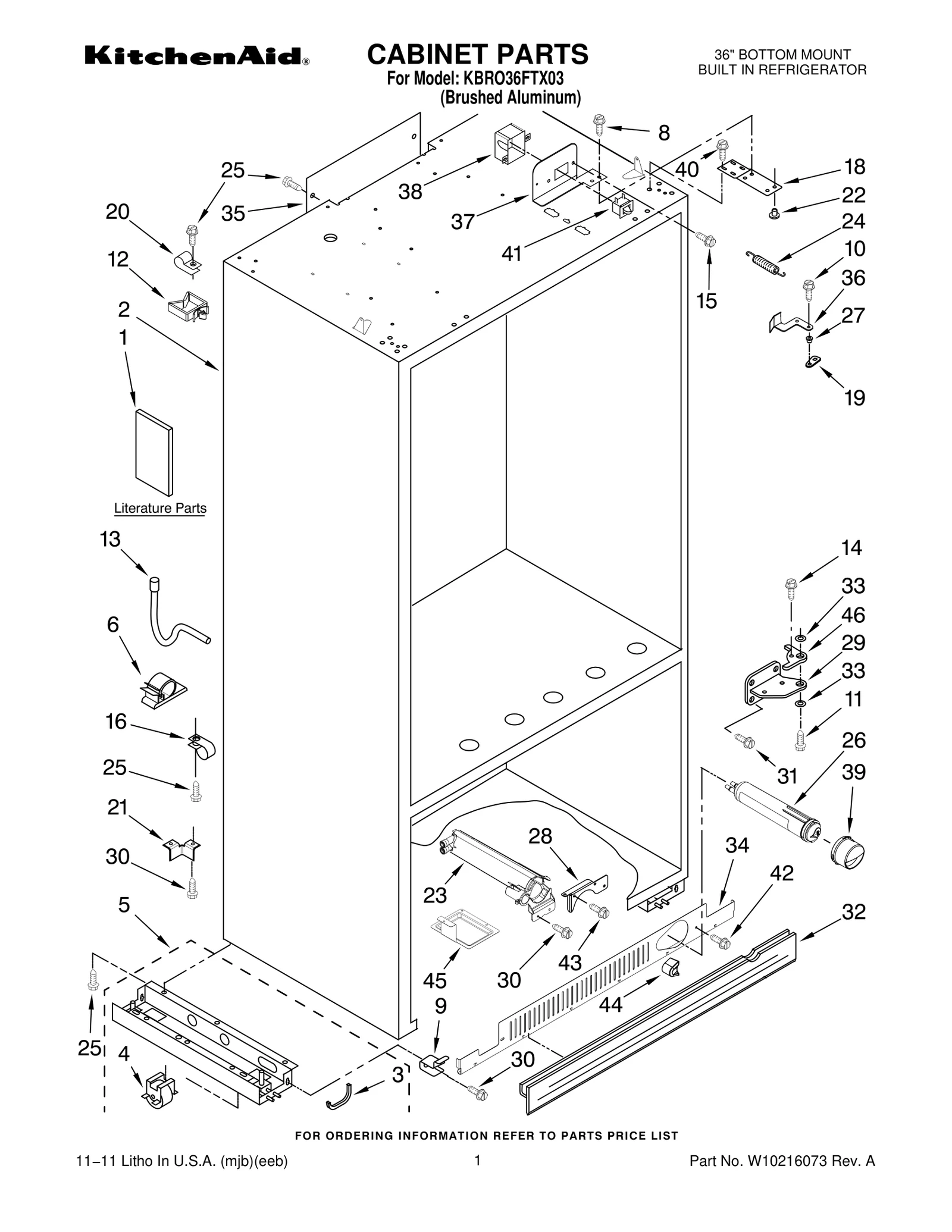

CABINET PARTS
Parts in CABINET PARTS
50 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 2320682NLA Use & Care Guide | Discontinued |
| 1 | – | W10205623 Energy Guide | - |
| 1 | – | W10159833 Service & Wiring Sheet | - |
| 1 | – | 2324934 Main Control Service Sheet | - |
| 1 | | 628370NLA Modular Icemaker Service Sheet | Discontinued |
| 1 | – | 2320680 Installation Instructions | - |
| 2 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 3 |  | Grommet, Crossover Tube | - |
| 4 |  | WPW10138054replaces W10138054 Roller, Front & Rear (4) | $14.09 Part Advantage |
| 5 |  | W10860448replaces W10163493 Support, Leveler Assembly — Right Side | $138.94 Parts Dr |
| 5 |  | W10860229replaces W10163491 Support, Leveler Assembly — Left Side | $174.25 Parts Dr |
| 6 | | 2004514NLA Clip, Conduit | Discontinued |
| 8 |  | WP8281164replaces 8281164 Screw | $4.17 Part Advantage |
| 9 |  | W10839844replaces 2307640 Mounting Bracket, Grill | - |
| 10 | | 2005921NLA Screw | Discontinued |
| 11 | | Screw | $37.26 RepairClinic |
| 12 | – | W10129069 Clip (4) | - |
| 13 |  | Tube, Drain | $33.54 Parts Dr |
| 14 |  | WP8533980replaces 8533980 Screw 8−32 x 7/16 | $30.52 Parts Dr |
| 15 |  | WP965173replaces 487415 Screw, 8−18 x 3/8 | $6.77 ApplianceParts Pro |
| 16 |  | WP488366replaces 2208136 Clamp, Tube | $5.75 Parts Dr |

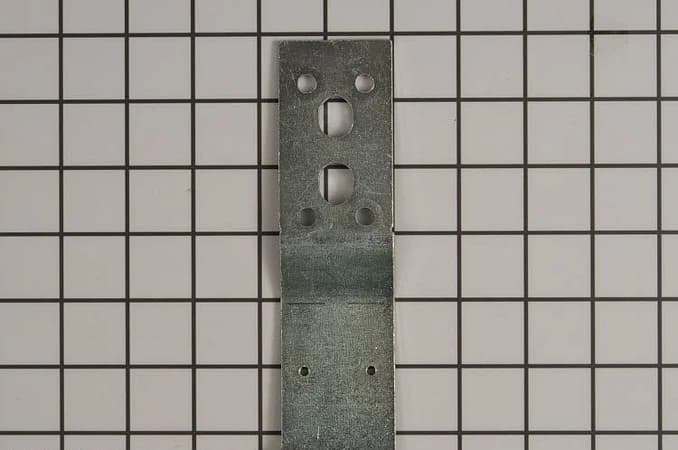

| 18 |  | Hinge, Door Refrigerator Top | - |
| 19 | | 2005783NLA Cam−Closer, Door | Discontinued |
| 20 |  | W10833902replaces 2221070 Clamp, Tube | $2.97 RepairClinic |
| 21 |  | Bracket, Support Door | - |
| 22 | | Bushing | - |
| 23 |  | WPW10121140replaces W10121140 Housing, Water Filter | $102.28 Part Advantage |
| 24 |  | WP2004517replaces 2004517 Spring, Door Closure | $31.40 Part Advantage |
| 25 |  | W11624204replaces 486194 Screw | $8.95 ApplianceParts Pro |
| 26 |  | EDR3RXD1replaces 8212650 Filter, Water | $49.90 Part Advantage |
| 27 |  | WP2316859replaces 2266880 Bushing−Arm, Extension | $22.99 Part Advantage |
| 28 | | W11755873replaces 2318190 Brakcet, Mounting | - |
| 29 |  | Hinge, Bottom Refrigerator Door | - |
| 30 |  | WP489464replaces 489464 Screw, 8−18 x 1/2 | $9.62 PartSelect |
| 31 |  | W11474472replaces W10162602 Screw | $2.30 Part Advantage |
| 32 |  | WP2209024Breplaces 2209024B Skirt, Grille | $85.95 ApplianceParts Pro |
| 33 |  | WP2006346replaces 2006346 Washer | $4.20 Part Advantage |
| 34 |  | WP2325187Breplaces 2325187B Grille Base, Front | - |
| 35 | | Cover, Air Duct | - |
| 36 |  | W11418227replaces 2267192 Arm, Extension | $29.18 ApplianceParts Pro |
| 37 |  | W10741111replaces 2221097 Bracket, Switch | $24.23 ApplianceParts Pro |
| 38 |  | Cover, Switch | $21.41 RepairClinic |
| 39 |  | WP2260518Breplaces 2260518B Cap, Water Filter | $12.11 Part Advantage |
| 40 | | W11721628replaces 8533913 Screw | $10.37 ApplianceParts Pro |
| 41 |  | W11384469replaces 1118894 Switch, Rocker Arm (2) | $14.41 Part Advantage |
| 42 | | WP489464replaces W10005050 Screw, 8−18 x 1/2 | $9.62 PartSelect |
| 43 |  | WP8281163replaces 8281163 Screw, 8−16 x 1/2 | $7.09 RepairClinic |
| 44 |  | WP2260503Breplaces 2260503B Button, Filter | $31.16 Parts Dr |
| 45 |  | Tray, Drip Filter | $37.89 RepairClinic |

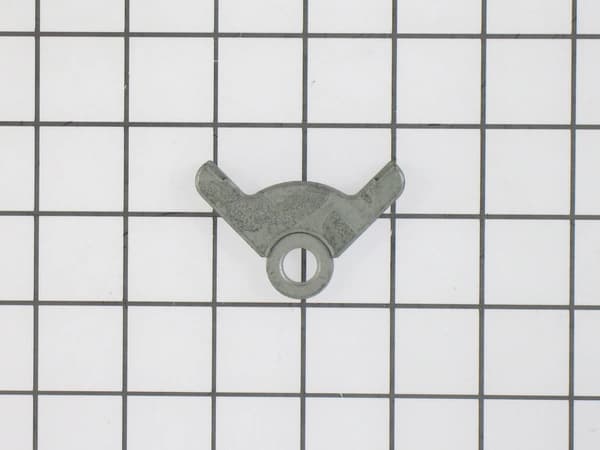

| 46 |  | Gap, Cover BTM | $47.95 ApplianceParts Pro |
