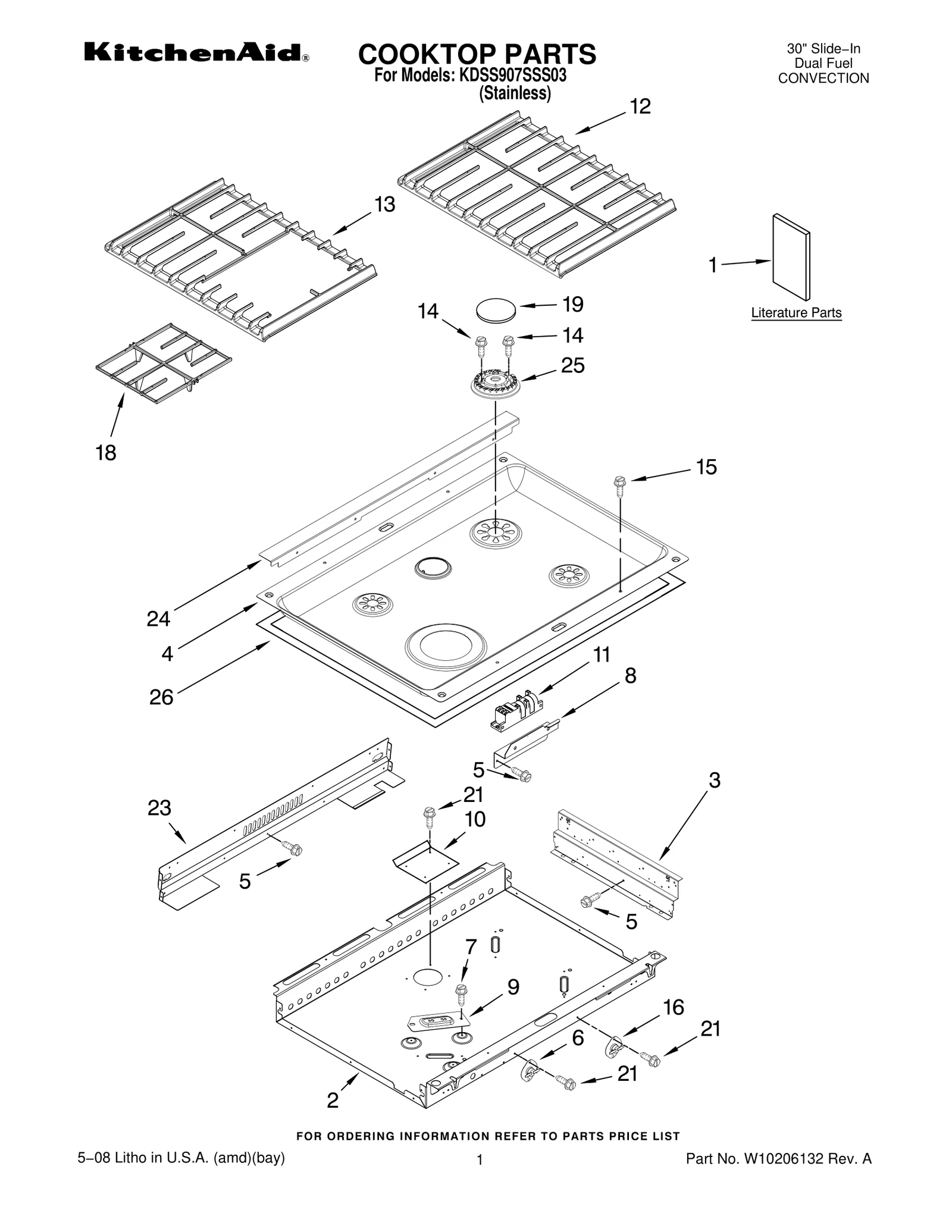

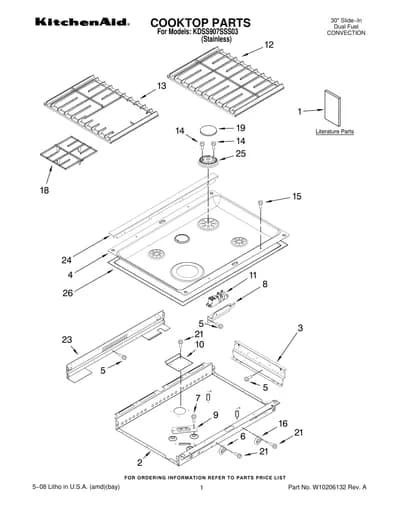

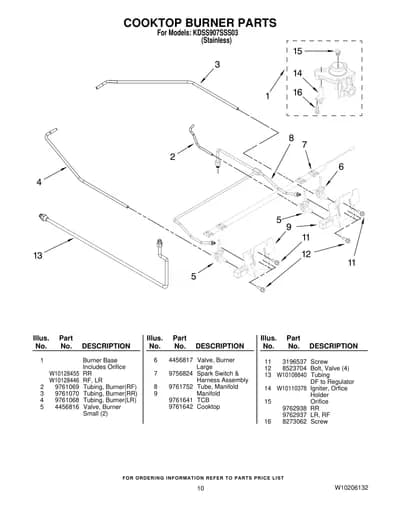

COOKTOP PARTS
Parts in COOKTOP PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10154991 Installation Instructions | - |
| 1 | – | W10162199 Use & Care Guide | - |
| 1 | – | W10112147 Tech Sheet | - |
| 1 | – | 9757680 Anti−Tip Instructions Safe Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 1 | – | 9763467 Guide Easy Set | - |
| 2 | – | W10153103 Burner Box | - |
| 3 |  | Bracket, Mounting | - |
| 4 | | Cooktop | - |
| 5 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 6 |  | WP9757807replaces 9757807 Thermostat | $41.63 Parts Dr |
| 7 |  | WP12990527replaces 3400843 Screw | $2.30 Part Advantage |
| 8 | – | W10108030 Bracket, Spark Module | - |
| 9 | – | 9763445 Bracket, Burner | - |
| 10 | – | 8301084 Shield, Heat | - |
| 11 |  | WPW10110491replaces W10110491 Module, Spark | $108.70 Part Advantage |
| 12 | | 9761555CBNLA Grate, Burner (RH) | Discontinued |
| 13 | | 9761556CBNLA Grate, Burner (LH) | Discontinued |
| 14 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 15 | | Screw | - |
| 16 |  | WP9759944replaces 9759944 Thermostat | $87.40 ApplianceParts Pro |
| 18 |  | WP9761557CBreplaces 9761557CB Grate, Insert | $92.70 Part Advantage |
| 19 |  | 12.5K (RR) | $77.63 RepairClinic |
| 19 |  | WP8284669replaces 8284669 6K (RF, LR) | $51.61 PartSelect |
| 21 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
| 23 | – | 9761755 Cover, Cooktop Rear | - |
| 24 |  | WP9763436replaces 9763436 Cover, Top Rear | - |
| 25 |  | WPW10406797replaces 8286182 Large (RR) | $33.54 Part Advantage |
| 25 |  | WPW10406243replaces 8286181 Small (LR,RF) | $12.98 Part Advantage |
| 26 | | Gasket | - |
