Model
KitchenAid KECC507RSS04
30" Electric Ceran Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KECC507RSS0430" Electric Ceran Cooktop
2 diagrams59 parts
Parts Sections (2)
Diagram

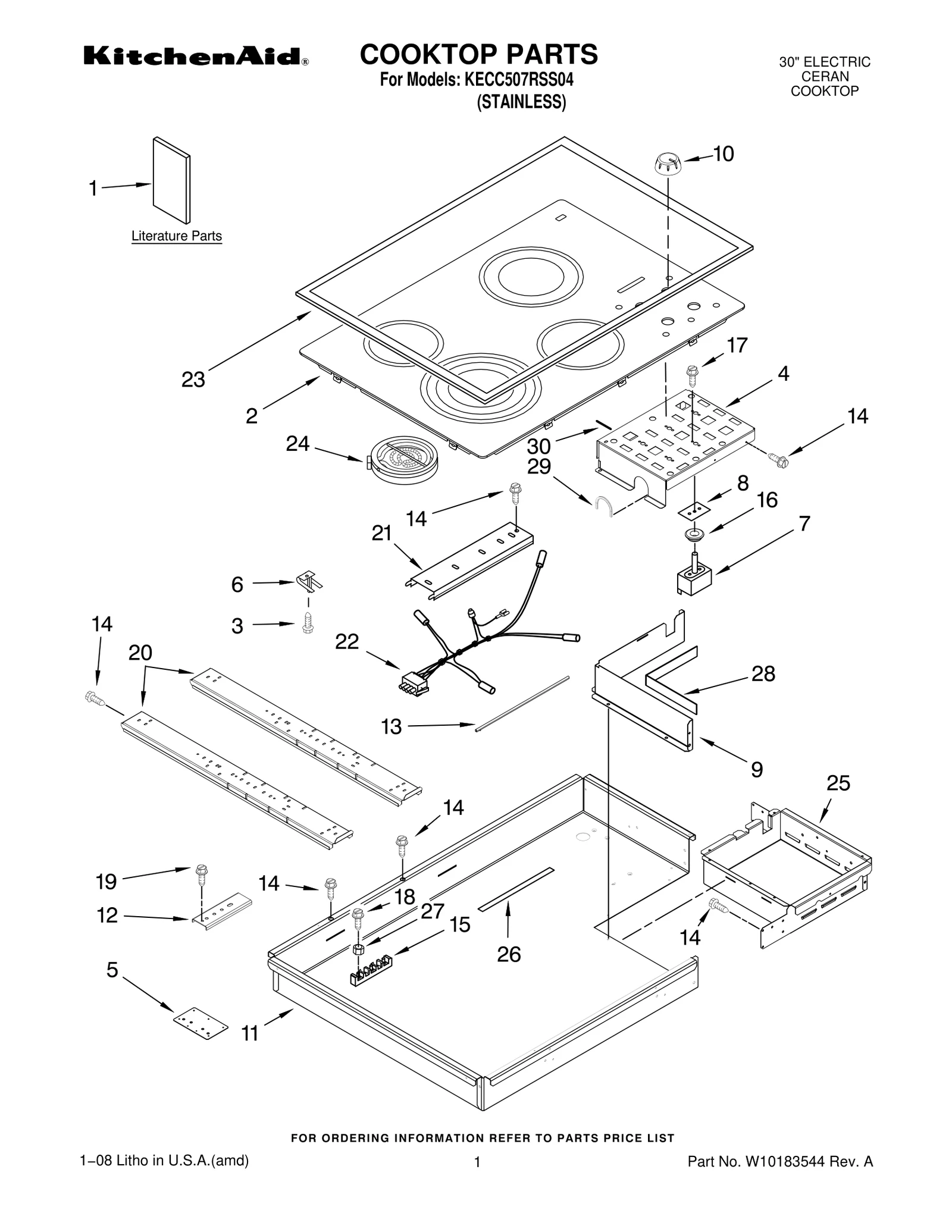

COOKTOP PARTS
Parts in COOKTOP PARTS
40 parts

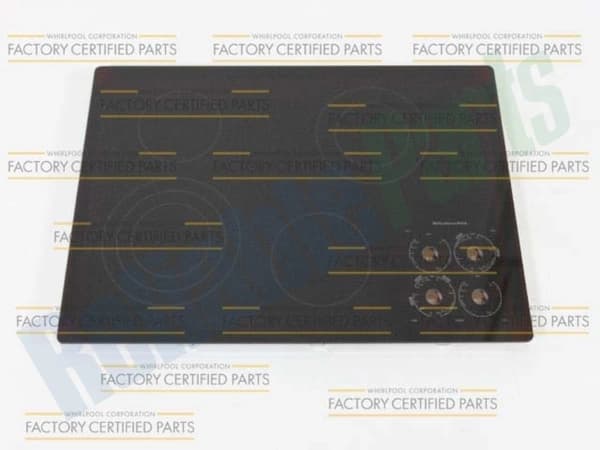

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8286066NLA Installation Instructions — Cooktop | Discontinued |
| 1 | – | 8304571 Installation Instructions — Undercounter Oven | - |
| 1 | – | 8286447 Installation Instructions — Wiring Diagram | - |
| 1 | – | W10162162 Installation Instructions — Use & Care Guide | - |
| 1 | – | 9762761 Installation Instructions — English | - |
| 1 | – | W10065852 Installation Instructions — French | - |
| 2 |  | W10322778replaces 8286959 Cooktop, Glass | $291.14 RepairClinic |
| 3 |  | WP486754replaces 246119 Screw | $5.95 ApplianceParts Pro |
| 4 | – | 8285935 Bracket, Switch Mounting | - |
| 5 | – | 8286535 Bracket, Bottom | - |
| 6 |  | Spring Locator (8) | $7.15 ApplianceParts Pro |
| 7 | | 9763763NLA Single (2) | Discontinued |
| 7 |  | Switch, Infinite — Dual | Discontinued |
| 7 | | 9763765NLA Switch, Infinite — Triple | Discontinued |
| 8 |  | Seal, Switch Shaft | $27.77 Part Advantage |
| 9 | – | 8286577 Wall, Inside | - |
| 10 |  | WP8286096BLreplaces 8286096BL Knob, Control (4) | $11.73 Parts Dr |
| 11 | – | 8286554 Box, Burner | - |
| 12 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 13 |  | Seal, Heat | $24.25 RepairClinic |
| 14 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 15 |  | WP8203546replaces 4449868 Block ,Terminal | $10.04 Part Advantage |
| 16 |  | Seal, Switch | $28.85 Part Advantage |
| 17 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 18 |  | WP3196163replaces 3196163 Screw | $2.30 Part Advantage |
| 19 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 20 | | Rail, Element | - |
| 21 | – | 8286344 Rail, Element | - |
| 22 | | Lamp, Hot Surface Indicator | - |
| 23 | | W10142240NLA Frame, Cooktop | Discontinued |
| 24 |  | W10823711replaces 8523698 Element, Surface — 1200W LR | $92.55 Part Advantage |
| 24 |  | W10823699replaces 8523697 Element, Surface — 1500W RF | $92.39 Parts Dr |
| 24 | | 8285937NLA Element, Surface — 2000/1000W RR | Discontinued |
| 24 |  | WP8286187replaces 8286187 Element, Surface — 2500/1800/900W LF | $190.36 Parts Dr |
| 25 | – | W10180228 Box, Control | - |
| 26 | – | 8285426 Seal, Heat Shield | - |
| 27 |  | WP112432replaces 112432 Nut | $7.43 ApplianceParts Pro |
| 28 | – | 8286599 Inside Wall, Insulation | - |
| 29 | – | 8286607 Grommet, Flexible (2) | - |
| 30 |  | W10491984replaces 3192439 Seal, Limiter | $6.20 Parts Dr |
