Model
KitchenAid KECC567RBL04
36" Electric Ceran Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KECC567RBL0436" Electric Ceran Cooktop
2 diagrams52 parts
Parts Sections (2)

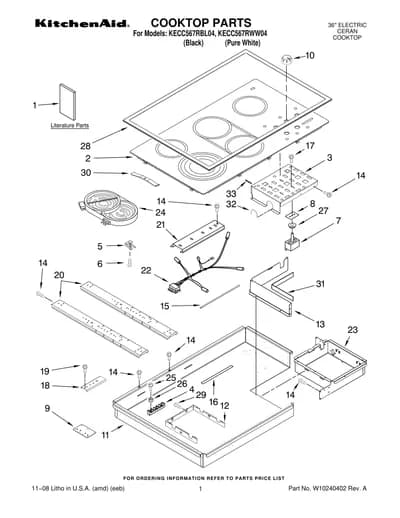

Diagram
COOKTOP PARTS
Parts in COOKTOP PARTS
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8286066NLA Installation Instructions — Cooktop | Discontinued |
| 1 | – | 8304571 Installation Instructions — Undercounter Oven | - |
| 1 | – | 8286430 Installation Instructions — Wiring Diagram | - |
| 1 | – | 8286062 Installation Instructions — Energuide Label | - |
| 1 | – | 8286608 Installation Instructions — Use & Care Guide | - |
| 1 | | 3191638NLA Installation Instructions — English | Discontinued |
| 1 | – | 9759133 Installation Instructions — French | - |
| 2 | | Cooktop, Glass — Black | Discontinued |
| 2 | | 8286973NLA Cooktop, Glass — White | Discontinued |
| 3 | – | 8285808 Bracket, Switch | - |
| 4 |  | WP8203546replaces 4449868 Block, Terminal | $10.04 Part Advantage |
| 5 |  | Spring Locator(10) | $7.15 ApplianceParts Pro |
| 6 |  | WP486754replaces 246119 Screw (10) | $5.95 ApplianceParts Pro |
| 7 | | 9763763NLA Single (3) | Discontinued |
| 7 |  | Switch, Infinite — Dual | Discontinued |
| 7 | | 9763765NLA Switch, Infinite — Triple | Discontinued |
| 8 |  | Seal, Switch Shaft | $27.77 Part Advantage |
| 9 | – | 8286535 Bracket, Bottom | - |
| 10 |  | WP8286096BLreplaces 8286096BL Knob, Control (5) — Black | $11.73 Parts Dr |
| 10 |  | Knob, Control (5) — White | - |
| 11 | – | 8286555 Box, Burner | - |
| 12 | – | 9760762 Shield, Heat | - |
| 13 | – | 8286578 Inside, Wall | - |
| 14 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 15 | | Seal, Heat | - |
| 16 | | Seal, Heat Shield | - |
| 17 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 18 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 19 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 20 | | Rail, Element | - |
| 21 | – | 8286345 Rail, Element | - |
| 22 | – | 8286056 Lamp, Hot Surface Indicator | - |
| 23 | – | 8286574 Box, Control | - |
| 24 |  | W10823695replaces 8285848 4300W (Bridge) | $183.03 Parts Dr |
| 24 |  | WP8286187replaces 8286187 Element, Surface — 2500/1800/900W LF | $190.36 Parts Dr |
| 24 |  | W10823711replaces 8523698 Element, Surface — 1200W LR | $92.55 Part Advantage |
| 24 |  | W10823699replaces 8523697 Element, Surface — 1500W RR | $92.39 Parts Dr |
| 25 |  | WP3196163replaces 3196163 Screw | $2.30 Part Advantage |
| 26 |  | WP112432replaces 112432 Nut | $7.43 ApplianceParts Pro |
| 27 |  | Seal, Switch — Black | $28.85 Part Advantage |
| 27 | – | 8286596 Seal, Switch — White | - |
| 28 | | W10142239NLA Frame, Cooktop | Discontinued |
| 29 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
| 30 | | Spring Clip, Bridge (3) | - |
| 31 | – | 8286600 Inside Wall, Insulation | - |
| 32 | – | 8286607 Gromment, Flexible (2) | - |
| 33 |  | W10491984replaces 3192439 Seal, Limiter | $6.20 Parts Dr |
