KitchenAid KORU06RSSS00
Refrigerator
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKitchenAid
KORU06RSSS00Refrigerator
3 diagrams84 parts
Parts Sections (3)
Diagram

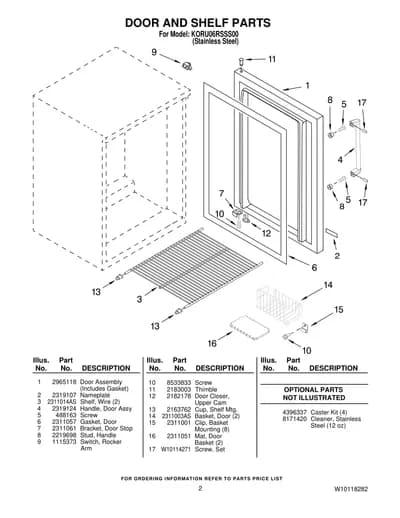

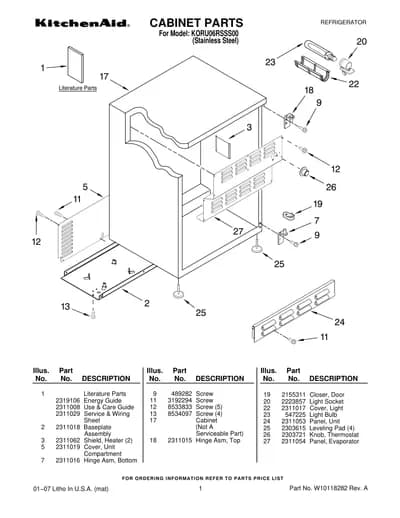

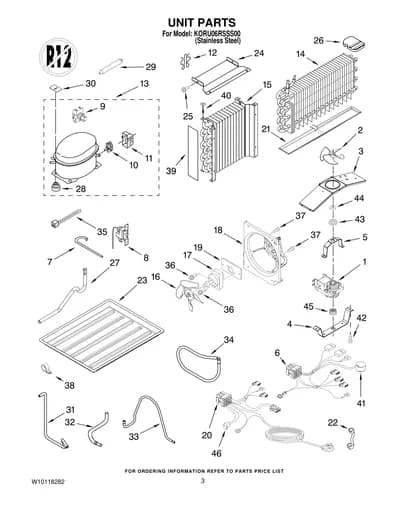

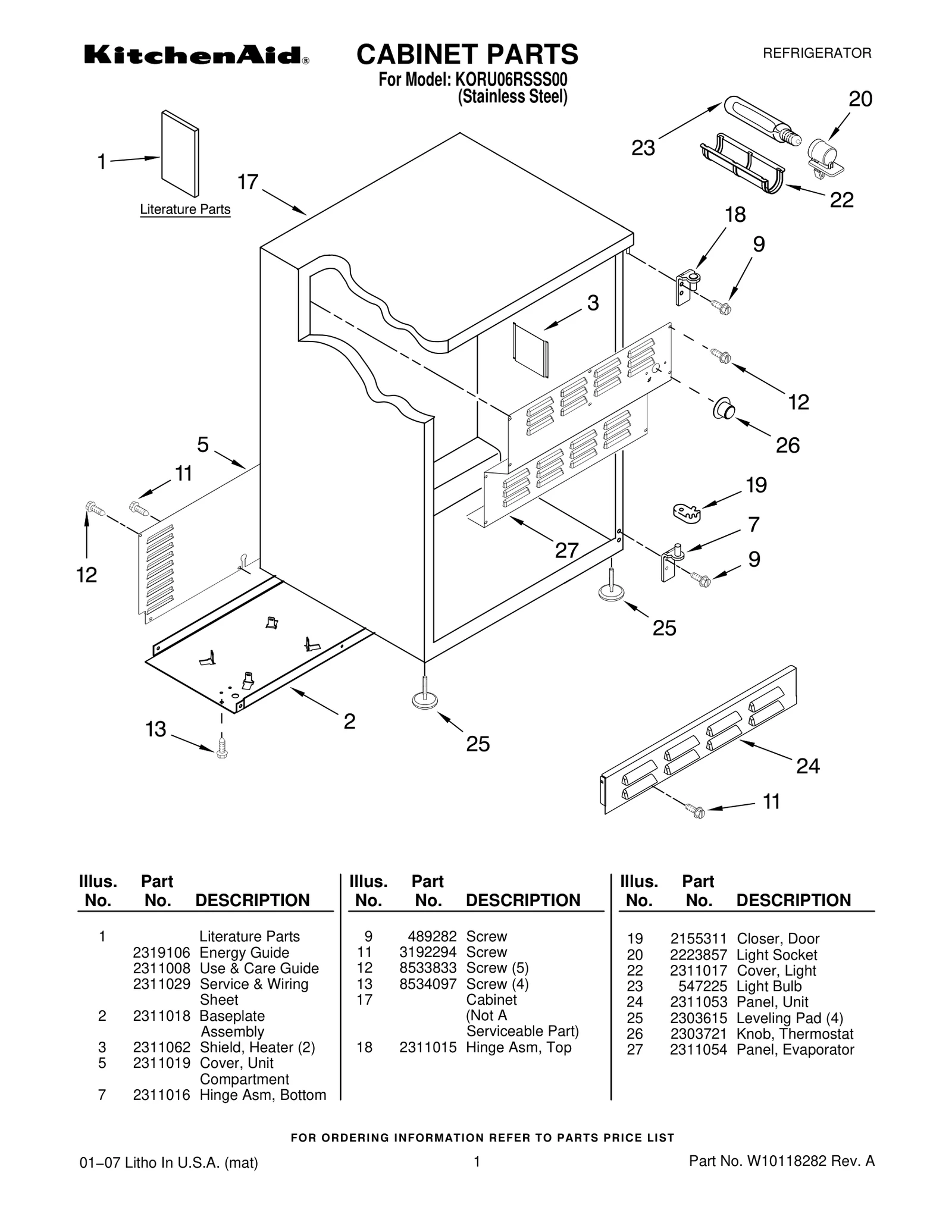

CABINET PARTS
Parts in CABINET PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 2319106 Energy Guide | - |
| 1 |  | WPW10339442replaces 2311008 Use & Care Guide | $9.50 Part Advantage |
| 1 | – | 2311029 Service & Wiring Sheet | - |
| 2 | – | 2311018 Baseplate Assembly | - |
| 3 |  | W10343322replaces 2311062 Shield, Heater (2) | $36.63 RepairClinic |
| 5 | – | 2311019 Cover, Unit Compartment | - |
| 7 |  | Hinge Asm, Bottom | - |
| 9 |  | W11474472replaces 489282 Screw | $2.30 Part Advantage |
| 11 | – | 3192294 Screw | - |
| 12 | – | 8533833 Screw (5) | - |
| 13 | | 8534097NLA Screw (4) | Discontinued |
| 17 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 18 | – | 2311015 Hinge Asm, Top | - |
| 19 |  | WPW10329686replaces 2155311 Closer, Door | $3.29 Part Advantage |
| 20 |  | WPW10191429replaces 2223857 Light Socket | $2.41 Part Advantage |
| 22 | – | 2311017 Cover, Light | - |
| 23 |  | WP548049replaces 547225 Light Bulb | $46.35 ApplianceParts Pro |
| 24 | – | 2311053 Panel, Unit | - |
| 25 | | Leveling Pad (4) | - |
| 26 | | Knob, Thermostat | - |
| 27 | – | 2311054 Panel, Evaporator | - |
