Model
Maytag MDB8851AWS41
Undercounter Dishwasher
Parts Sections (14)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
MDB8851AWS41Undercounter Dishwasher
14 diagrams151 parts
Parts Sections (14)
Diagram

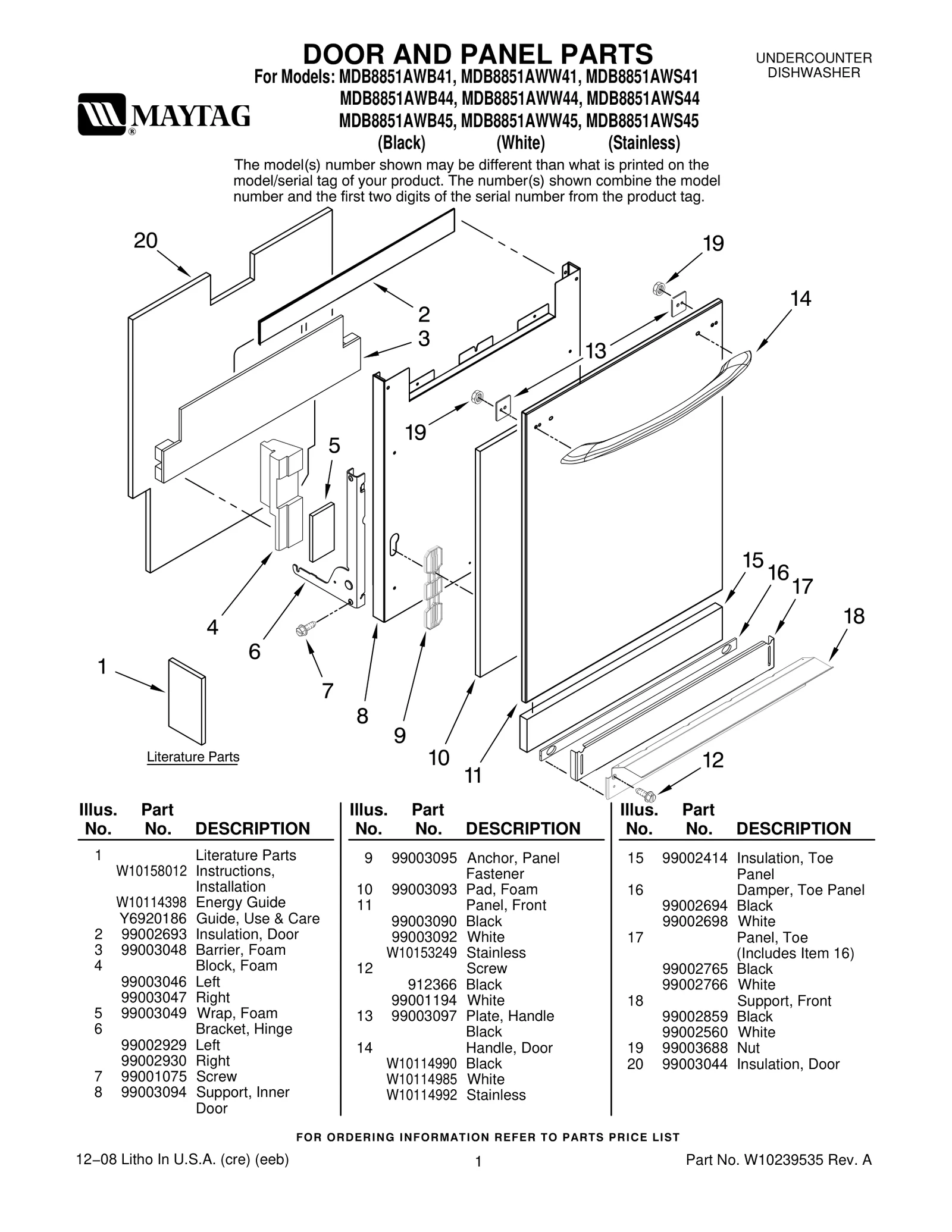

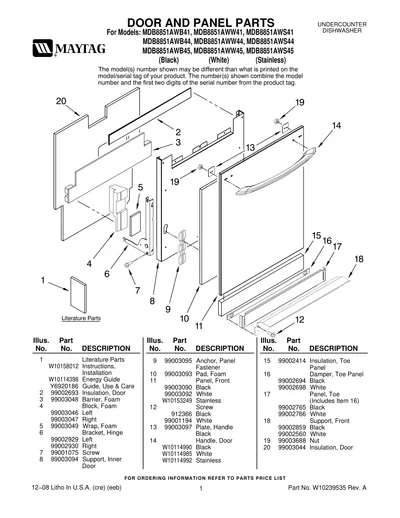

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10158012 Instructions, Installation | - |
| 1 | – | W10114398 Energy Guide | - |
| 1 |  | Y6920186NLA Guide, Use & Care | Discontinued |
| 2 | – | 99002693 Insulation, Door | - |
| 3 | – | 99003048 Barrier, Foam | - |
| 4 | – | 99003046 Block, Foam — Left | - |
| 4 | – | 99003047 Block, Foam — Right | - |
| 5 | – | 99003049 Wrap, Foam | - |
| 6 | | WPW10118638replaces 99002929 Bracket, Hinge — Left | - |
| 6 |  | WPW10118637replaces 99002930 Bracket, Hinge — Right | $110.42 ApplianceParts Pro |
| 7 | | 99001075NLA Screw | Discontinued |
| 8 | – | 99003094 Support, Inner Door For Models: MDB8851AWB41, MDB8851AWW41, MDB8851AWS41 (Black) (White) (Stainless) MDB8851AWB44, MDB8851AWW44, MDB8851AWS44 MDB8851AWB45, MDB8851AWW45, MDB8851AWS45 | - |
| 9 | – | 99003095 Anchor, Panel Fastener | - |
| 10 | | 99003093NLA Pad, Foam | Discontinued |
| 11 | – | 99003090 Panel, Front — Black | - |
| 11 | – | 99003092 Panel, Front — White | - |
| 11 | | W10153249NLA Panel, Front — Stainless | Discontinued |
| 12 |  | WP6-912366replaces 912366 Screw — Black | $5.95 ApplianceParts Pro |
| 12 | – | 99001194 Screw — White | - |
| 13 |  | W10167659replaces 99003097 Plate, Handle Black | - |
| 14 | | W10114990NLA Handle, Door — Black | Discontinued |
| 14 | | W10114985NLA Handle, Door — White | Discontinued |
| 14 | | Handle, Door — Stainless | - |
| 15 |  | WP6-920587replaces 99002414 Insulation, Toe Panel | $4.73 ApplianceParts Pro |
| 16 | | 99002694NLA Damper, Toe Panel — Black | Discontinued |
| 16 | – | 99002698 Damper, Toe Panel — White | - |
| 17 | | 99002765NLA Panel, Toe — Black | Discontinued |
| 17 | – | 99002766 Panel, Toe — White | - |
| 18 | – | 99002859 Support, Front — Black | - |
| 18 |  | Support, Front — White | Discontinued |
| 19 | | 99003688NLA Nut | Discontinued |
| 20 | – | 99003044 Insulation, Door | - |
