Model

Maytag MED6400TB0

Name: Maytag MED6400TB0
Brand: Maytag
Availability: InStock

29"Electric Dryer

Parts Sections (4)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelMaytag

MED6400TB029"Electric Dryer

4 diagrams134 parts

Parts Sections (4)

Diagram

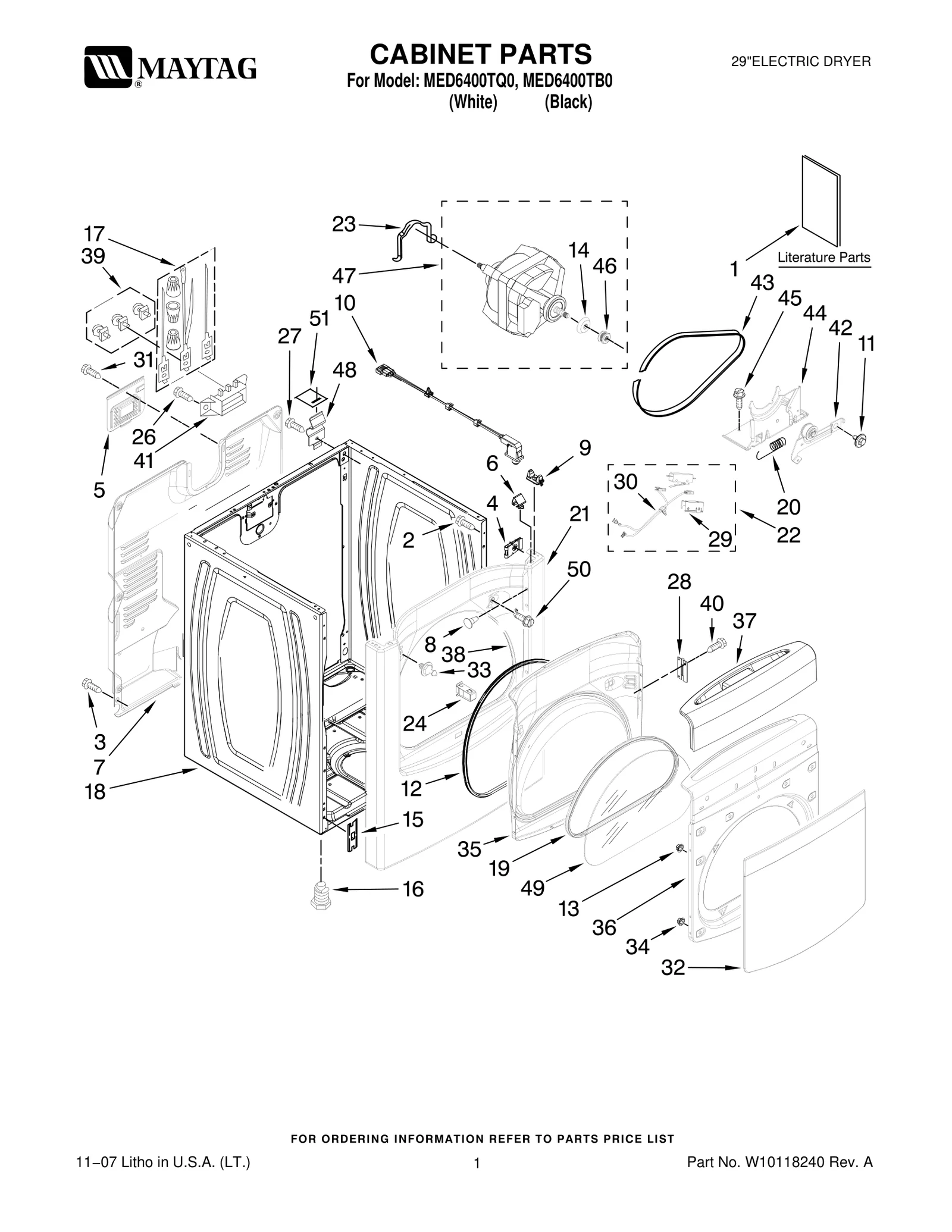

CABINET PARTS

Parts in CABINET PARTS

61 parts

Parts list for CABINET PARTS
Ref	Image	Part / Description	Best Price
1	–	W10114194 Tech Sheet	-
1	–	W10114206 Guide, Quick Start	-
1	–	W10088777 Use & Care Guide	-
2		WP681414replaces 343641 Screw, 10−16 x 1/2	$2.30 Part Advantage
3		WP489069replaces 693995 Screw, 8−18 x 3/8	$2.30 Part Advantage
4		W10007520 Clip, Ground (2)	-
5		WPW10110241replaces W10110241NLA Cover, Block	Discontinued
6		WP8576625replaces 8576625 Lock−Top Front (2)	$4.98 Parts Dr
7		8558830NLA Panel, Rear	Discontinued
8		WP3404413replaces 3404413 Plug−Hole — White	$3.59 Parts Dr
8		3404416NLA Plug−Hole — Black	Discontinued
9		WP8568303replaces 8568303 Locator, Snap Down	-
10		W10702726replaces 3978977 Door Switch Assembly	$41.09 Part Advantage
11		WP3389420replaces 3389420 Retainer, Idler	$5.00 RepairClinic
12		W10239307replaces 8575027 Seal, Door	$26.73 Part Advantage

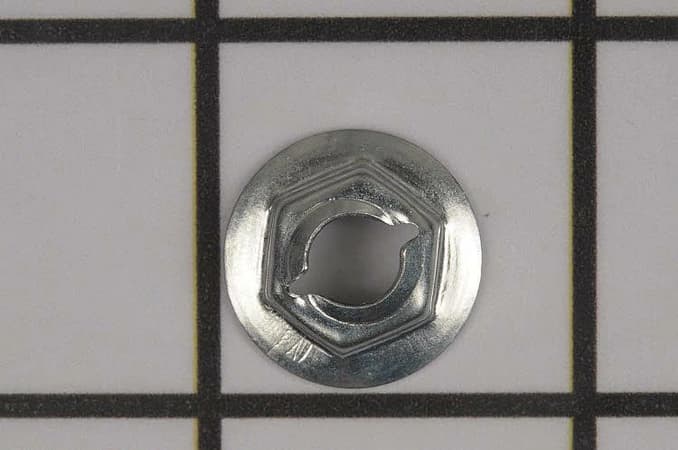

13		WP488627replaces 342055 Pal Nut (4)	$3.90 Part Advantage
14		8578538 Restrainer, Belt	-
15		W10854425replaces 3394083 Clip, Front Panel (2)	$5.94 Part Advantage
16		49621replaces 3392100 Foot, Dryer	$2.20 Part Advantage
16		49621replaces 279810 Foot−Optional (Extended Length Package of 2)	$2.20 Part Advantage
17		279318 Terminal, Tinned & Brass (3)	$40.29 Part Advantage
18	–	8557569 Cabinet — White	-
18	–	W10045390 Cabinet — Black	-
19		W10076060NLA Gasket, Inner Door	Discontinued
20		WPW10446781replaces 3387374 Spring, Idler	$6.97 Part Advantage
21		8565029NLA Panel, Front — White	Discontinued
21		8565032NLA Panel, Front — Black	Discontinued
22		WP8566208replaces 8566208 Switch Assembly	$35.78 Parts Dr
23		WP660658replaces 660658 Clamp, Motor	$2.86 Part Advantage
24		WPW10111905replaces 8572982 Catch, Door Assembly	$2.34 Part Advantage
26		WP308685replaces 3393008 Screw, 10−16 x 1/2	$2.30 Part Advantage
27		WP3390631replaces 3390631 Screw, 8−18 x 1/2	$2.30 Part Advantage
28		WP8565018replaces 8565018 Hinge, Assembly — White	$56.34 ApplianceParts Pro
28		W10050090NLA Hinge, Assembly — Black	Discontinued

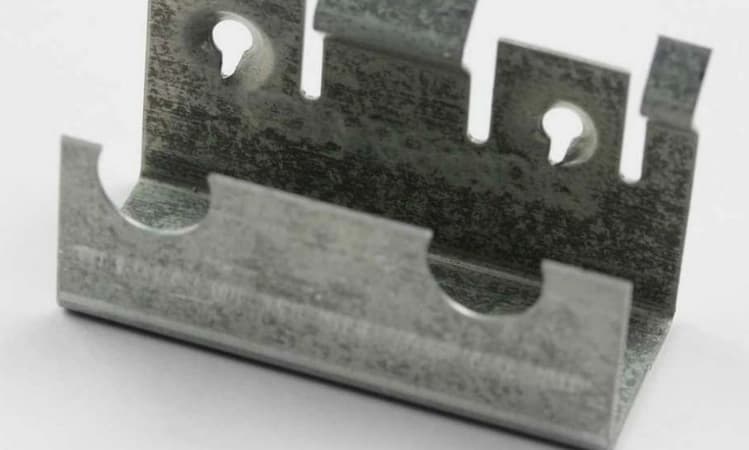

29		8564011 Bracket, Switch	-
30		8539897 Belt−Switch Jumper	-
31		W10850756replaces 8533974 Screw Ground	$5.00 RepairClinic
32		W10116398 Window, Outer Door — White	-
32		8575049NLA Window, Outer Door — Black	Discontinued
33		W10295405replaces 8572983 Strike, Door	$46.47 Part Advantage
34		WP308499replaces 308499 Palnut (10)	$5.01 Parts Dr
35		8565037NLA Door Inner — White	Discontinued
35	–	8575052 Door Inner — Grey	-
36		8565042 Door, Outer — White	-
36	–	8575025 Door, Outer — Black	-
37	–	W10050120 Door Handle — White	-
37	–	W10050100 Door Handle — Black	-
38		W10044490 Seal, Front Panel	$24.55 ApplianceParts Pro
39		279393 Terminal Block Kit (For Terminal Block)	$14.05 Part Advantage
40		WP488627replaces 342055 Screw, 10−32 x 5/8	$3.90 Part Advantage
41		WP3397659replaces 3397659 Block, Terminal	$7.79 Part Advantage
42	–	8547174 Pulley Assembly	-
43		WP8547168replaces 8547168 Belt, Drive	$28.44 Part Advantage
44		WP8547166replaces 8547166 Base, Motor	-
45		777849replaces W10002600 Bolt, 6−20 x 1 1/4	-
46		WP8066184replaces 8578565 Pulley, 60 HZ	$18.78 Part Advantage
47		WPW10463866replaces 8566152 Motor Assembly 60 HZ.	$144.71 Part Advantage
48		WP8066217replaces 238088 Hinge, Top (2)	$3.38 Part Advantage
49		8565015NLA Glass, Inner Door	Discontinued
50		W10100830 Screw, 10−16 x 3/64	-
51		18849 Pad−Top Hinge	-
