Model
Whirlpool RF265LXTS3
30" Electric Ceran
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RF265LXTS330" Electric Ceran
6 diagrams184 parts
Parts Sections (6)

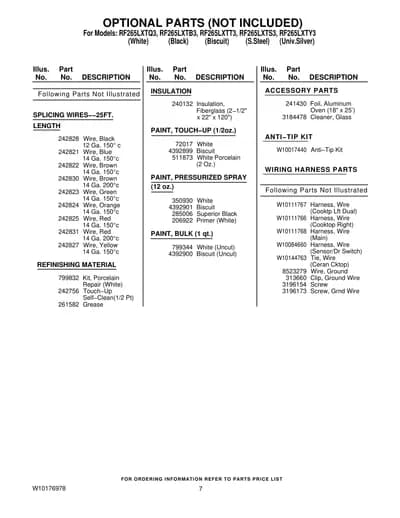

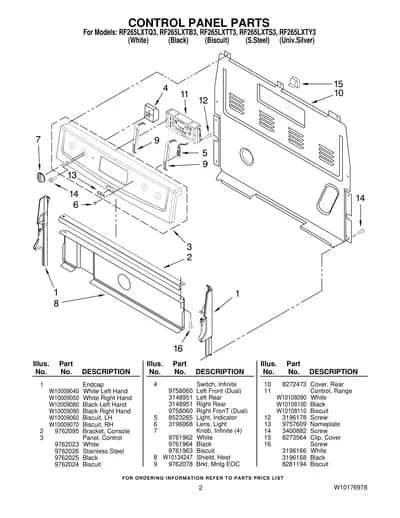

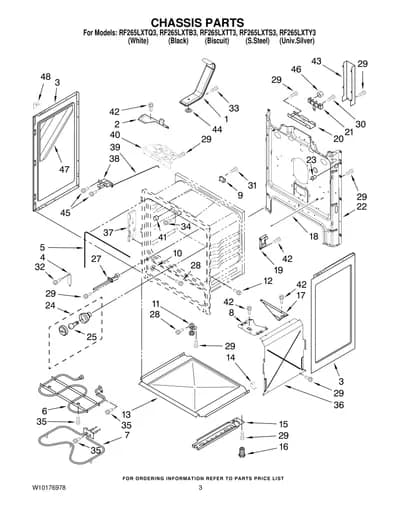

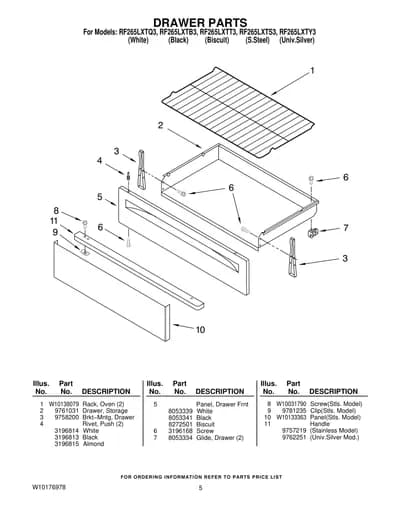

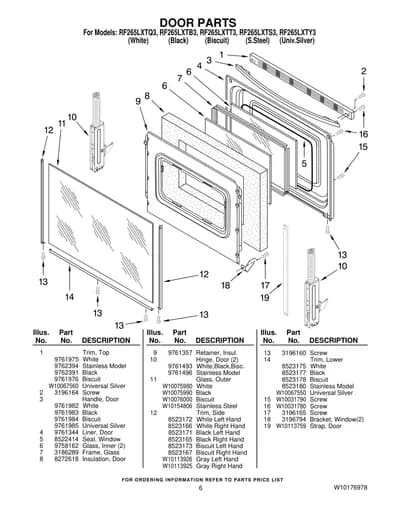

Diagram

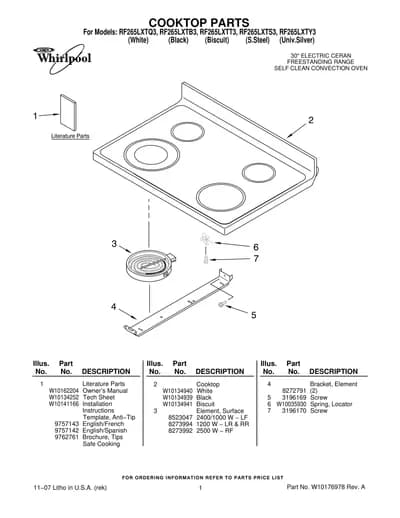

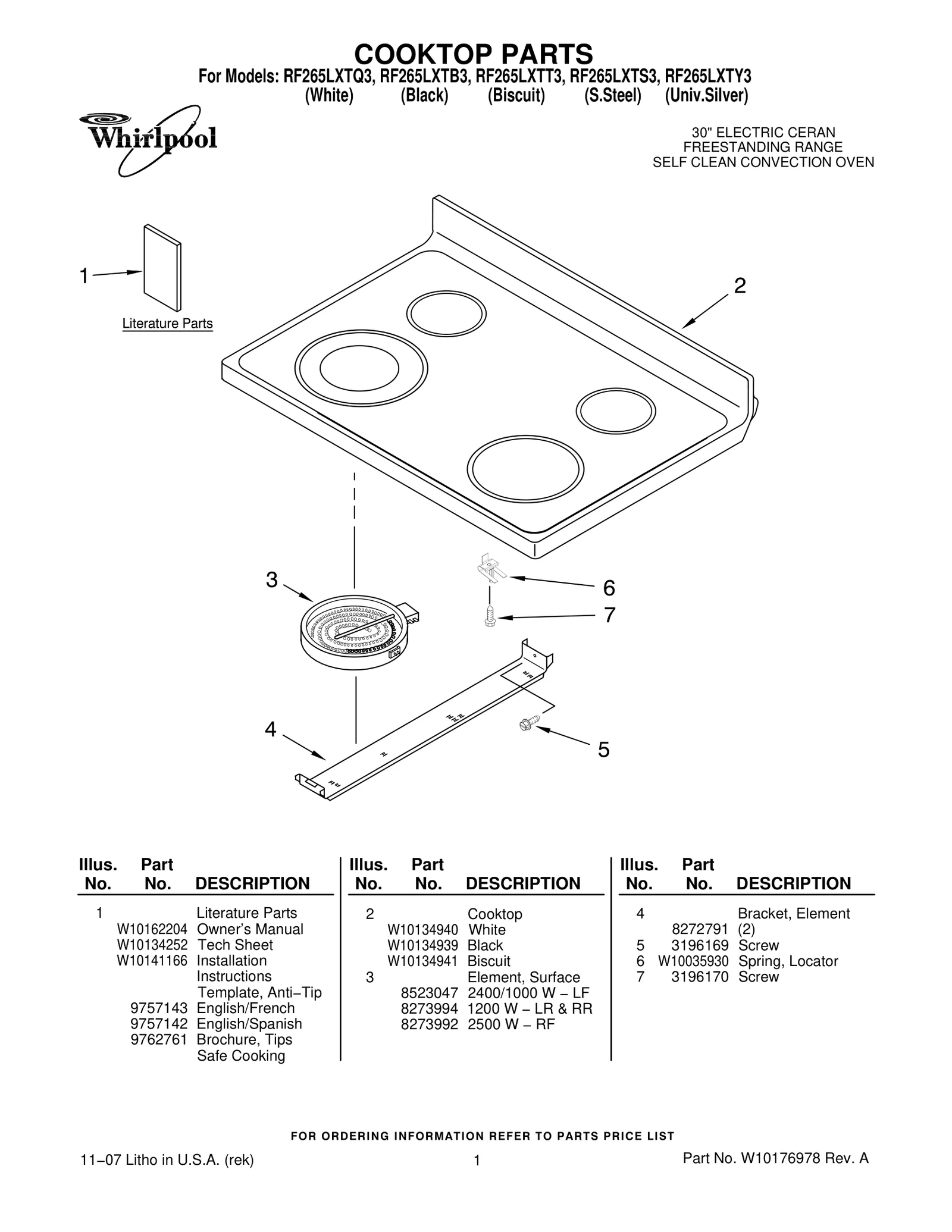

COOKTOP PARTS
Parts in COOKTOP PARTS
16 parts

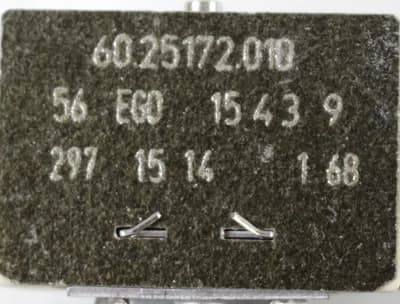

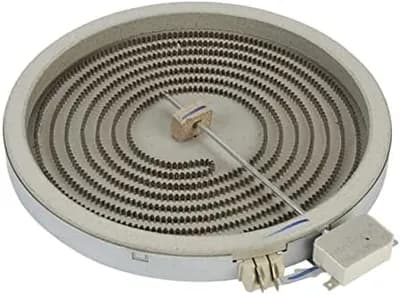

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10162204 Owner’s Manual | - |
| 1 | – | W10134252 Tech Sheet | - |
| 1 | – | W10141166 Installation Instructions Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9762761 Brochure, Tips Safe Cooking | - |
| 2 | – | W10134940 Cooktop — White | - |
| 2 |  | W10134939NLA Cooktop — Black | Discontinued |
| 2 | – | W10134941 Cooktop — Biscuit | - |
| 3 |  | WP8523047replaces 8523047 Element, Surface — 2400/1000 W − LF | $124.56 Parts Dr |
| 3 |  | W11171119replaces 8273994 Element, Surface — 1200 W − LR & RR | $85.73 Part Advantage |
| 3 |  | W11047722replaces 8273992 Element, Surface — 2500 W − RF | $65.56 Part Advantage |
| 4 | | (2) | - |
| 5 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 6 | | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
