Model
Whirlpool RF272LXTD1
30" Electric Freestanding Self Clean Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RF272LXTD130" Electric Freestanding Self Clean Range
6 diagrams140 parts
Parts Sections (6)

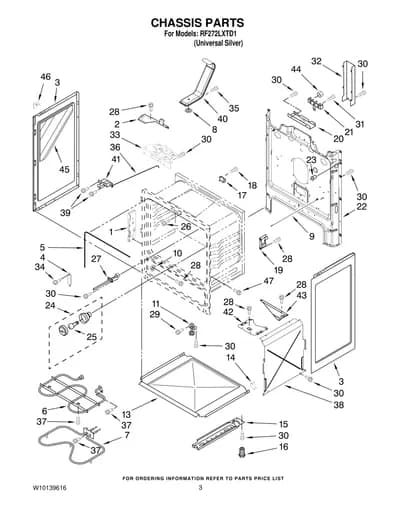

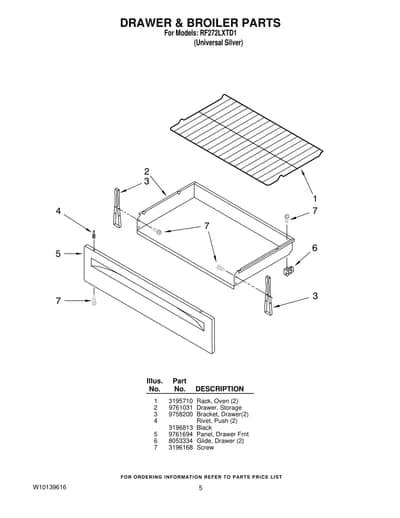

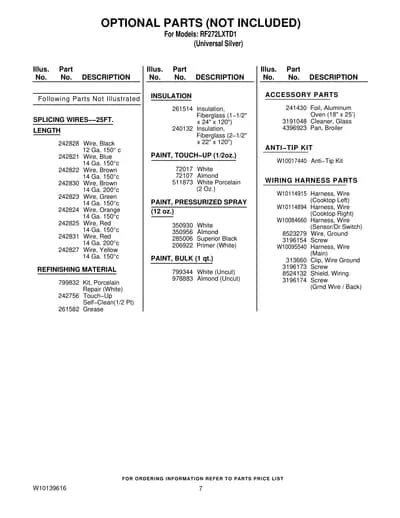

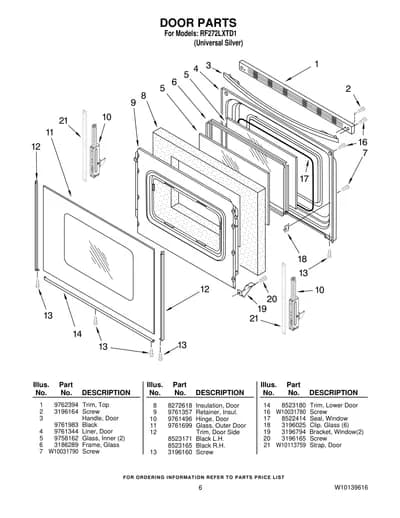

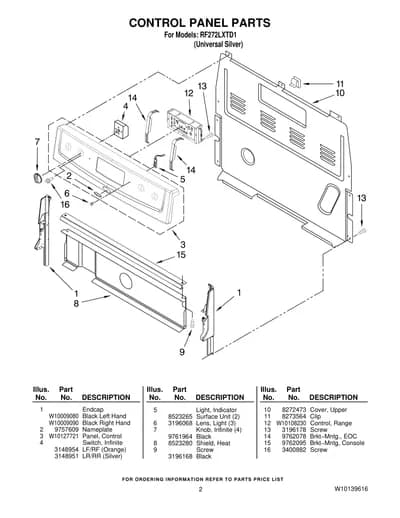

Diagram

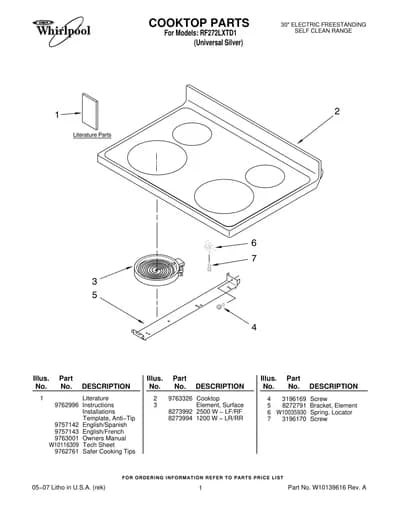

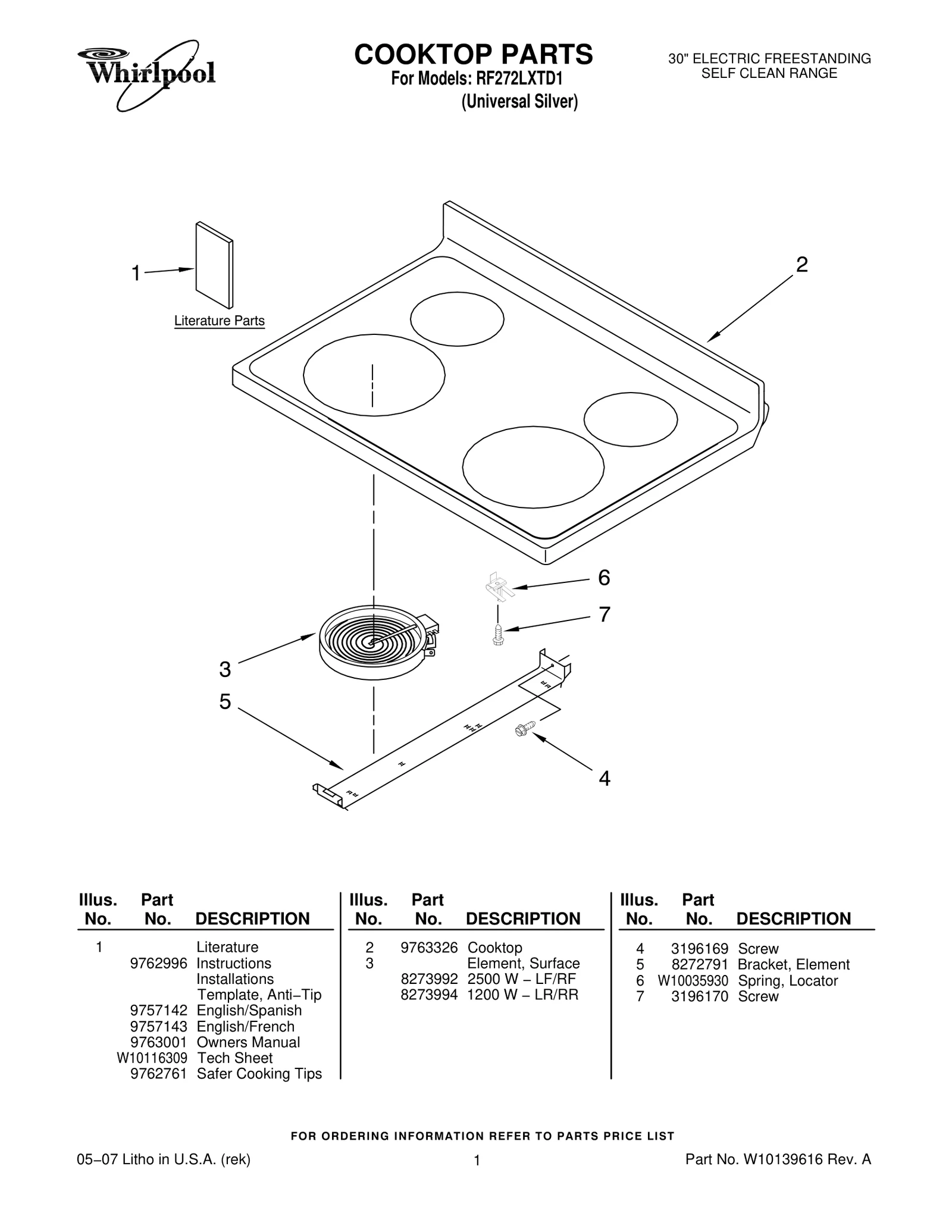

COOKTOP PARTS
Parts in COOKTOP PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762996 Instructions | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9763001 Owners Manual | - |
| 1 | – | W10116309 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | W10245805replaces 9763326 Cooktop | $308.43 Parts Dr |
| 3 |  | W11047722replaces 8273992 Element, Surface — 2500 W − LF/RF | $65.56 Part Advantage |
| 3 |  | W11171119replaces 8273994 Element, Surface — 1200 W − LR/RR | $85.73 Part Advantage |
| 4 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 5 |  | Bracket, Element | - |
| 6 | | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
