Whirlpool RS495111
Refrigerator
Parts Sections (13)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
RS495111Refrigerator
13 diagrams280 parts

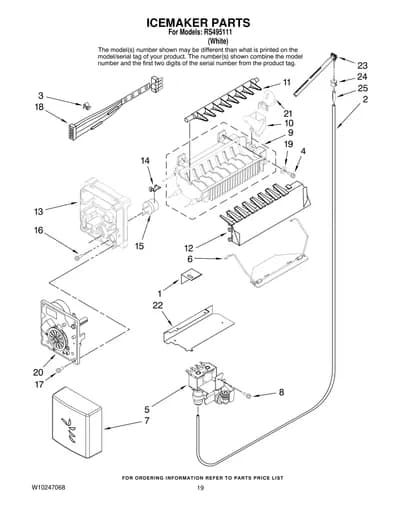

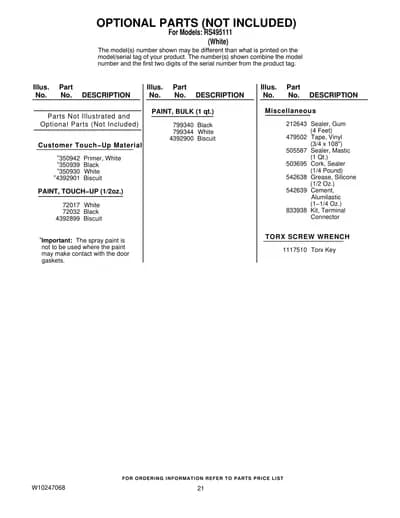

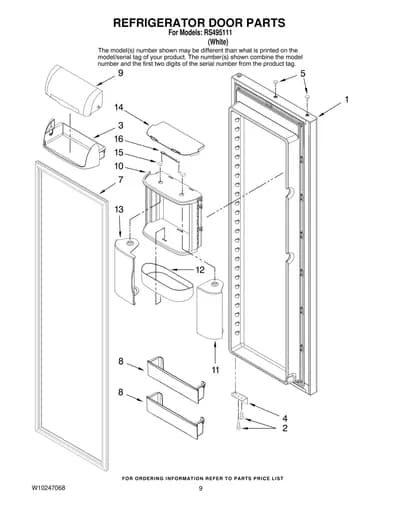

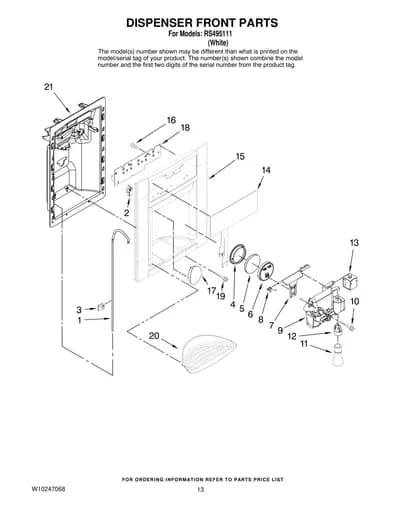

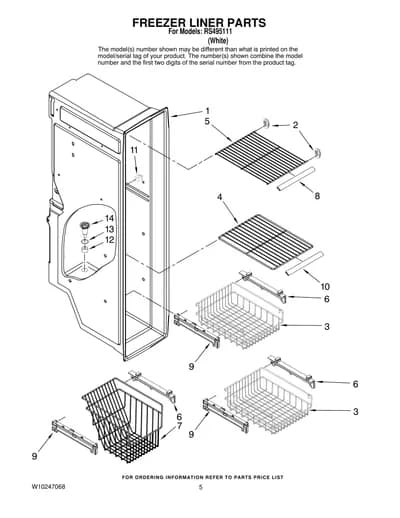

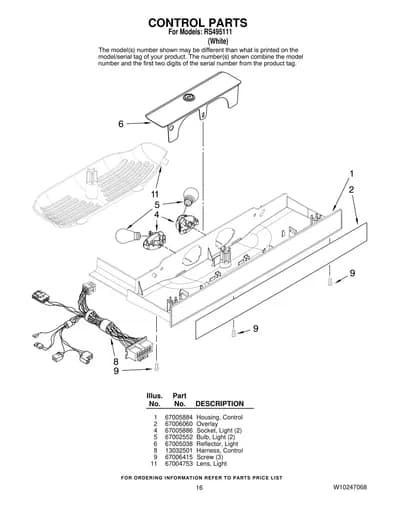

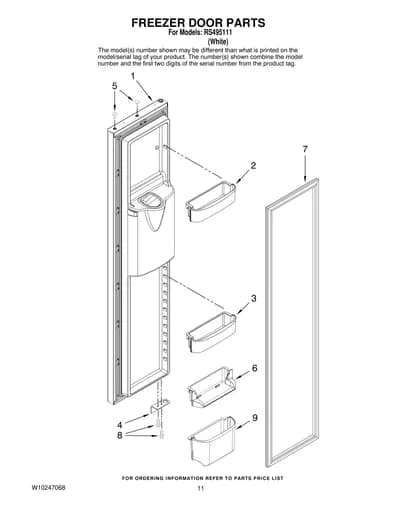

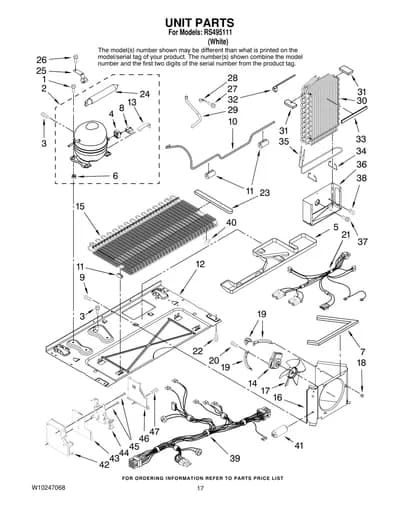

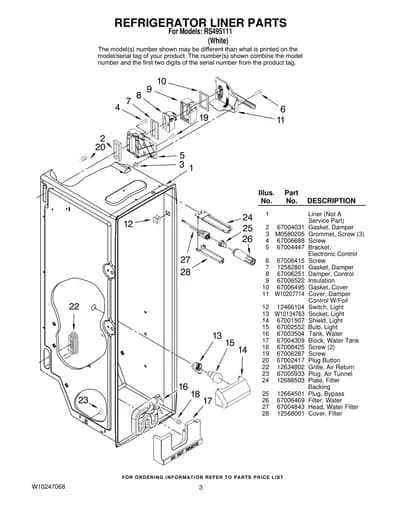

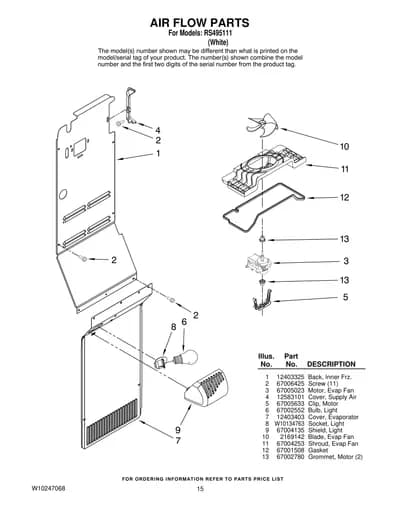

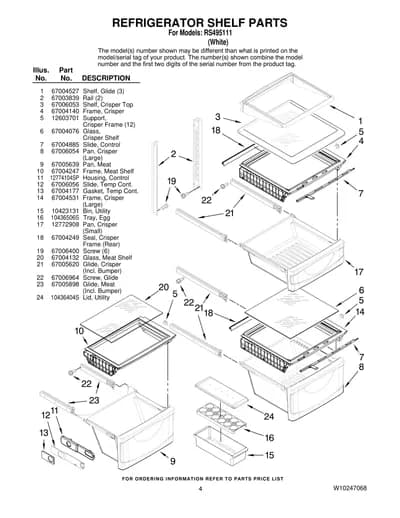

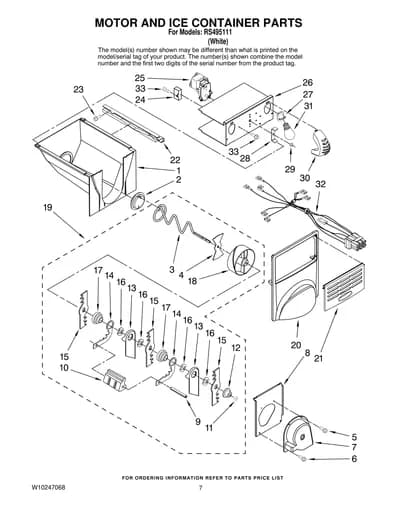

Parts Sections (13)
Diagram

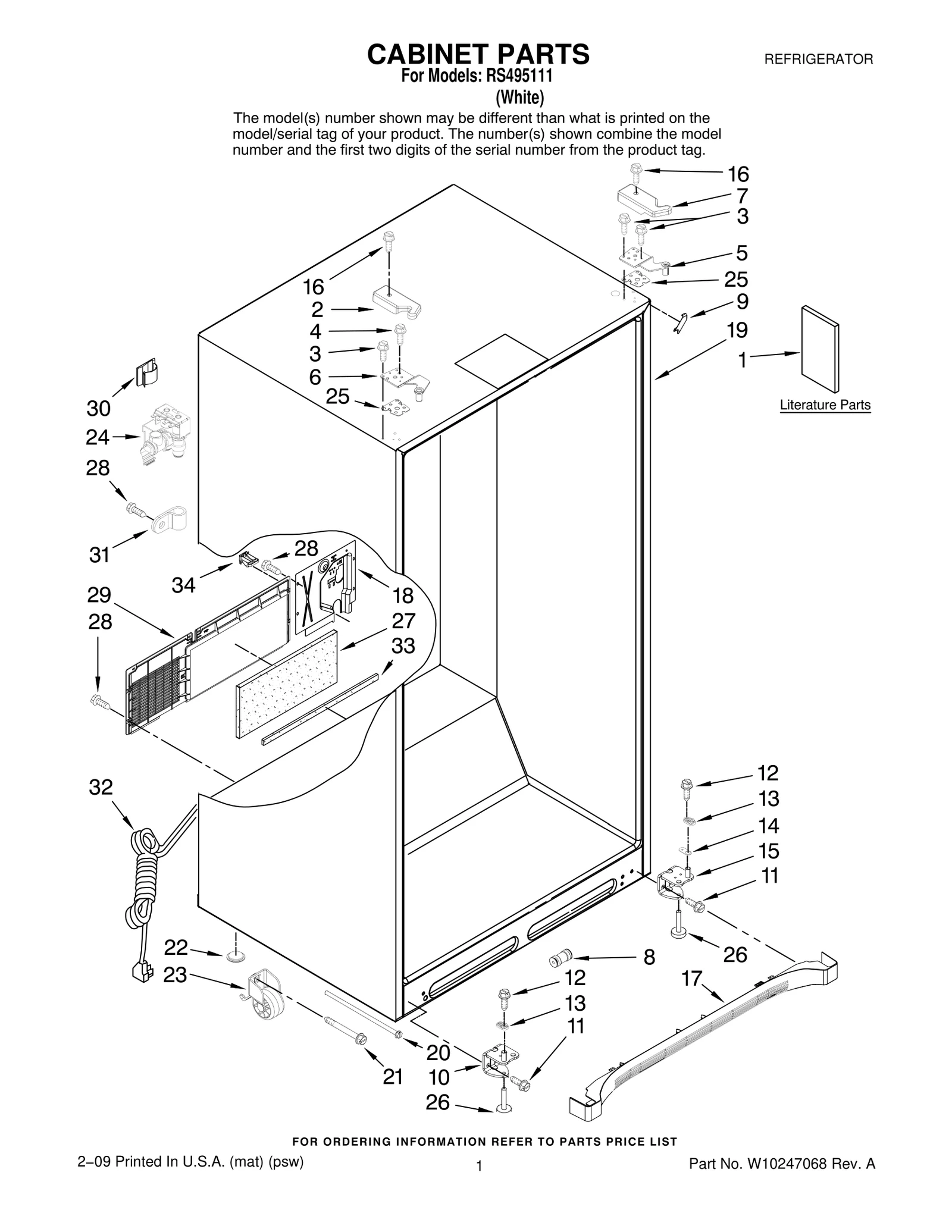

CABINET PARTS
Parts in CABINET PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12842127 Use and Care Guide | - |
| 2 |  | 67007156NLA Cover, Hinge (FC) — White | Discontinued |
| 3 |  | WP489349replaces 67006303 Screw (6) | $2.30 Part Advantage |
| 4 | – | 12992604 Screw | - |
| 5 | | Hinge Top, RC | - |
| 6 | | Hinge Top, FC | - |
| 7 | – | 12629801W Cover, Hinge (RC) — White | - |
| 8 |  | WP2300868replaces 61006182 Union Tube | $8.66 Amazon |
| 9 |  | Cover, Corner — White | - |
| 10 | – | 12998303ED Hinge, Bottom (FC) | - |
| 11 |  | Screw (8) | $3.74 Parts Dr |
| 12 |  | WP489483replaces 67006492 Screw | $11.77 PartSelect |
| 13 | | 67006493NLA Closure, Door | Discontinued |
| 14 |  | WP67005716replaces 67005716 Shim, Closure | $5.00 RepairClinic |
| 15 | – | 12998304ED Hinge, Bottom (RC) | - |
| 16 |  | WP8281196replaces 67006521 Screw (2) | $9.62 PartSelect |
| 17 |  | WP67006687replaces 67006687 Grille, Toe — Black | $37.72 Part Advantage |
| 18 | – | 67005117 Cover, Water Valve | - |
| 19 | – | N/S Cabinet (Not A Service Part) | - |
| 20 |  | Screw, Roller | - |
| 21 |  | 71003131replaces 67006611 Bolt, Roller Adjust (Front) | $6.21 Parts Dr |
| 22 |  | Plug, Button | - |
| 23 | – | 67006118 Roller and Bracket Assembly (4) | - |
| 24 | – | 12544116 Valve, Dual Water | - |
| 25 | – | 12695601 Shim, Top Hinge | - |
| 26 |  | W11177593replaces 67003868 Brake, Foot | $6.48 Part Advantage |
| 27 |  | Fiber, Acoustic | $11.89 Parts Dr |
| 28 |  | Screw, Cover (10) | $2.30 Part Advantage |
| 29 | – | 67002230 Cover, MC Back | - |
| 30 | | M0104102NLA Clip, Cord | Discontinued |
| 31 |  | W10833902replaces M0108105 Clamp, Tube | $2.97 RepairClinic |
| 32 | – | 67006664 Cord, Power | - |
| 33 | – | B5759651 Gasket, MC Back | - |
| 34 | | Sweep, Tube | - |
