Model
Whirlpool WFE361LVS0
30" Electric Ceran
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WFE361LVS030" Electric Ceran
6 diagrams182 parts
Parts Sections (6)
Diagram

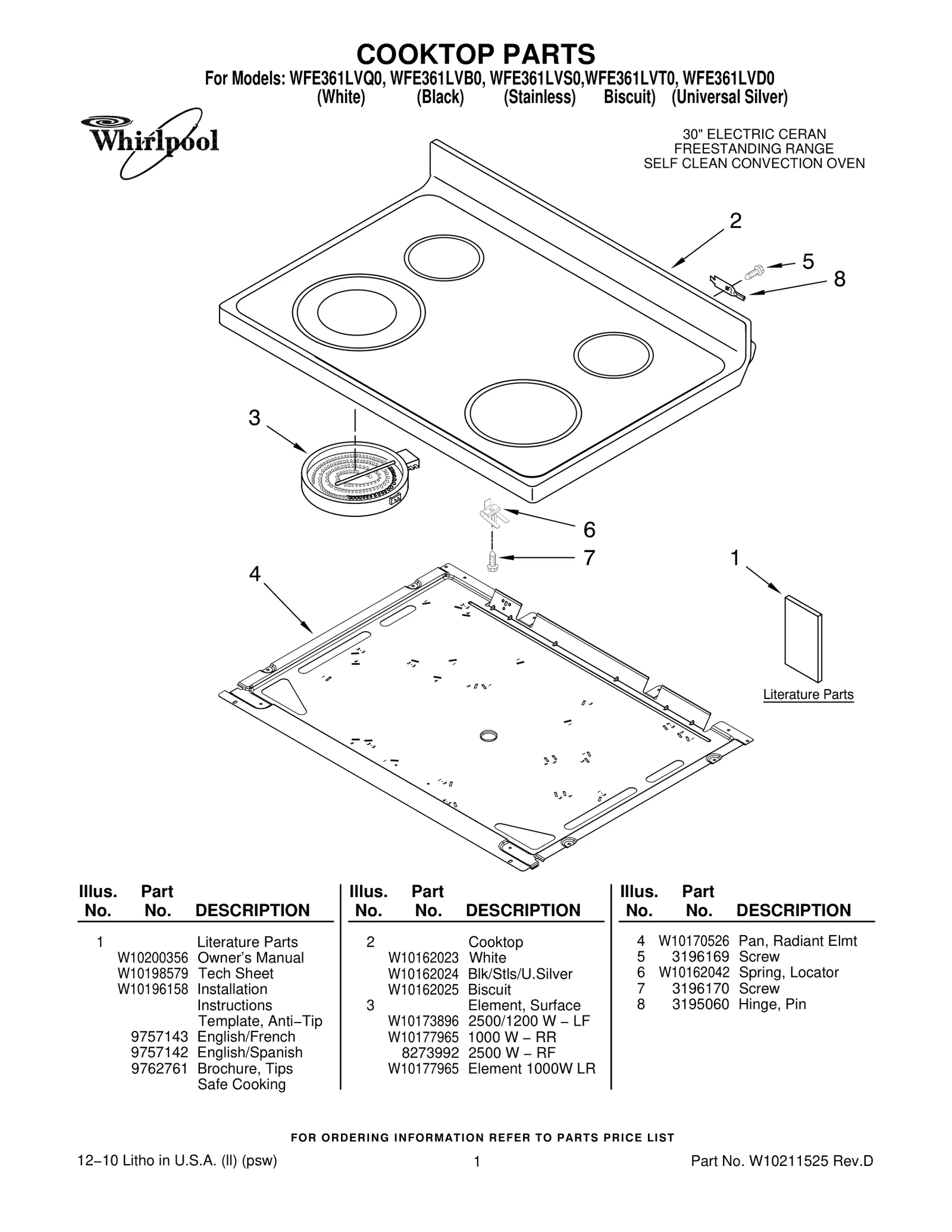

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10200356NLA Owner’s Manual | Discontinued |
| 1 | – | W10198579 Tech Sheet | - |
| 1 | – | W10196158 Installation Instructions Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9762761 Brochure, Tips Safe Cooking | - |
| 2 |  | W10245804replaces W10162023 Cooktop — White | $391.63 PartSelect |
| 2 |  | W10245805replaces W10162024 Cooktop — Blk/Stls/U.Silver | $308.43 Parts Dr |
| 2 | – | W10162025 Cooktop — Biscuit | - |
| 3 |  | WPW10275049replaces W10173896 Element, Surface — 2500/1200 W − LF | $147.65 Part Advantage |
| 3 |  | WPW10177965replaces W10177965 Element, Surface — 1000 W − RR | $176.67 ApplianceParts Pro |
| 3 |  | W11047722replaces 8273992 Element, Surface — 2500 W − RF | $65.56 Part Advantage |
| 3 | | WPW10177965replaces W10177965 Element, Surface — Element 1000W LR | $176.67 ApplianceParts Pro |
| 4 | | Pan, Radiant Elmt | - |
| 5 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 6 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 8 |  | WP3195060replaces 3195060 Hinge, Pin 12−10 Litho in U.S.A. (ll) (psw) | $3.87 Part Advantage |
