Model
Whirlpool WTW6400SW1
Automatic Washer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
WTW6400SW1Automatic Washer
5 diagrams131 parts
Parts Sections (5)

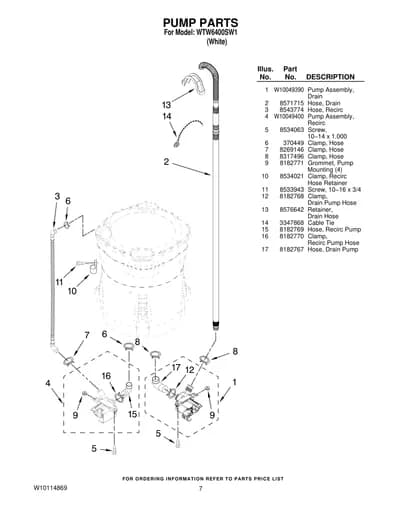

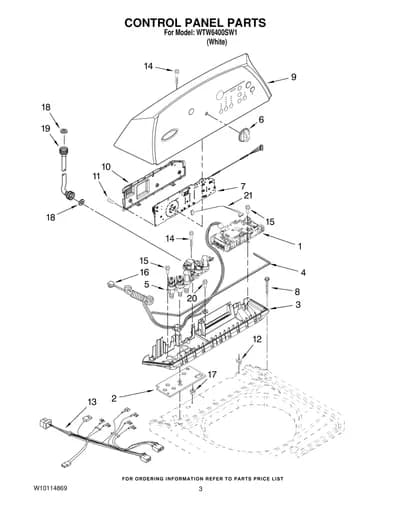

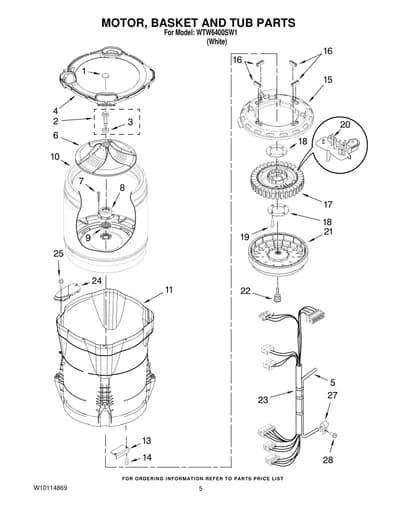

Diagram

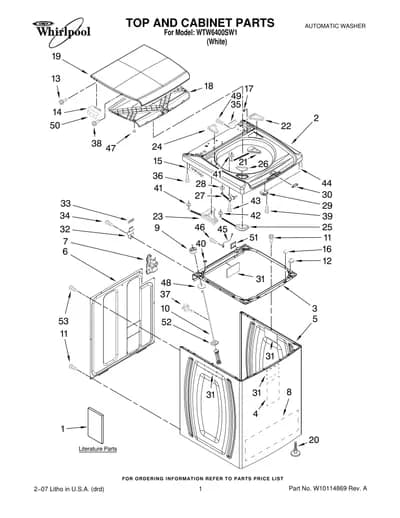

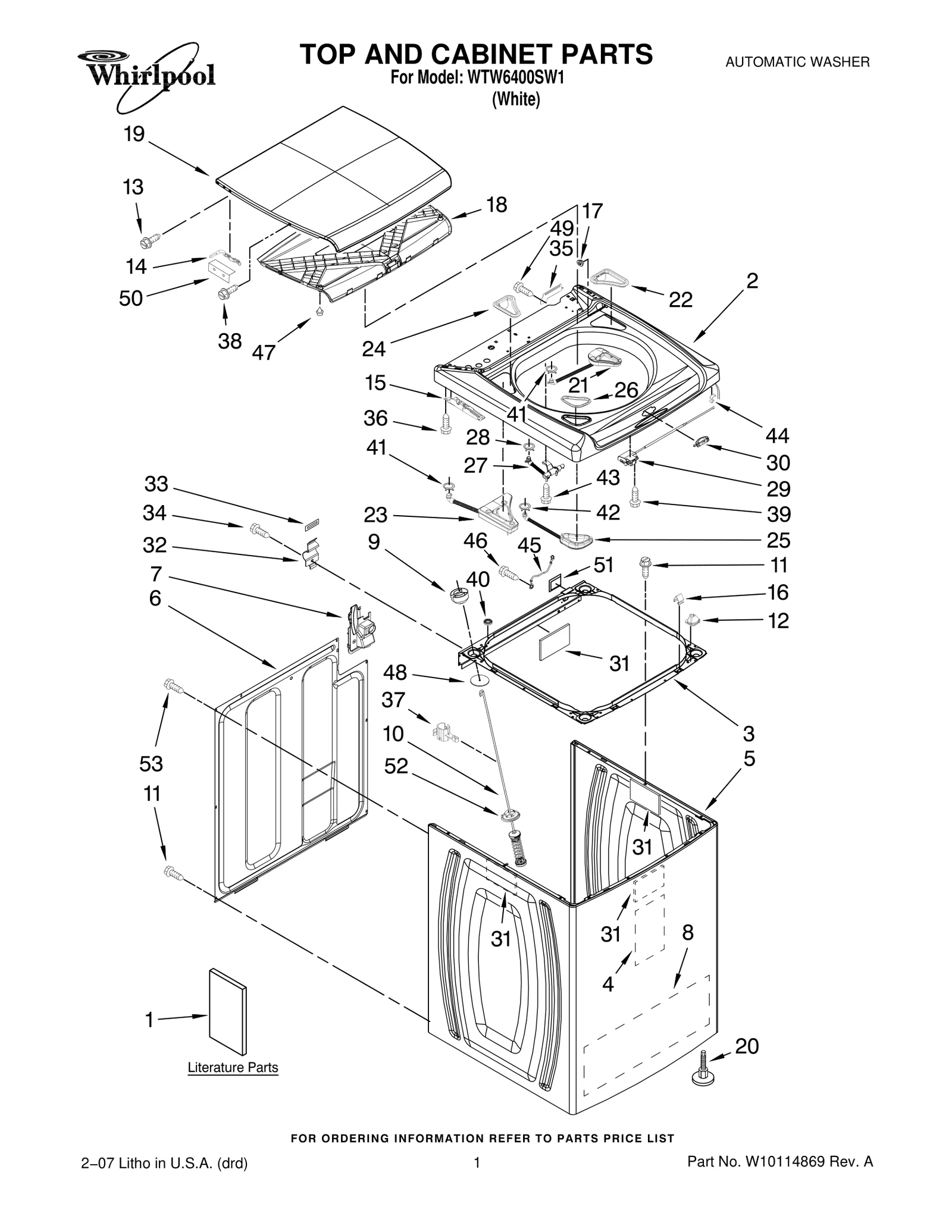

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
58 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10106470 Use & Care Guide | - |
| 1 |  | W10026571NLA Tech Sheet | Discontinued |
| 1 | – | W10106480 Quick Start Guide | - |
| 1 | – | 8577781 Wiring Diagram | - |
| 1 | – | W10107030 Energy Guide | - |
| 2 | | 8565311NLA Top | Discontinued |
| 3 | – | W10114656 Frame Assembly, Cabinet Top (Includes Items 31 & 51) | - |
| 4 | | Sound Absorber, Cabinet | - |
| 5 | – | 8566156 Cabinet | - |
| 6 |  | WP8566090replaces 8566090 Panel, Rear | - |
| 7 |  | WPW10160572replaces 8543781 Retainer, Drain Hose Storage | $9.57 ApplianceParts Pro |
| 8 | | Sound Absorber, Cabinet | - |
| 9 |  | W10198919replaces W10111536 Ball, Suspension (4) | $49.70 Part Advantage |
| 10 |  | W10820048replaces 8564009 Damper Assembly, Tub Suspension (Set Of 4−Includes Items 48 & 52) | $34.24 Part Advantage |
| 11 |  | WP489069replaces 1157158 Screw, 8−18 x 3/8 | $2.30 Part Advantage |
| 12 | | W10042120NLA Locator, Top (2) | Discontinued |
| 13 |  | WPW10119828replaces 355274 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 14 |  | WP8576780replaces 8576780 Hinge Arm, Lid (2) | $5.00 RepairClinic |
| 15 | | 8563962NLA (Left) | Discontinued |
| 15 |  | WP8563963replaces 8563963 (Right) | $84.21 PartSelect |
| 16 |  | WP8563785replaces 8563785 Lock, Top− Front (2) | $9.57 ApplianceParts Pro |
| 17 | | Bearing, Lid Hinge (2) | Discontinued |
| 18 |  | Lid−Inner | $43.70 RepairClinic |
| 19 | | 8572891NLA Lid | Discontinued |
| 20 |  | W10739673replaces 8578826 Foot Assembly, Leveling (4) | $11.77 PartSelect |
| 21 |  | WPW10172146replaces W10059150 Dispenser, Fabric Softener | $95.91 PartSelect |
| 22 |  | Bezel, Fabric Softener Dispenser | - |
| 23 |  | WPW10642278replaces W10059160 Dispenser, Bleach | - |
| 24 |  | Bezel, Bleach Dispenser | - |
| 25 | | 8564976NLA Dispenser, Detergent | Discontinued |
| 26 | | Bezel, Detergent Dispenser | - |
| 27 |  | WPW10106990replaces W10106990 Nozzle Assembly, Fresh Water | $53.20 PartSelect |
| 28 |  | WP596669replaces 371503 Clamp, Hose | $2.30 Part Advantage |
| 29 |  | WPW10619844replaces W10059230 Lock Assembly, Lid | $47.85 Part Advantage |
| 30 | | 8572019NLA Bezel, Lid Lock | Discontinued |
| 31 |  | WP8564458replaces 8564458 Absorber, Impact | $3.38 Part Advantage |
| 32 |  | WP8564456replaces 8564456 Hinge, Top (2) | - |
| 33 | | Pad, Top Hinge (2) | - |
| 34 |  | WP681414replaces 343641 Screw, 10−16 x 1/2 (2) | $2.30 Part Advantage |
| 35 |  | Cover, Harness | $21.41 RepairClinic |
| 36 | | WP489069replaces 693995 Screw, 8−18 x 3/8 | $2.30 Part Advantage |
| 37 | | Bracket, Drain Hose | - |
| 38 | | Screw (2) | - |
| 39 |  | WP8281136replaces 8281136 Screw, 10−16 x 3/4 | $3.68 Parts Dr |
| 40 |  | Spacer, Rear | - |
| 41 | | WP596669replaces 370451 Clamp, Hose | $2.30 Part Advantage |
| 42 | | WP596669replaces 371503 Clamp, Hose | $2.30 Part Advantage |
| 43 | | W11700520replaces 3400061 Screw, 10−16 x 9/16 | $7.60 ApplianceParts Pro |
| 44 |  | WP90016replaces 90016 Clip, Harness (5) | $7.43 RepairClinic |
| 45 |  | 3184020replaces 8281736 Wire, Ground Jumper | $50.57 ApplianceParts Pro |
| 46 |  | W10846509replaces 3400076 Screw, 10−32 x 5/8 | $2.30 Part Advantage |
| 47 |  | Bumper, Lid (2) | - |
| 48 |  | WP8577896replaces 8577896 Washer, Suspension Umbrella (4) | $5.95 ApplianceParts Pro |
| 49 |  | WP488729replaces 3390647 Screw, 8−18 x 1/2 | $2.41 Part Advantage |
| 50 |  | WP21097replaces 21097 Pad, Lid Hinge (2) | $3.38 Part Advantage |
| 51 | | Shield, Wire Harness | - |
| 52 |  | WP8564017replaces 8564017 Cup, Suspension (4) | $16.81 RepairClinic |
| 53 |  | WP488488replaces 489290 Screw, 8−18 x 1/2 | $5.00 RepairClinic |
