Model
Gladiator YGY396LXPQ03
30" Slide−In 30" Slide−In 30" Slide−In Electric Oven Electric Oven Electric Oven Self Clean Self Clean Self Clean
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
YGY396LXPQ0330" Slide−In 30" Slide−In 30" Slide−In Electric Oven Electric Oven Electric Oven Self Clean Self Clean Self Clean
7 diagrams207 parts
Parts Sections (7)
Diagram

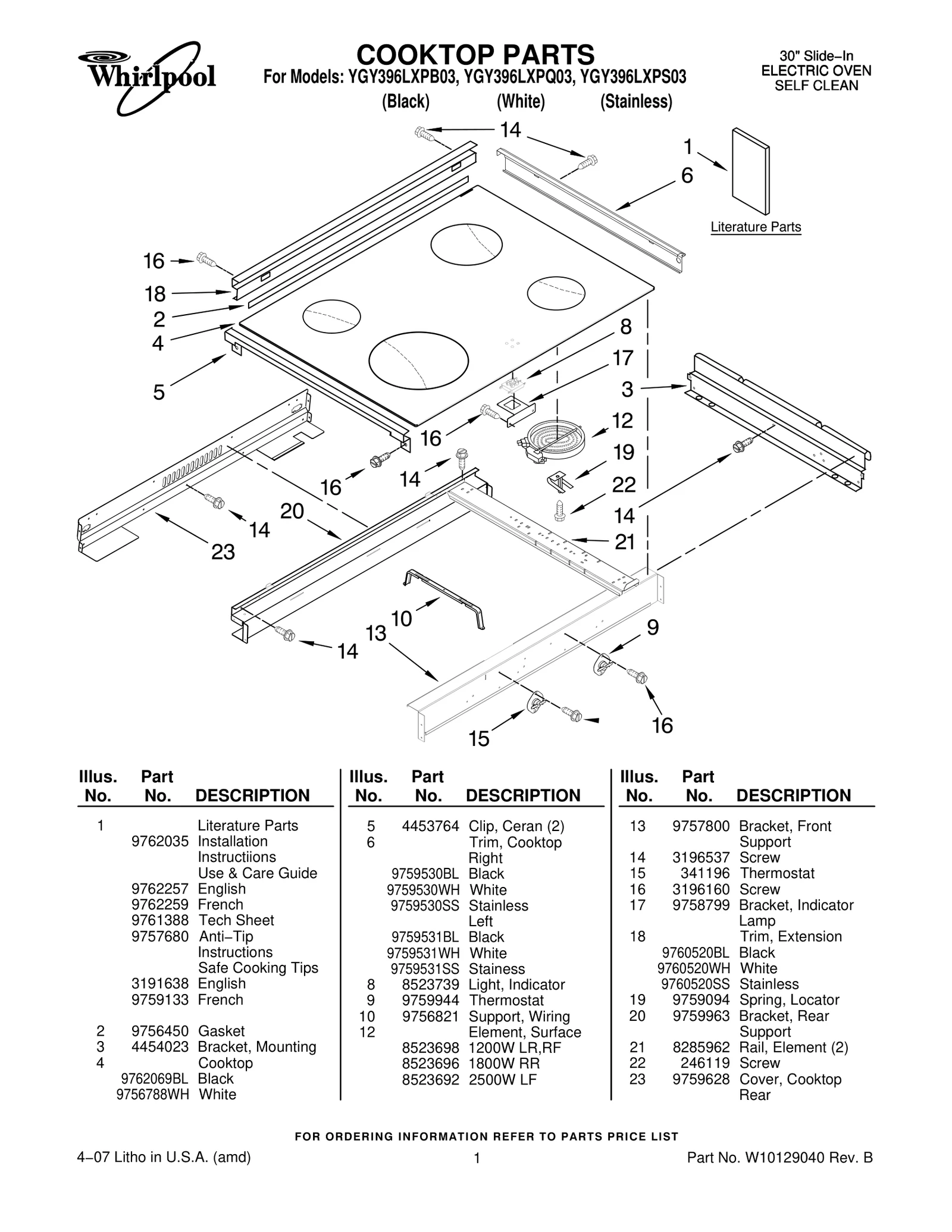

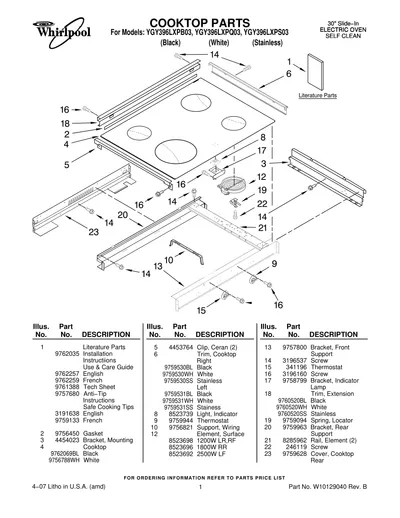

COOKTOP PARTS
Parts in COOKTOP PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762035 Installation Instructiions Use & Care Guide | - |
| 1 | – | 9762257 English | - |
| 1 | – | 9762259 French | - |
| 1 | – | 9761388 Tech Sheet | - |
| 1 | – | 9757680 Anti−Tip Instructions Safe Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 2 | | 9756450NLA Gasket | Discontinued |
| 3 | | Bracket, Mounting | - |
| 4 | | Cooktop — Black | Discontinued |
| 4 | | 9756788WHNLA Cooktop — White | Discontinued |
| 5 | | 4453764NLA Clip, Ceran (2) | Discontinued |
| 6 | | 9759530BLNLA Trim, Cooktop Right — Black | Discontinued |
| 6 | | 9759530WHNLA Trim, Cooktop Right — White | Discontinued |
| 6 | | 9759530SSNLA Trim, Cooktop Right — Stainless | Discontinued |
| 6 | | Trim, Cooktop Right — Black | - |
| 6 | | 9759531WHNLA Trim, Cooktop Right — White | Discontinued |
| 6 | | Trim, Cooktop Right — Stainess | - |
| 8 | | Light, Indicator | - |
| 9 |  | WP9759944replaces 9759944 Thermostat | $87.40 ApplianceParts Pro |
| 10 | | WP9756821replaces 9756821 Support, Wiring | - |
| 12 |  | W10823711replaces 8523698 1200W LR,RF | $92.55 Part Advantage |
| 12 |  | W10823698replaces 8523696 Element, Surface — 1800W RR | $83.15 Part Advantage |
| 12 |  | W10823696replaces 8523692 Element, Surface — 2500W LF | $87.70 Amazon |
| 13 | | 9757800NLA Bracket, Front Support | Discontinued |
| 14 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 15 | | 341196NLA Thermostat | Discontinued |
| 16 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
| 17 | – | 9758799 Bracket, Indicator Lamp | - |
| 18 | | Trim, Extension — Black | - |
| 18 | | Trim, Extension — White | - |
| 18 | | Trim, Extension — Stainless | - |
| 19 |  | Spring, Locator | $7.15 ApplianceParts Pro |
| 20 | – | 9759963 Bracket, Rear Support | - |
| 21 | – | 8285962 Rail, Element (2) | - |
| 22 |  | WP486754replaces 246119 Screw | $5.95 ApplianceParts Pro |
| 23 | – | 9759628 Cover, Cooktop Rear 4−07 Litho in U.S.A. (amd) | - |
