Model
Whirlpool YWFE361LVQ0
30" Electric Ceran Freestanding Range Self Clean Oven
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
YWFE361LVQ030" Electric Ceran Freestanding Range Self Clean Oven
6 diagrams168 parts
Parts Sections (6)
Diagram

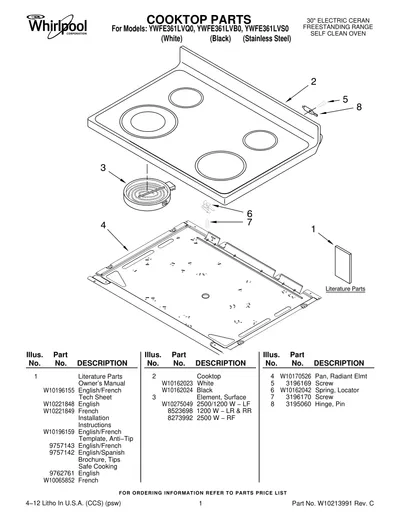

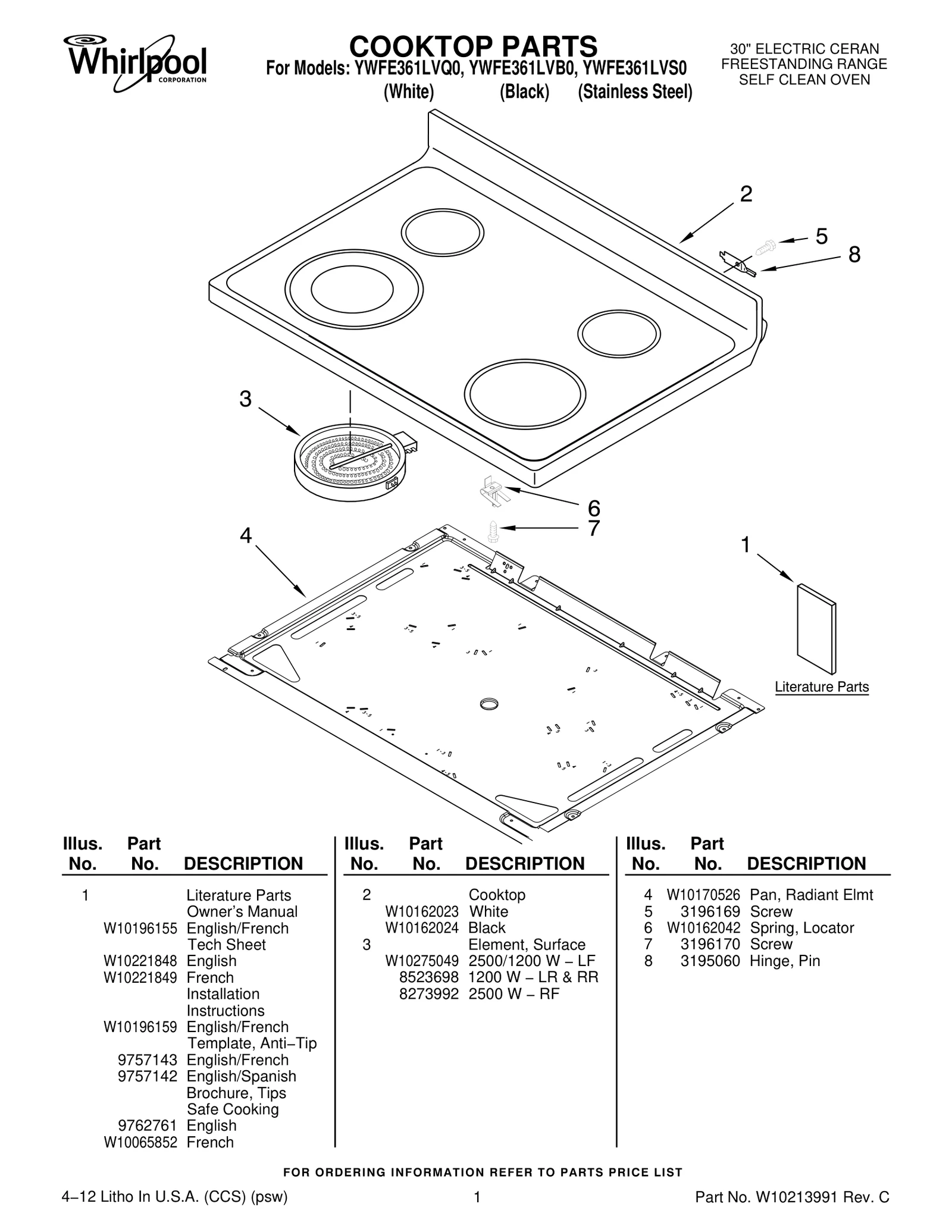

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196155 Owner’s Manual — English/French | - |
| 1 | – | W10221848 Owner’s Manual — English | - |
| 1 | – | W10221849 Owner’s Manual — French | - |
| 1 | – | W10196159 Owner’s Manual — English/French | - |
| 1 | – | 9757143 Owner’s Manual — English/French | - |
| 1 | – | 9757142 Owner’s Manual — English/Spanish | - |
| 1 | – | 9762761 Owner’s Manual — English | - |
| 1 | – | W10065852 Owner’s Manual — French | - |
| 2 |  | W10245804replaces W10162023 Cooktop — White | $391.63 PartSelect |
| 2 |  | W10245805replaces W10162024 Cooktop — Black | $308.43 Parts Dr |
| 3 |  | WPW10275049replaces W10275049 Element, Surface — 2500/1200 W − LF | $147.65 Part Advantage |
| 3 |  | W10823711replaces 8523698 Element, Surface — 1200 W − LR & RR | $92.55 Part Advantage |
| 3 |  | W11047722replaces 8273992 Element, Surface — 2500 W − RF | $65.56 Part Advantage |
| 4 |  | Pan, Radiant Elmt | - |
| 5 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 6 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 7 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 8 |  | WP3195060replaces 3195060 Hinge, Pin | $3.87 Part Advantage |
