SIDE-BY-SIDE REFRIGERATOR (Kenmore 1064651332713)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.4651332713SIDE-BY-SIDE REFRIGERATOR (Kenmore 1064651332713)
11 diagrams229 parts

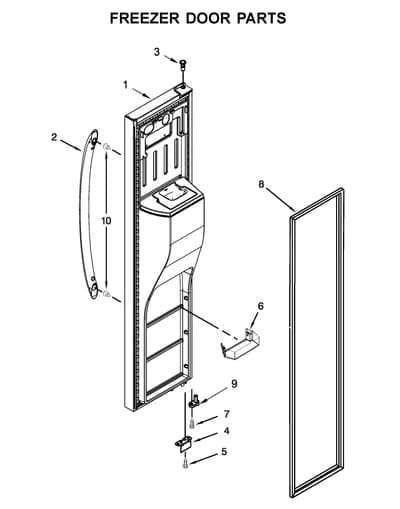

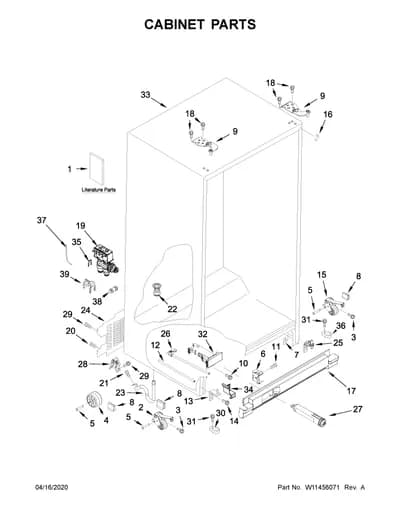

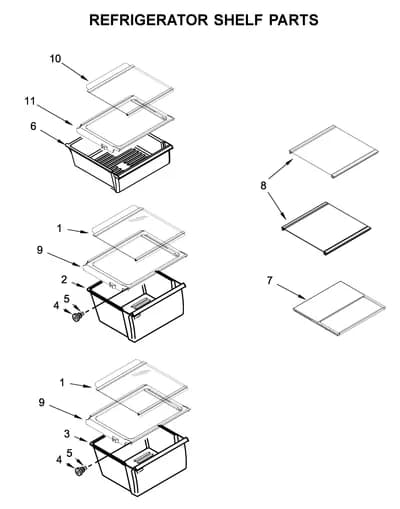

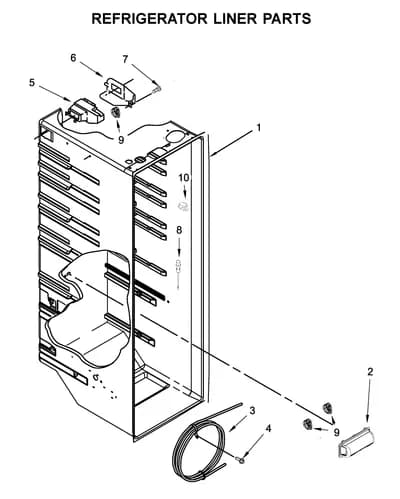

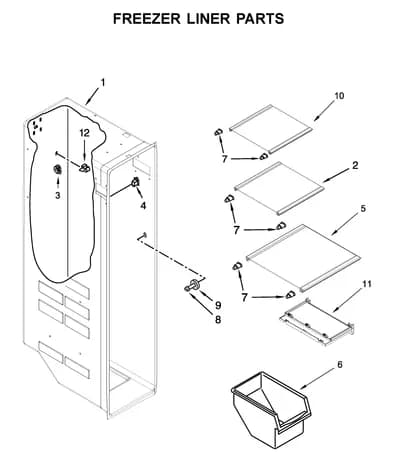

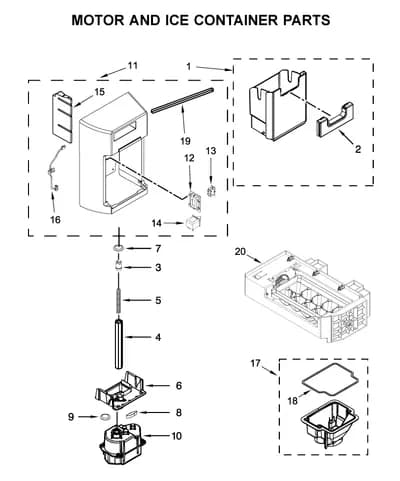

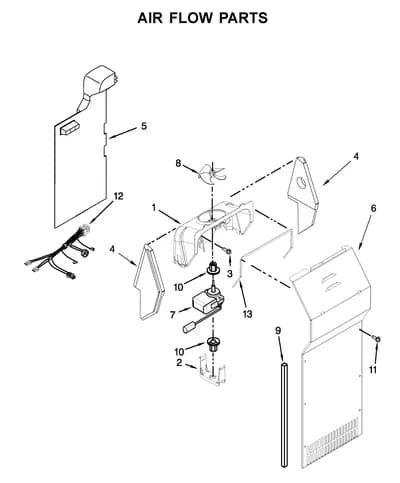

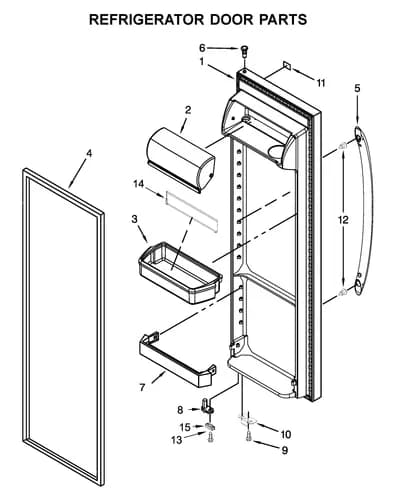

Parts Sections (11)
Diagram

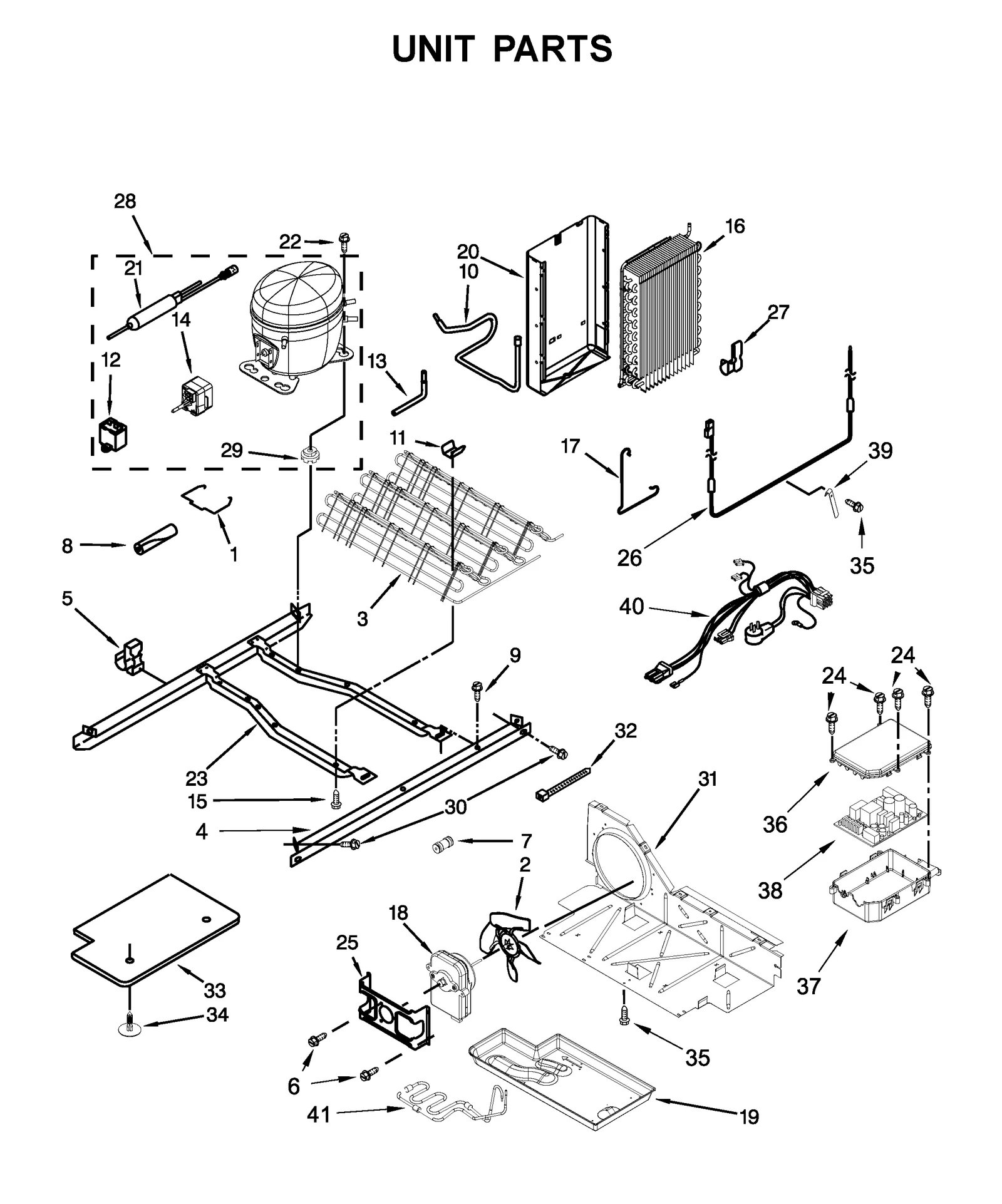

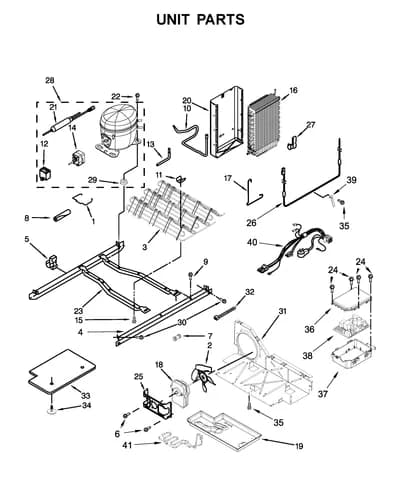

UNIT PARTS
Parts in UNIT PARTS
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Retainer | $8.95 ApplianceParts Pro |
| 2 |  | W11458267replaces 2225834 Fan Blade | $6.44 Part Advantage |
| 3 |  | W11632924replaces W10904626 Refrigerator Condenser Assembly | $86.04 Parts Dr |
| 4 |  | RAIL, UNIT MOUNTING | - |
| 5 |  | W10812039replaces 2326941 Refrigerator Clip | - |
| 6 |  | WP8533993replaces 8533993 Refrigerator Screw | $7.09 RepairClinic |
| 7 |  | WP2300868replaces W10271541 Refrigerator Fitting | $8.66 Amazon |
| 8 |  | W11751592replaces 2161302 Refrigerator Sleeve | $11.13 Part Advantage |
| 9 |  | WP489427replaces 489427 Refrigerator Screw | $5.00 RepairClinic |
| 10 |  | Refrigerator Suction Tube | - |
| 11 |  | W10683556replaces 2311725 Refrigerator Clip | $12.51 ApplianceParts Pro |
| 12 |  | WPW10350564replaces W10350564 Refrigerator Run Capacitor | $42.07 Part Advantage |
| 13 |  | W10858105replaces 2325479 Refrigerator Refrigerant Process Tube | - |
| 14 |  | WPW10197428replaces W10197428 Refrigerator Start Relay | $39.24 Part Advantage |
| 15 |  | W11544659replaces 8281232 Refrigerator Screw | $6.41 RepairClinic |
| 16 |  | WP2188823replaces 2188823 Refrigerator Evaporator | $176.75 Part Advantage |
| 17 |  | WP2161324replaces 2161324 Refrigerator Defrost Clip | $5.78 Parts Dr |
| 18 |  | W11578915replaces W10522629 Condenser Motor | $43.00 Part Advantage |
| 19 |  | W11164129replaces W10897557 Refrigerator Evaporator Tray | $55.54 Parts Dr |
| 20 |  | Refrigerator Evaporator Shield | - |
| 21 |  | WPW10143759replaces W10771114 Refrigerator Drier Assembly | $13.43 Part Advantage |
| 22 |  | W11661574replaces 489473 SCREW | - |
| 23 | | FRAME, UNIT MOUNTING | - |
| 24 | | WPW10171469replaces 8533859 Refrigerator Screw | - |
| 25 |  | WP2181929replaces 2181929 Refrigerator Condenser Fan Motor Bracket | $3.78 RepairClinic |
| 26 |  | WP2323198replaces 2188175 Refrigerator Heater | $27.15 Part Advantage |
| 28 |  | WPW10466675replaces W10391109 Refrigerator Compressor | $346.14 Part Advantage |
| 29 |  | Refrigerator Compressor Grommet | $9.84 Parts Dr |
| 30 |  | Refrigerator Compressor Rail Bracket Screw | - |
| 31 | | W10896764replaces W10897567 Refrigerator Air Baffle | $36.77 Part Advantage |
| 32 |  | WPW10339879replaces 2263990 Refrigerator Wire Tie | $2.30 Part Advantage |
| 33 | | COVER ASSY-U | $41.39 RepairClinic |
| 34 |  | Refrigerator Clip | $11.71 ApplianceParts Pro |
| 35 |  | WP489464replaces 489464 Refrigerator Screw | $9.62 PartSelect |
| 36 |  | Refrigerator Cover | - |
| 37 |  | Refrigerator Electronic Control Board Housing | $50.57 ApplianceParts Pro |
| 38 |  | W11212392replaces W11265216 ELEC CONTROL | $229.95 PartSelect |
| 39 |  | W11611126replaces W10895163 Refrigerator Evaporator Drip Pan Heat Probe | $13.82 ApplianceParts Pro |
| 40 |  | W11679642replaces W11218408 Refrigerator Wire Harness | $78.02 Parts Dr |
| 41 |  | W11678305replaces W11189542 ASSEMBLY, PRECOOLER FORMED | $23.92 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $21.10 Part Advantage |
| NI |  | WP978025replaces 978025 Refrigerator Service Valve | $26.37 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $32.89 Part Advantage |
| NI |  | Sears Refrigerator Service Valve | $13.43 Parts Dr |
| NI | | Refrigerator Service Valve | - |
| NI |  | Sears Refrigerator Service Valve, 3/4-in | $23.51 Parts Dr |
| NI | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
