Kenmore 106.56734602
Side-By-Side Refrigerator (Kenmore 10656734602)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
106.56734602Side-By-Side Refrigerator (Kenmore 10656734602)
11 diagrams345 parts
Parts Sections (11)

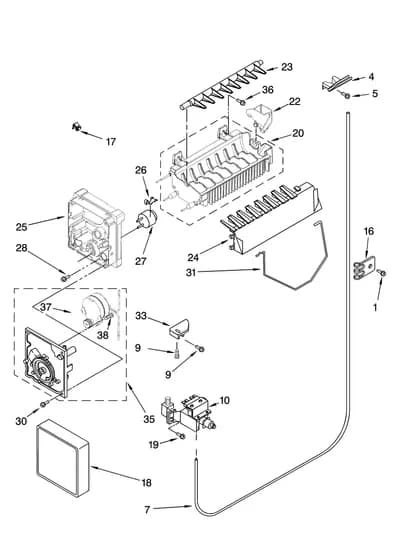

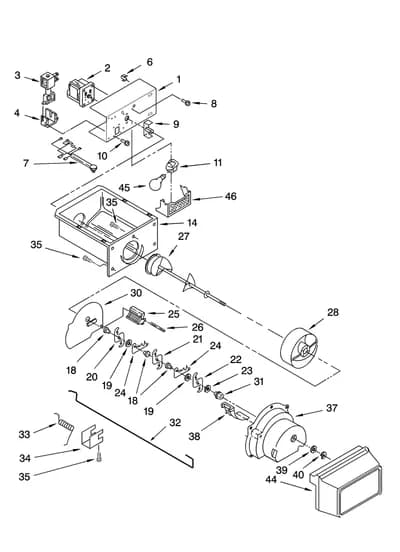

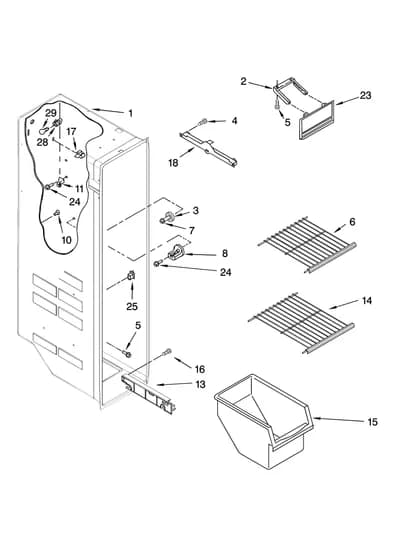

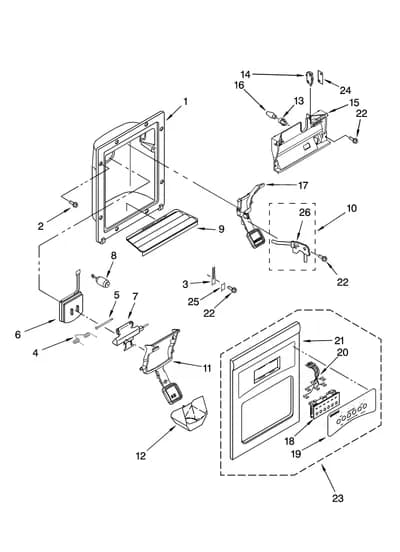

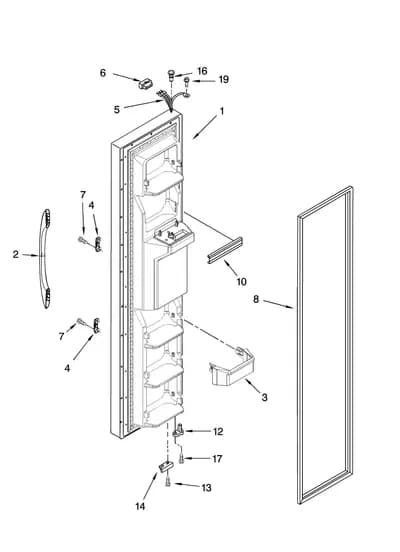

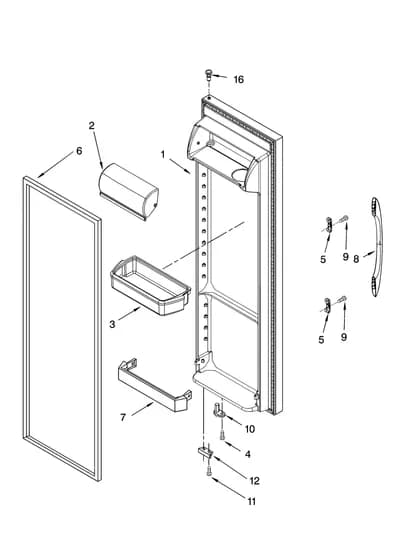

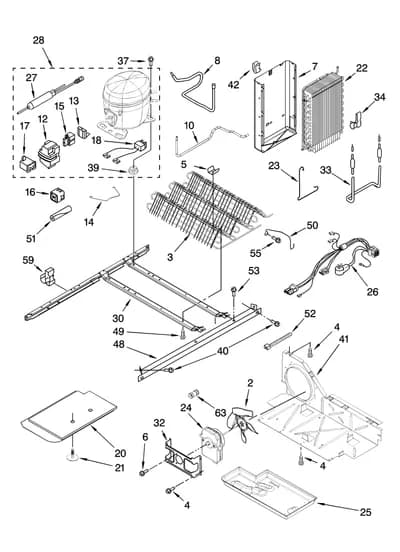

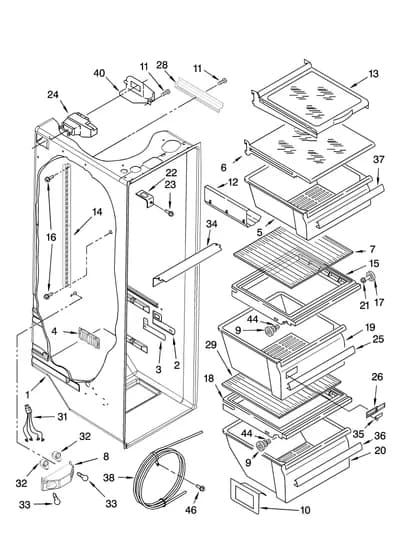

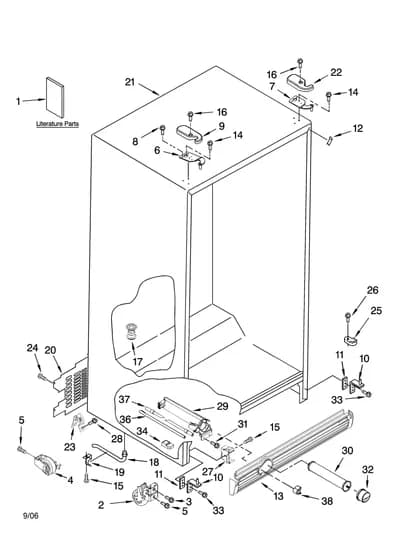

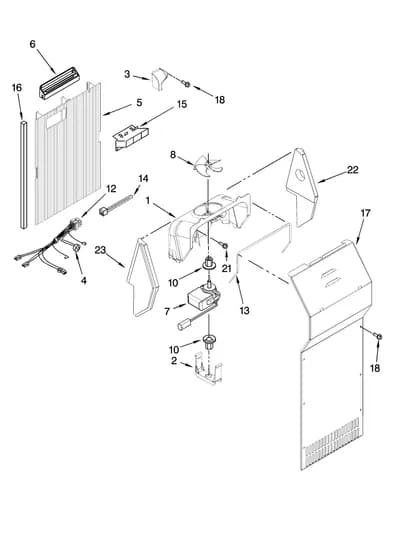

Diagram

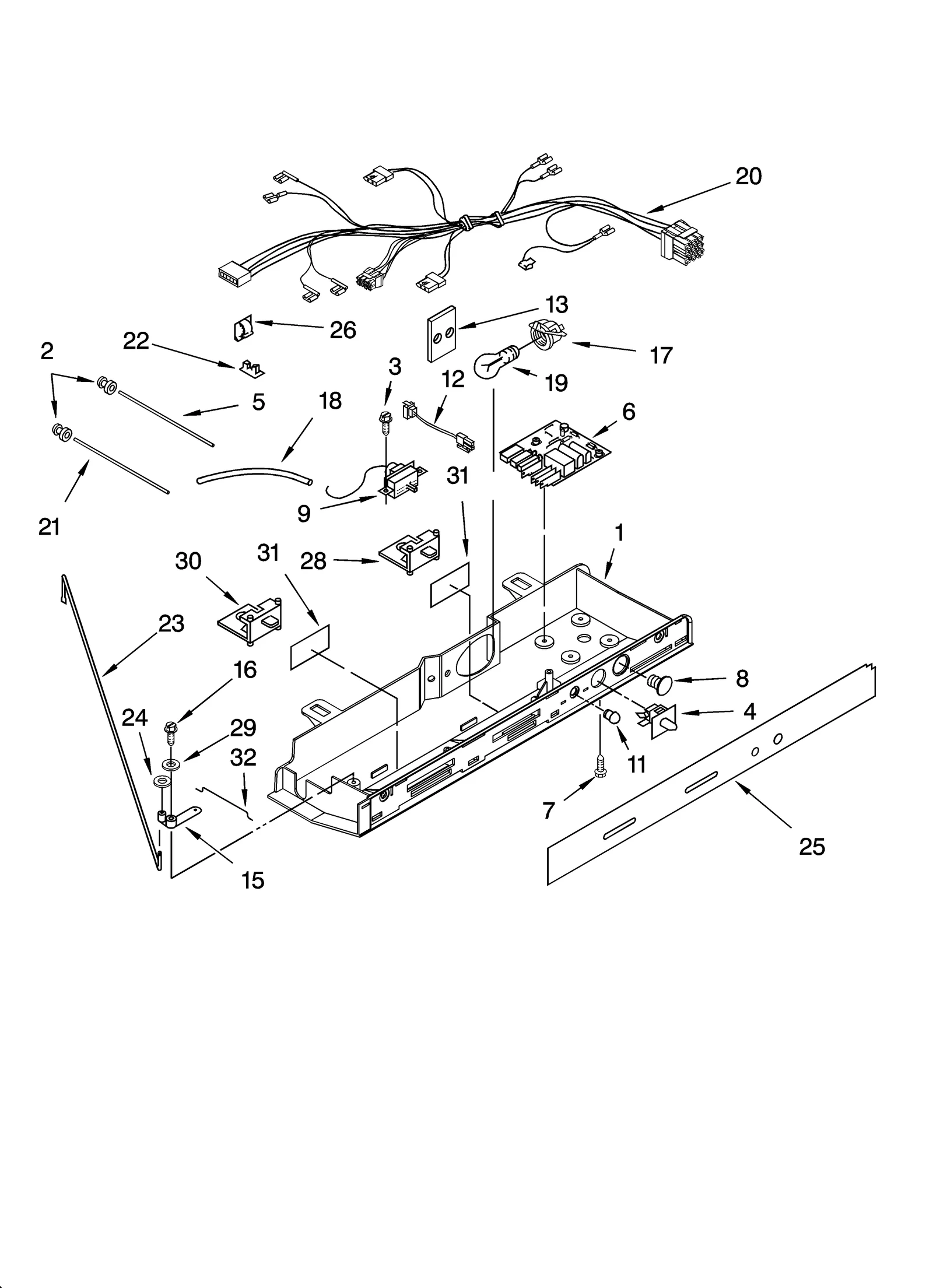

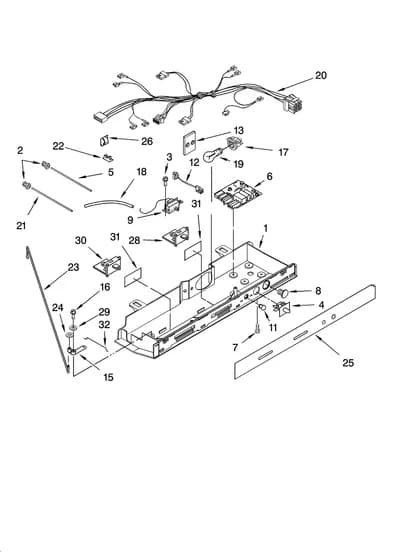

CONTROL PARTS
Parts in CONTROL PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Refrigerator Control Box | - |
| 2 | | Refrigerator Grommet | - |
| 3 |  | 2006254replaces 489214 Refrigerator Screw | $9.95 ApplianceParts Pro |
| 4 |  | WP2149705replaces 2149705 Refrigerator Door Switch | $20.44 Part Advantage |
| 5 | | Refrigerator Fresh-Food Control Light Pipe | - |
| 6 |  | WPW10135901replaces 2304143 Refrigerator Electronic Control | $204.48 ApplianceParts Pro |
| 7 |  | 489392replaces 489398 Refrigerator Screw | - |
| 8 | | Refrigerator Control Panel Hole Plug | - |
| 9 |  | WP2315562replaces 2315562 Refrigerator Temperature Control | $51.27 Part Advantage |
| 11 | | Refrigerator Light Cover | - |
| 12 |  | W10853646replaces 2213462 Refrigerator Wire Harness | $47.28 Part Advantage |
| 13 |  | Refrigerator Shield | - |
| 15 | | Refrigerator Air Damper Control Pivot Arm | - |
| 16 |  | Refrigerator Screw | - |
| 17 |  | 4387478replaces 2162085 Light Socket | $31.36 Part Advantage |
| 18 |  | WP2196003replaces 2196001 Refrigerator Barrier | $5.95 ApplianceParts Pro |
| 19 |  | W11679940replaces 2255743 Refrigerator Light Bulb | $2.65 Part Advantage |
| 20 |  | 2311632replaces 2212237 Refrigerator Wire Harness | - |
| 21 | | Light Bar | - |
| 22 | | Refrigerator Retainer Clip | - |
| 23 | | Refrigerator Rod | - |
| 24 | – | 489391 Refrigerator Fastener | - |
| 25 | – | 2315238 Refrigerator Escutcheon | - |
| 26 |  | WP1115374replaces 1115374 Refrigerator Wire Harness Retainer | $5.95 ApplianceParts Pro |
| 28 |  | Refrigerator Temperature Control Slide | $14.56 ApplianceParts Pro |
| 29 | | Washer | - |
| 30 |  | Refrigerator Air Damper Control Knob | $38.34 ApplianceParts Pro |
| 31 | | Refrigerator Window | - |
| 32 |  | Short Rod | - |
