Model
Kenmore 110.15964401
Washer (Kenmore 11015964401)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.15964401Washer (Kenmore 11015964401)
11 diagrams246 parts
Parts Sections (11)
Diagram

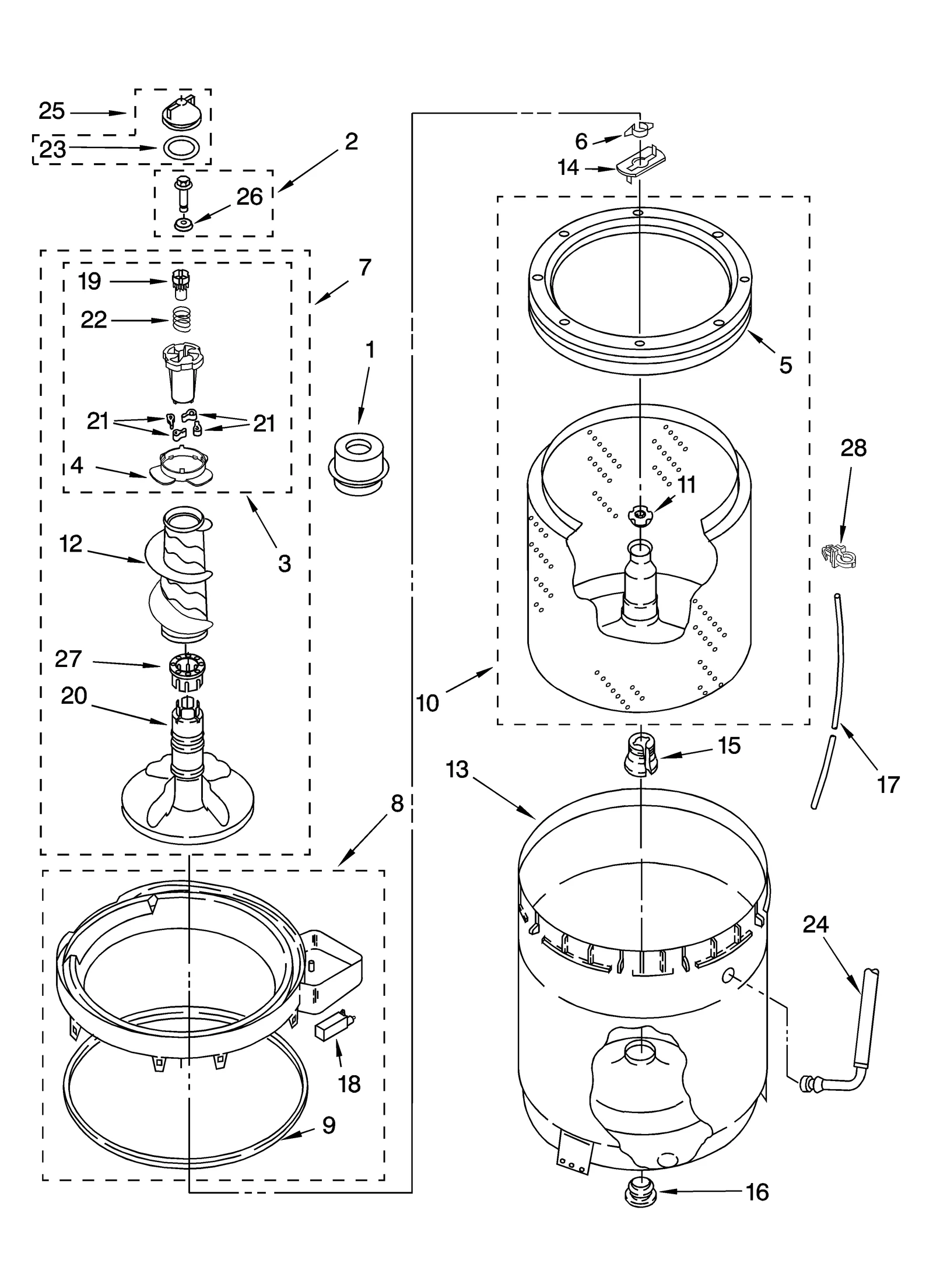

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285975replaces 8055232 Dispenser | $38.77 ApplianceParts Pro |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | WP8537434replaces 8537434 Washer Agitator Cam Repair Kit | $51.00 Parts Dr |
| 4 |  | WP8055141replaces 8055141 Washer Agitator Cam Bearing | $5.04 Parts Dr |
| 5 |  | WP387240replaces 8519788 Balance Ring | $81.73 PartSelect |
| 6 |  | WP3354845replaces 3354845 Washer Agitator Clip | $15.95 ApplianceParts Pro |
| 7 |  | WP8578210replaces 8538247 Agitator | $104.78 Parts Dr |
| 8 |  | 3954507NLA Tub Ring | Discontinued |
| 9 |  | WP3976308replaces 3359585 Tub Seal | $8.62 Part Advantage |
| 10 |  | W10389328replaces 8526016 Basket | $207.63 PartSelect |
| 11 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 12 |  | WP8054468replaces 8054468 Washer Agitator Auger | $100.68 Parts Dr |
| 13 | | Washer Outer Tub | - |
| 14 |  | WP8543666replaces 3355921 Washer | $5.06 Part Advantage |
| 15 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 16 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 17 |  | WP353244replaces 3347780 Hose-wl | $31.19 Part Advantage |
| 18 | – | 8318246 Wax Motor | - |
| 19 |  | WP8533540replaces 8533540 Washer Agitator Spring Retainer | $3.38 Part Advantage |
| 20 |  | WP8578209replaces 8054350 Agitator | $85.45 Part Advantage |
| 21 |  | 80040replaces 3366877 Agitator Dog | $1.29 Part Advantage |
| 22 |  | WP8055140replaces 8055140 Spring | $18.06 RepairClinic |
| 23 |  | WPW10072840replaces 3348855 O-Ring | $3.55 Part Advantage |
| 24 | | 3948705NLA Washer Bleach Dispenser Hose | Discontinued |
| 25 | | 285975replaces 8283352 Cap | $38.77 ApplianceParts Pro |
| 26 |  | WP3949550replaces 3949550 Washing Machine Washer | $4.54 Part Advantage |
| 27 |  | WP8055228replaces 8055228 Washing Machine Washer | $8.87 Part Advantage |
| 28 |  | Harness Clip | - |
