Model
Kenmore 110.24932202
Washer (Kenmore 11024932202)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.24932202Washer (Kenmore 11024932202)
11 diagrams250 parts
Parts Sections (11)
Diagram

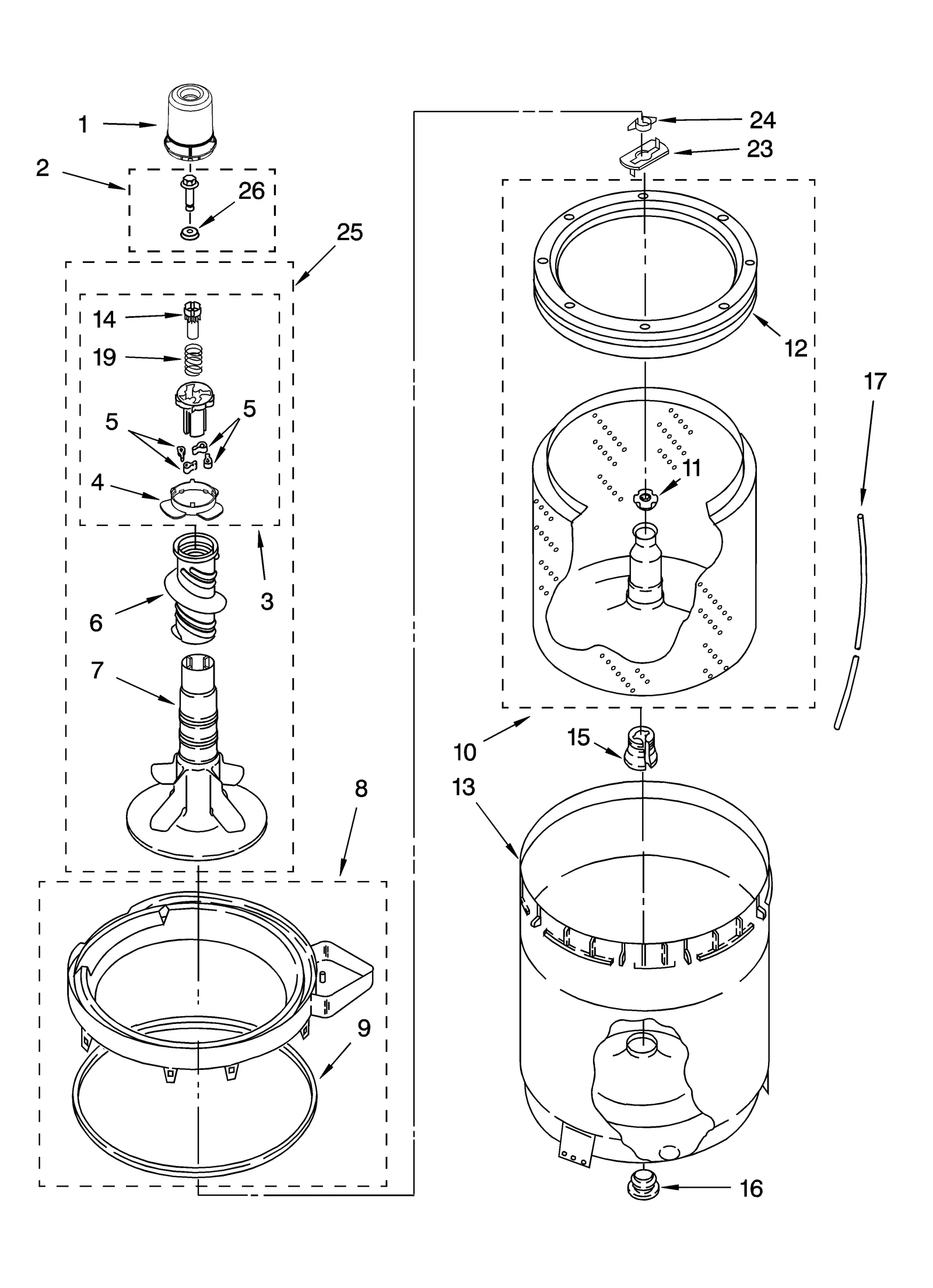

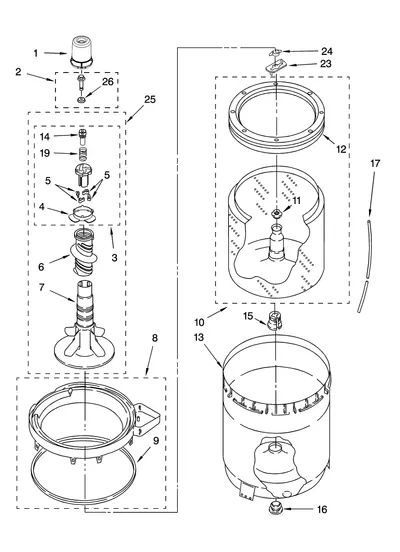

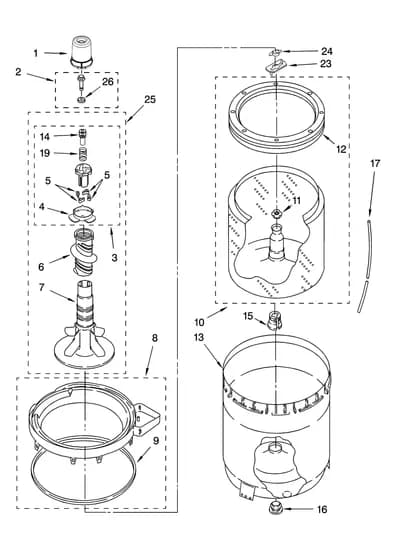

AGITATOR, BASKET AND TUB PARTS
Parts in AGITATOR, BASKET AND TUB PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP8528278replaces 8528278 Washer Fabric Softener Dispenser Cup | $5.86 Part Advantage |
| 2 |  | WP358237replaces 358237 Washer Agitator Bolt | $2.22 Part Advantage |
| 3 |  | WP8537433replaces 8537433 Washer Agitator Cam Repair Kit | $33.54 Part Advantage |
| 4 |  | WP8055141replaces 8055141 Washer Agitator Cam Bearing | $5.04 Parts Dr |
| 5 |  | 80040replaces 3366877 Agitator Dog | $1.29 Part Advantage |
| 6 |  | W11480892replaces 3946996 Washer Agitator Auger | $35.24 Part Advantage |
| 7 |  | WP3947517replaces 3947517 Washer Agitator | $81.75 Parts Dr |
| 8 |  | W10880720replaces 8528150 Washer Tub Ring Assembly | $78.05 Part Advantage |
| 9 |  | WP3976308replaces 3976308 Washer Tub Seal | $8.62 Part Advantage |
| 10 |  | W10389328replaces 8526016 Basket | $207.63 PartSelect |
| 11 |  | WP21366replaces 21366 Washer Spanner Nut | $3.38 Part Advantage |
| 12 |  | WP387240replaces 8519788 Balance Ring | $81.73 PartSelect |
| 13 |  | Washer Outer Tub | $144.52 PartSelect |
| 14 |  | WP8533540replaces 8533540 Washer Agitator Spring Retainer | $3.38 Part Advantage |
| 15 |  | WP389140replaces 389140 Washer Drive Block | $7.71 Part Advantage |
| 16 |  | W10814296replaces 383727 Washer Tub Gasket | $2.49 Part Advantage |
| 17 |  | WP353244replaces 3347780 Hose-wl | $31.19 Part Advantage |
| 19 |  | WP3946997replaces 3946997 Spring | - |
| 23 |  | WP8543666replaces 3355921 Washer | $5.06 Part Advantage |
| 24 |  | WP3354845replaces 3354845 Washer Agitator Clip | $15.95 ApplianceParts Pro |
| 25 |  | WP8538246replaces 8538246 Washer Agitator Assembly | $206.55 Part Advantage |
| 26 |  | WP3949550replaces 3949550 Washing Machine Washer | $4.54 Part Advantage |
