Kenmore 110.81320110
Electric Washer (Kenmore 11081320110)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.81320110Electric Washer (Kenmore 11081320110)
11 diagrams189 parts

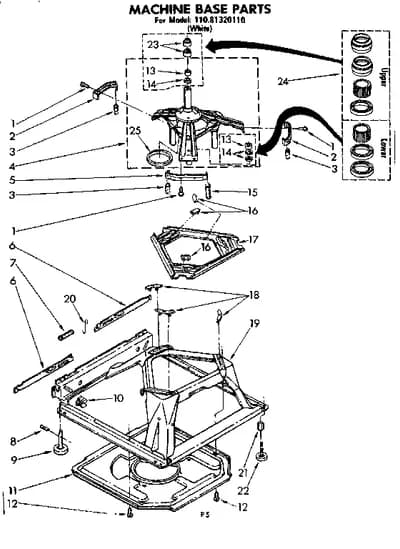

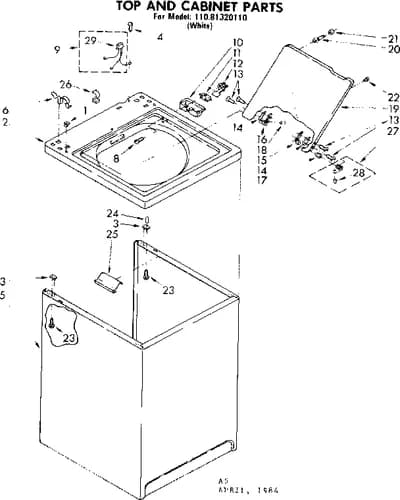

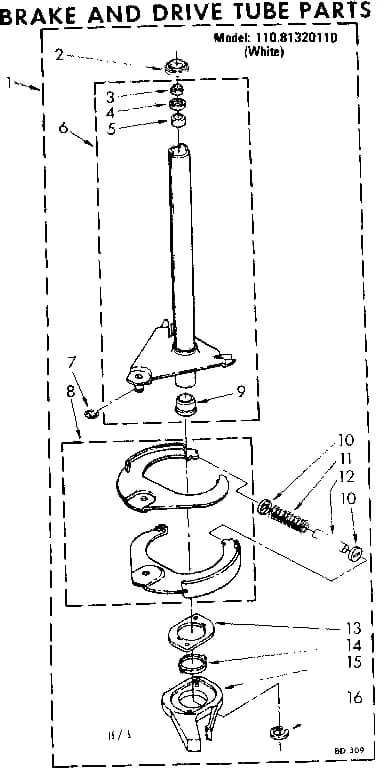

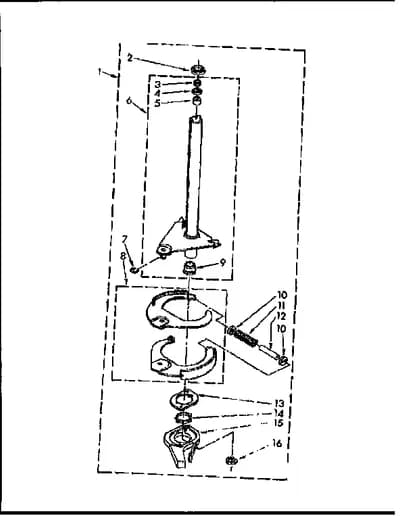

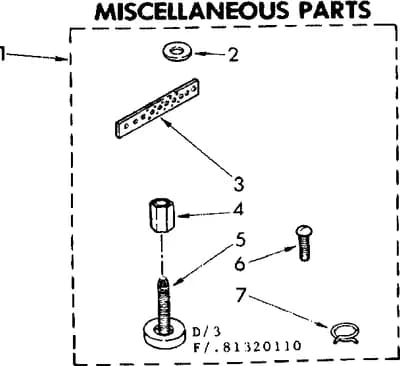

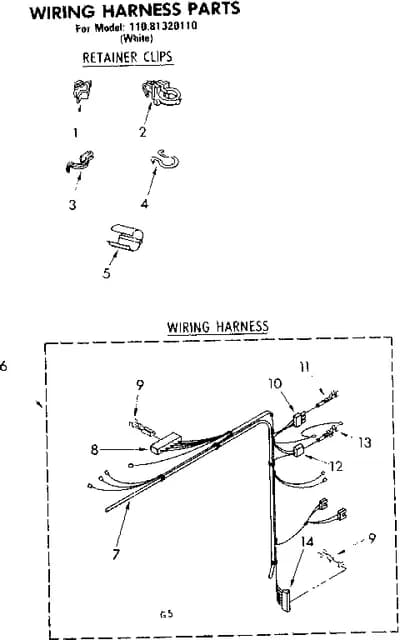

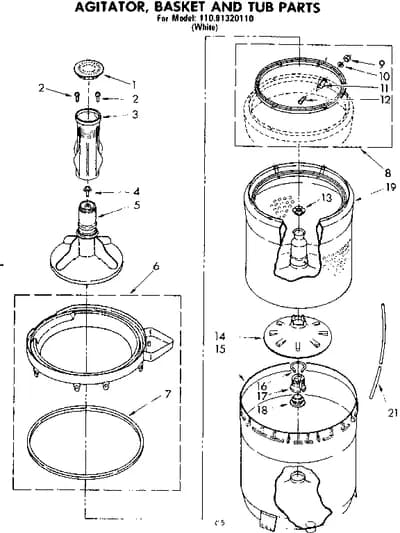

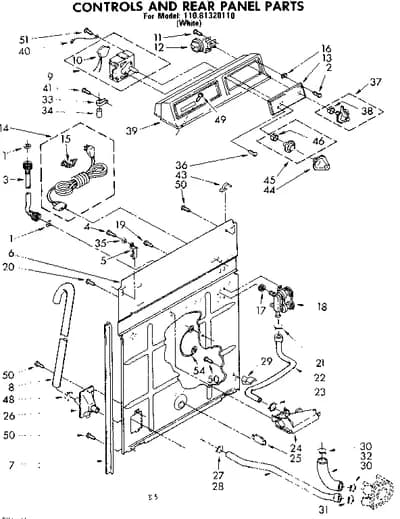

Parts Sections (11)
Diagram

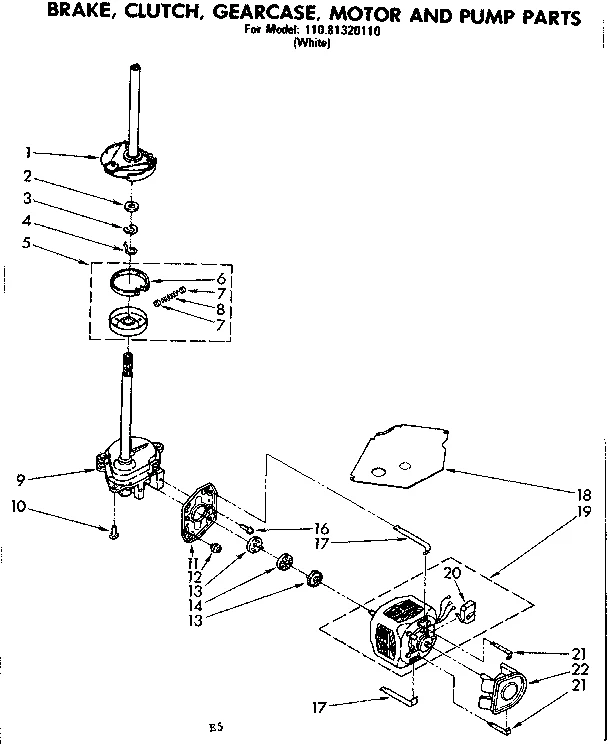

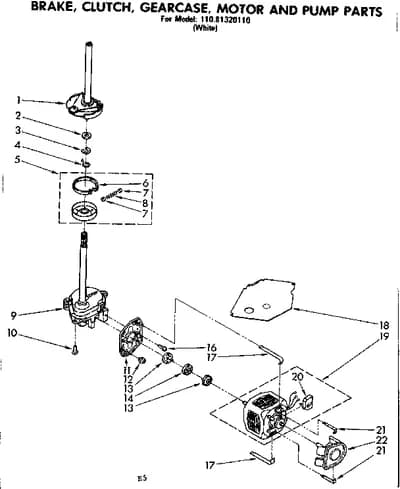

BRAKE CLUTCH GEARCASE MOTOR & PUMP PARTS
Parts in BRAKE CLUTCH GEARCASE MOTOR & PUMP PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10820043replaces 63388 Drive Basket | $80.05 Part Advantage |
| 2 |  | WP63292replaces 63292 Washing Machine Washer | $3.38 Part Advantage |
| 3 |  | WPW10080230replaces 62697 Ring | $7.77 RepairClinic |
| 4 |  | 285353replaces 63283 Ring | $5.00 RepairClinic |
| 5 |  | 285785replaces 63765 Clutch | $19.74 Part Advantage |
| 6 |  | Washer Leveling Link Assembly | - |
| 7 |  | WP62646replaces 62646 Cap, Clutch Spring | $2.30 Part Advantage |
| 8 | – | 381046 Spring | - |
| 9 | – | 385899 Gear Case | - |
| 10 | | 62735NLA Screw | Discontinued |
| 11 |  | WP62611replaces 62611 Plate | $37.95 Part Advantage |
| 12 |  | WP62691replaces 62691 Washer Drive Motor Grommet | $4.85 Part Advantage |
| 13 |  | 285753Areplaces 62672 Coupling | $8.80 Part Advantage |
| 14 | | 285753Areplaces 62693 Coupling | $8.80 Part Advantage |
| 16 |  | WP3400516replaces 98062 Screw | $2.30 Part Advantage |
| 17 |  | WPW10086010replaces 62692 Retainer | $5.00 RepairClinic |
| 18 |  | W10838408replaces 63209 Shield | - |
| 19 |  | WP661600replaces 62535 Motor | $133.42 Part Advantage |
| 20 | | Switch | Discontinued |
| 21 |  | WP8546127replaces 62700 Retainer | $2.76 Part Advantage |
| 22 |  | WP3363394replaces 63347 Pump | $22.37 Part Advantage |
