Model
Kenmore 665.16022400
Dishwasher (Kenmore 66516022400)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16022400Dishwasher (Kenmore 66516022400)
11 diagrams160 parts
Parts Sections (11)
Diagram

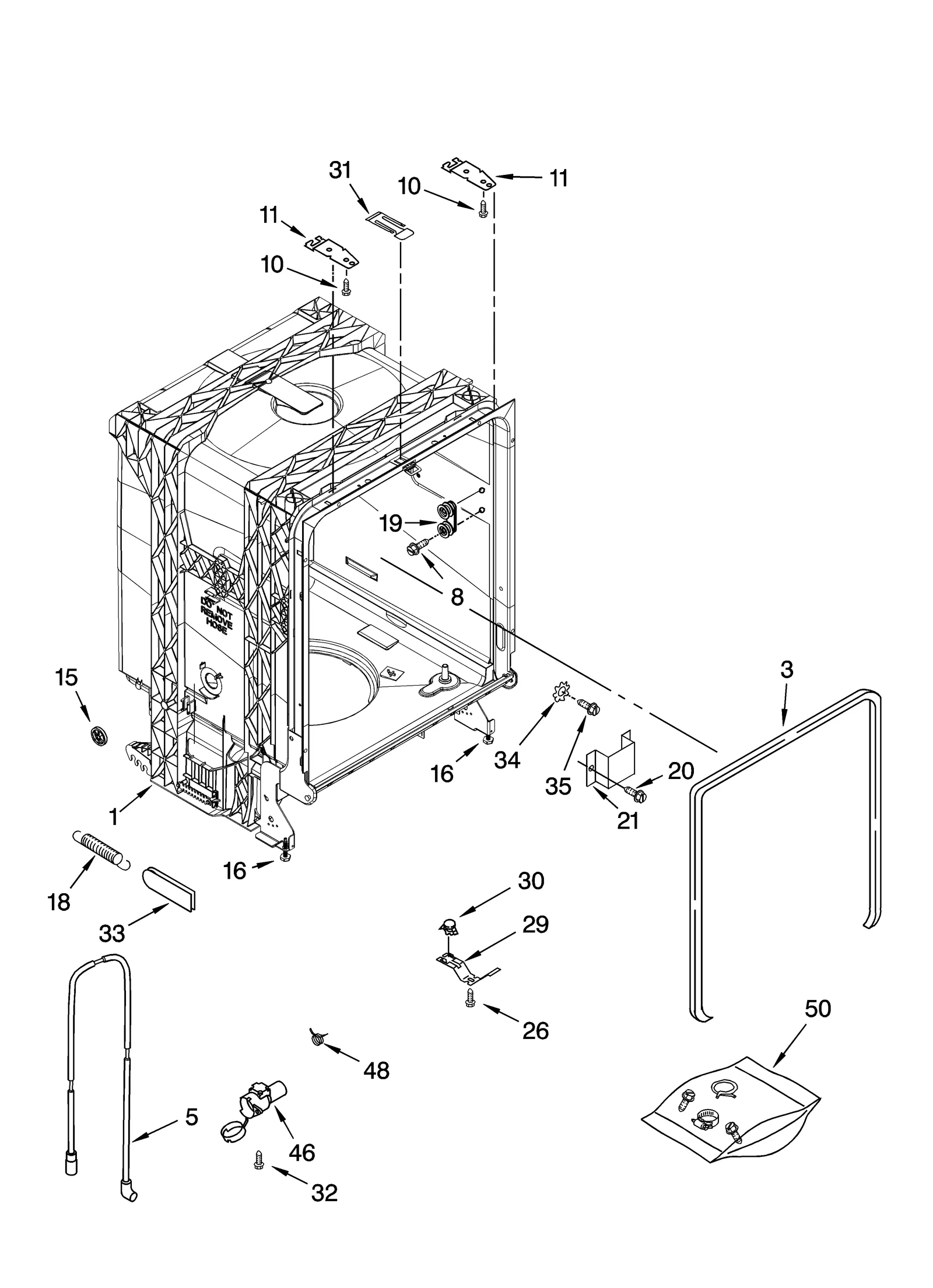

TUB AND FRAME PARTS
Parts in TUB AND FRAME PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10413848replaces 8268607 Dishwasher Tub | $373.71 PartSelect |
| 3 |  | W10542314replaces 8268888 Dishwasher Door Seal | $40.46 Parts Dr |
| 5 |  | WPW10358302replaces 8531022 Dishwasher Drain Hose and Check Valve | $41.11 Part Advantage |
| 8 |  | W10817436replaces 8533836 Screw | $4.14 Parts Dr |
| 10 |  | WP308685replaces 3367670 SCREW | $2.30 Part Advantage |
| 11 |  | WP8269145replaces 8269145 Dishwasher Mounting Bracket | $5.64 Part Advantage |
| 15 |  | WP8269831replaces 8269831 Dishwasher Wheel | $5.04 Parts Dr |
| 16 |  | 8193716replaces 8524584 Lever Leg | $32.19 Parts Dr |
| 18 |  | WPW10337934replaces 8524473 Spring | $10.33 Part Advantage |
| 19 |  | WP8270016replaces 8270016 Dishwasher Dishrack Wheel | $59.47 PartSelect |
| 20 |  | WP3400892replaces 3400892 Dishwasher Screw | $3.72 Parts Dr |
| 21 |  | WP8268991replaces 8268991 Dishwasher Terminal Block Cover | $32.95 ApplianceParts Pro |
| 26 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
| 29 |  | W10539489replaces 3378595 Thermostat Bracket | $4.89 RepairClinic |
| 30 |  | WP661566replaces 661566 Dishwasher Thermostat | $13.21 Part Advantage |
| 31 |  | WP8580309replaces 8269111 Strike | $29.41 Part Advantage |
| 32 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 33 |  | WP8268990replaces 8268990 Dishwasher Door Spring Bushing | $44.07 Part Advantage |
| 34 |  | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 35 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 46 |  | Dishwasher Turbidity Sensor | - |
| 48 |  | WP356138replaces 356138 Clamp | $3.38 Part Advantage |
| 50 |  | WPW10292170replaces 8269297 Miscellaneous Parts | $33.43 Part Advantage |
