Model
Kenmore 66513014K110
Undercounter Dishwasher (Kenmore 66513014K110)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513014K110Undercounter Dishwasher (Kenmore 66513014K110)
11 diagrams137 parts
Parts Sections (11)
Diagram

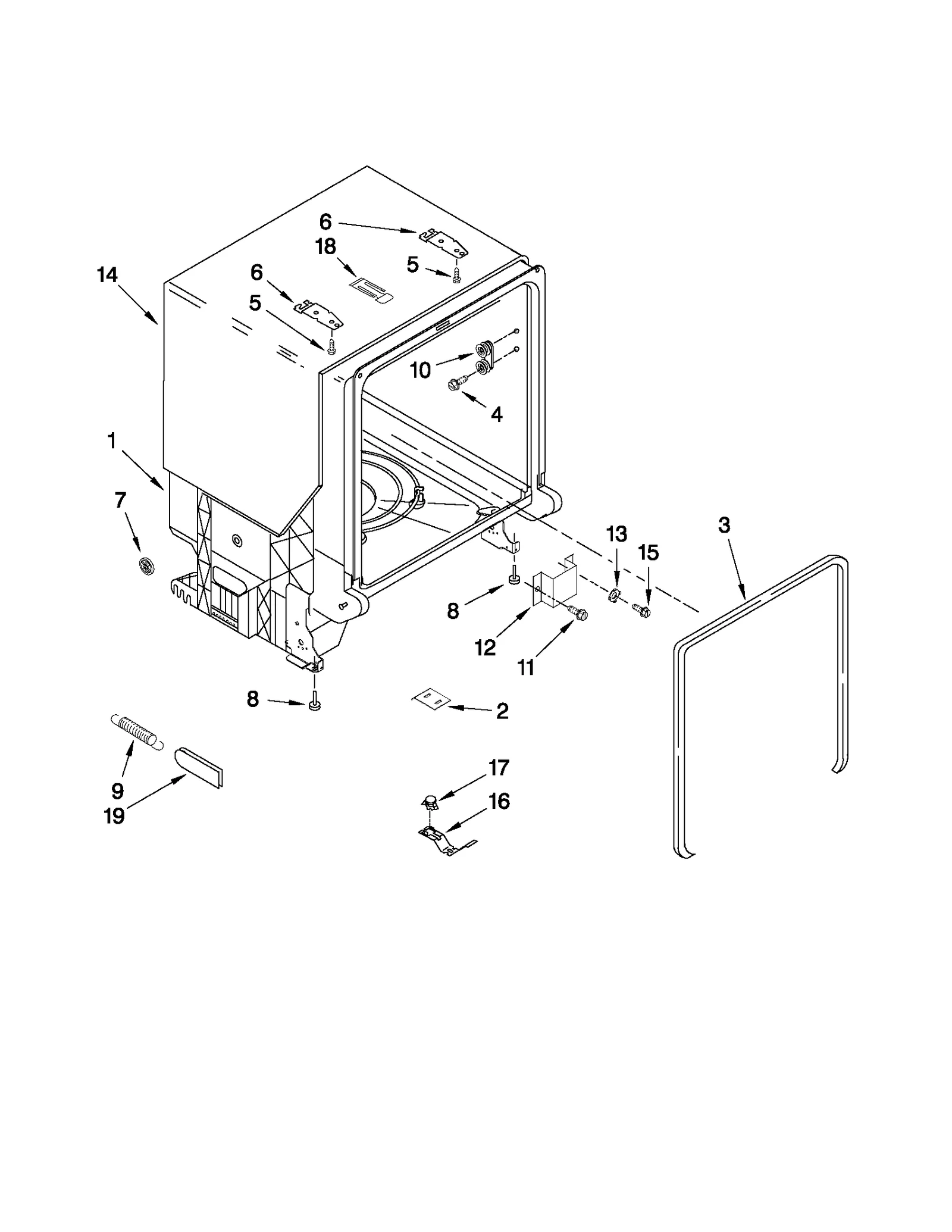

TUB AND FRAME PARTS
Parts in TUB AND FRAME PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10413848replaces W10350148 Dishwasher Tub | $373.71 PartSelect |
| 2 |  | W10321574replaces W10339699 Shield | $23.61 ApplianceParts Pro |
| 3 |  | W10542314replaces W10284090 Dishwasher Door Seal and Strike Kit | $40.46 Parts Dr |
| 4 |  | W10817436replaces W10341745 Dishwasher Screw | $4.14 Parts Dr |
| 5 |  | WP308685replaces 3367670 SCREW | $2.30 Part Advantage |
| 6 |  | WP8269145replaces 8269145 Dishwasher Mounting Bracket | $5.64 Part Advantage |
| 7 |  | WP8269831replaces 8269831 Dishwasher Wheel | $5.04 Parts Dr |
| 8 |  | 8193716replaces 8524584 Lever Leg | $32.19 Parts Dr |
| 9 |  | WPW10337934replaces 8524473 Spring | $10.33 Part Advantage |
| 10 |  | WP8270016replaces 8270016 Dishwasher Dishrack Wheel | $59.47 PartSelect |
| 11 |  | WPW10277003replaces W10277003 Dishwasher Screw | $2.30 Part Advantage |
| 12 |  | WP8268991replaces 8268991 Dishwasher Terminal Block Cover | $32.95 ApplianceParts Pro |
| 13 |  | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 14 |  | W11086533replaces 8573240 Dishwasher Tub Sound Shield | $12.94 Part Advantage |
| 15 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 16 |  | W10539489replaces 3378595 Thermostat Bracket | $4.89 RepairClinic |
| 17 |  | WP661566replaces W10339474 Thermostat | $13.21 Part Advantage |
| 18 |  | WP8580309replaces 8580309 Dishwasher Door Latch Strike | $29.41 Part Advantage |
| 19 |  | WP8268990replaces 8268990 Dishwasher Door Spring Bushing | $44.07 Part Advantage |
