Undercounter Dishwasher (Kenmore 66513255K114)
Parts Sections (11)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513255K114Undercounter Dishwasher (Kenmore 66513255K114)
11 diagrams146 parts

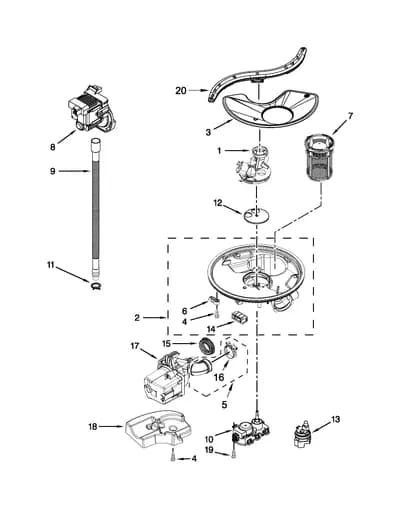

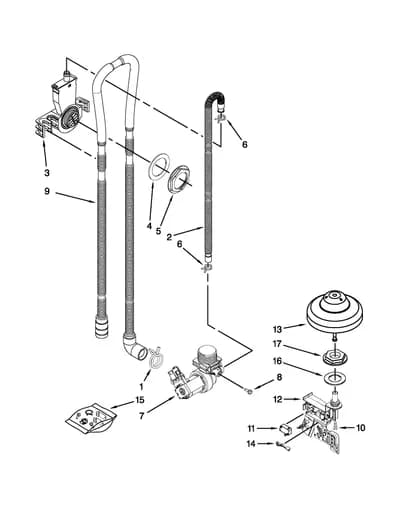

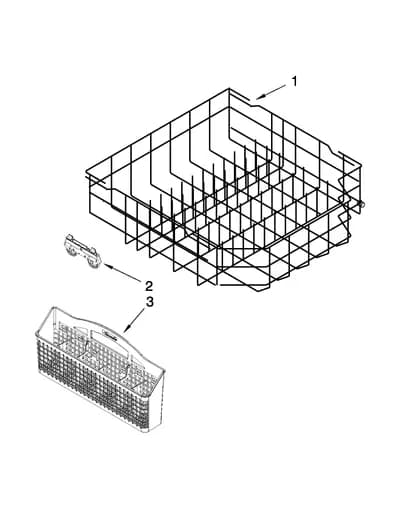

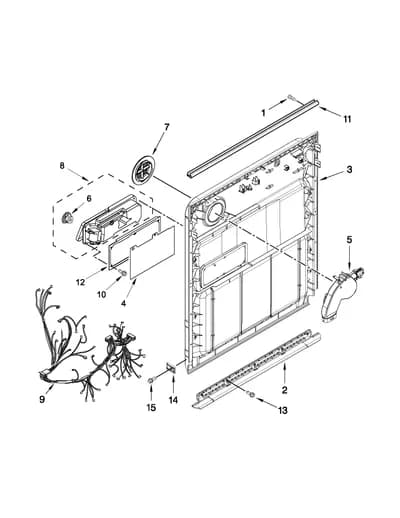

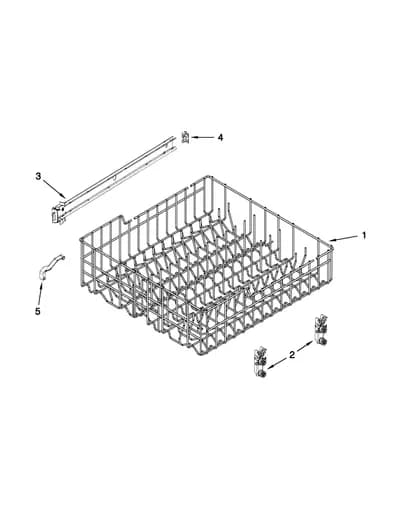

Parts Sections (11)
Diagram

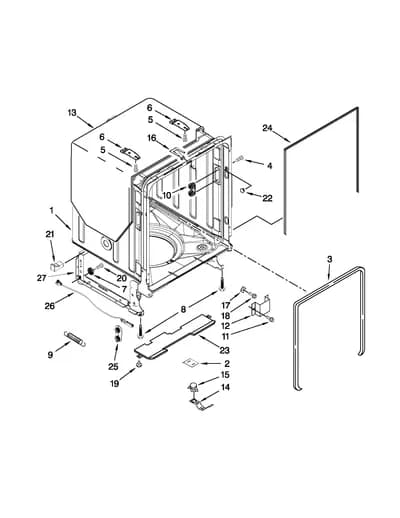

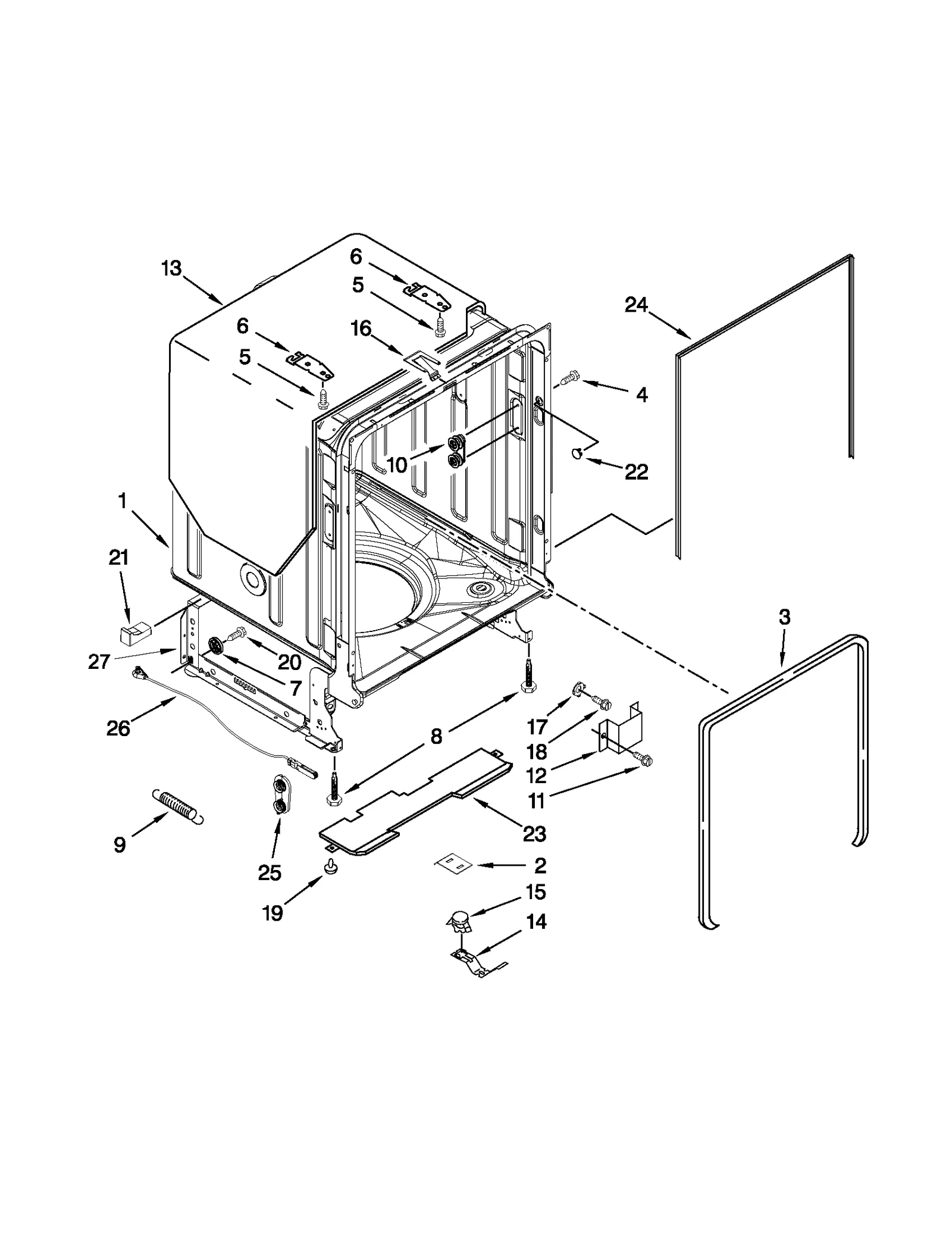

TUB AND FRAME PARTS

Parts in TUB AND FRAME PARTS
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | W10681507replaces W10511204 Dishwasher Tub | - | |
| 2 | ![]() | Dishwasher Thermostat Housing | - |
| 3 | W11177741replaces W10300924 Dishwasher Door Seal | $39.56 Part Advantage | |
| 4 | WPW10309090replaces W10309090 Dishwasher Screw | $26.69 Part Advantage | |
| 5 | WP308685replaces 3367670 SCREW | $2.30 Part Advantage | |
| 6 | WP8269145replaces 8269145 Dishwasher Mounting Bracket | $5.64 Part Advantage | |
| 7 | WPW10190778replaces W10190778 Dishwasher Wheel | $4.82 Part Advantage | |
| 8 | 8193716replaces W10304228 Lever Leg | $32.19 Parts Dr | |
| 9 | WP8270020replaces 8270020 Dishwasher Door Spring | $11.68 Part Advantage | |
| 10 | WPW10505748replaces W10505748 Dishwasher Dishrack Wheel | $3.55 Part Advantage | |
| 11 | WP3400892replaces 3400892 Dishwasher Screw | $3.72 Parts Dr | |
| 12 | ![]() | WP8268991replaces 8268991 Dishwasher Terminal Block Cover | $32.95 ApplianceParts Pro |
| 13 | W11086533replaces 8573240 Dishwasher Tub Sound Shield | $12.94 Part Advantage | |
| 14 | ![]() | Dishwasher Thermostat Housing | - |
| 15 | WPW10195091replaces W10339563 Dishwasher Thermostat | $19.53 Part Advantage | |
| 16 | WPW10300779replaces W10300779 Dishwasher Door Latch Strike | $68.70 RepairClinic | |
| 17 | ![]() | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 18 | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic | |
| 19 | WP3400924replaces 3400924 Dishwasher Tub Sound Shield Retainer | $13.10 Part Advantage | |
| 20 | WPW10348411replaces W10348411 Dishwasher Roller Wheel Screw | $3.37 Part Advantage | |
| 21 | Dishwasher Tub Support Spacer | $11.32 ApplianceParts Pro | |
| 21A | ![]() | Dishwasher Tub Support Spacer | - |
| 22 | W10795980replaces W10082838 Dishwasher Plastic Button | $5.14 Part Advantage | |
| 23 | WPW10746770replaces W10195368 Dishwasher Pad Insert | $28.66 RepairClinic | |
| 24 | W10864081replaces W10179427 Dishwasher Tub Gasket | $46.16 Part Advantage | |
| 25 | WPW10084086replaces W10084086 Dishwasher Door Balance Wheel Assembly | $20.52 RepairClinic | |
| 26 | 8194001replaces W10158291 Dishwasher Door Balance Link | $13.14 Part Advantage | |
| 27 | WPW10681564replaces W10190776 Dishwasher Rear Support Assembly | - |
