Model
Kenmore 66514522N610
Dishwasher (Kenmore 66514522N610)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66514522N610Dishwasher (Kenmore 66514522N610)
10 diagrams165 parts
Parts Sections (10)
Diagram

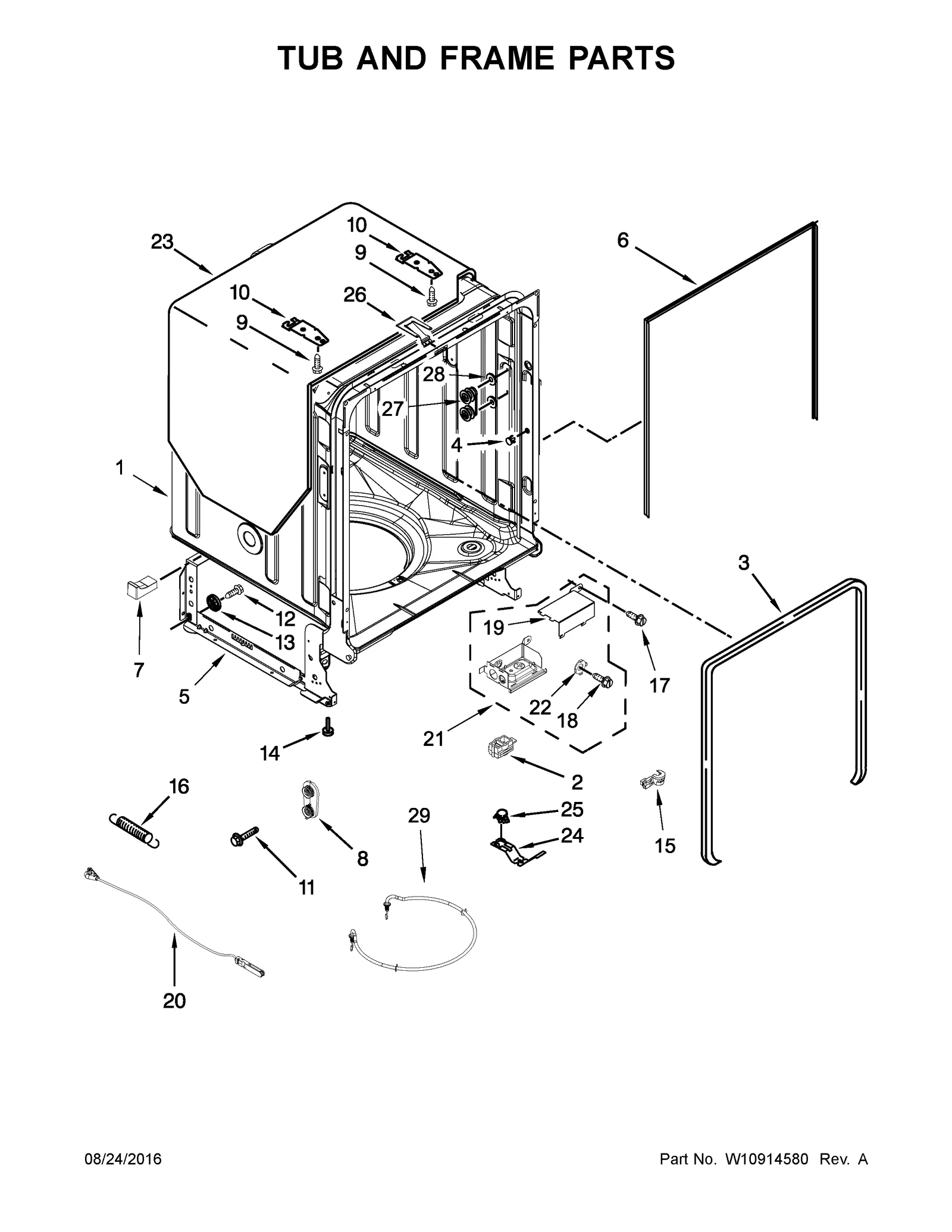

TUB AND FRAME PARTS
Parts in TUB AND FRAME PARTS
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10681513replaces W10681498 Tub Collar | - |
| 2 |  | Dishwasher Thermostat Housing | - |
| 3 |  | W11177741replaces W10300924 Dishwasher Door Seal | $39.56 Part Advantage |
| 4 |  | W10795980replaces W10813122 Button | $5.14 Part Advantage |
| 5 |  | WPW10681564replaces W10681564 Dishwasher Rear Support Assembly | - |
| 6 |  | W10864081replaces W10835073 Cabinet Seal | $46.16 Part Advantage |
| 7 | | Dishwasher Tub Support Spacer | $11.32 ApplianceParts Pro |
| 7A |  | Dishwasher Tub Support Spacer | - |
| 8 |  | WPW10084086replaces W10084086 Dishwasher Door Balance Wheel Assembly | $20.52 RepairClinic |
| 9 |  | WP308685replaces 3367670 SCREW | $2.30 Part Advantage |
| 10 |  | WP8269145replaces 8269145 Dishwasher Mounting Bracket | $5.64 Part Advantage |
| 11 |  | WP3400074replaces 3400074 Dishwasher Screw | $2.30 Part Advantage |
| 12 |  | WPW10348411replaces W10348411 Dishwasher Roller Wheel Screw | $3.37 Part Advantage |
| 13 |  | WPW10190778replaces W10190778 Dishwasher Wheel | $4.82 Part Advantage |
| 14 |  | 8193716replaces W10619352 Leveling Leg | $32.19 Parts Dr |
| 15 | | W10337661NLA Relief Stirrer | Discontinued |
| 16 |  | WP8270020replaces 8270020 Dishwasher Door Spring | $11.68 Part Advantage |
| 17 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 18 |  | WP3400892replaces 3400892 Dishwasher Screw | $3.72 Parts Dr |
| 19 |  | W10847918replaces W10653292 Electronic Cover | - |
| 20 |  | 8194001replaces W10158291 Dishwasher Door Balance Link | $13.14 Part Advantage |
| 21 |  | W11167239replaces W10713315 Terminal Box | - |
| 22 |  | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 23 |  | W11086533replaces W10866978 0.75" I SOUN | $12.94 Part Advantage |
| 24 |  | Dishwasher Thermostat Housing | - |
| 25 |  | WPW10195091replaces W10195091 Dishwasher Thermostat | $19.53 Part Advantage |
| 26 |  | WPW10544004replaces W10544004 Dishwasher Door Latch Strike | $29.96 Part Advantage |
| 27 |  | WPW10078083replaces W10078083 Dishwasher Dishrack Track Roller, Upper | $29.39 Part Advantage |
| 28 |  | WP9743002replaces 9743002 Dishwasher Dishrack Support Roller Gasket | $3.62 Part Advantage |
| 29 |  | W10703867replaces W10696509 Element Assembly | $55.01 Part Advantage |
