ModelKenmore
110.81375460System 21 Electric Washer (Kenmore 11081375460)
11 diagrams262 parts
Parts Sections (11)
Diagram

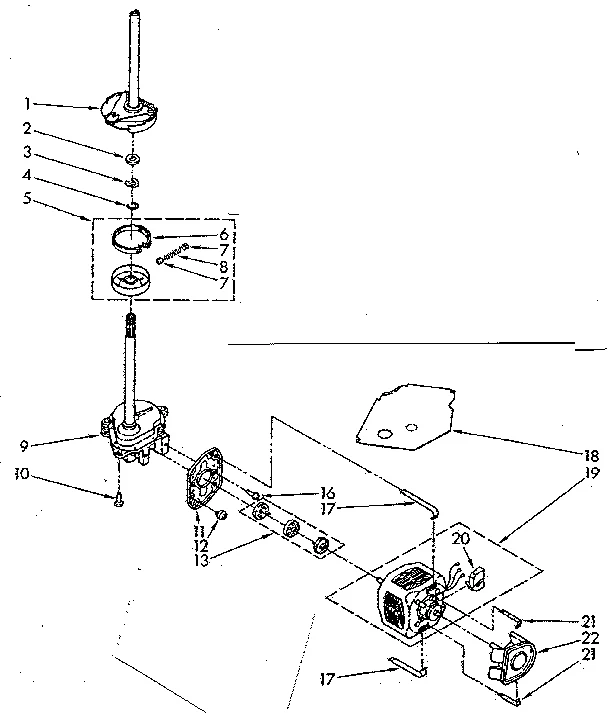

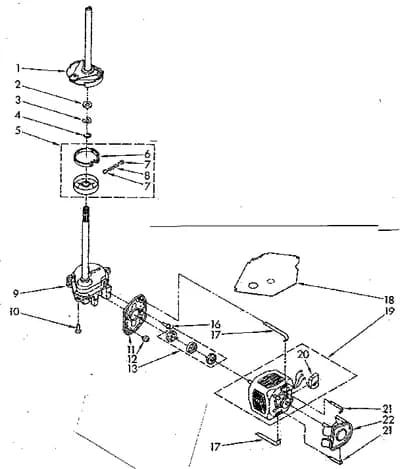

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
Parts in BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10820043replaces 64033 Drive Basket | $80.05 Part Advantage |
| 2 |  | WP63292replaces 63292 Washing Machine Washer | $3.38 Part Advantage |
| 3 |  | WPW10080230replaces 62697 Ring | $7.77 RepairClinic |
| 4 |  | 285353replaces 63283 Ring | $5.00 RepairClinic |
| 5 |  | 285785replaces 63174 Clutch | $19.74 Part Advantage |
| 6 |  | 285790replaces 63175 Lining | $27.09 Parts Dr |
| 7 |  | WP62646replaces 62646 Cap, Clutch Spring | $2.30 Part Advantage |
| 8 | | 285790replaces 387712 Spring | $27.09 Parts Dr |
| 9 |  | 3360629replaces 389246 Gear Case | $225.98 Part Advantage |
| 10 |  | 62735NLA Screw | Discontinued |
| 11 |  | WP62611replaces 62611 Plate | $37.95 Part Advantage |
| 12 |  | WP62691replaces 62691 Washer Drive Motor Grommet | $4.85 Part Advantage |
| 13 |  | 285753Areplaces 285140 Coupling | $8.80 Part Advantage |
| 16 |  | WP3400516replaces 98062 Screw | $2.30 Part Advantage |
| 17 |  | WPW10086010replaces 62692 Retainer | $5.00 RepairClinic |
| 18 |  | W10838408replaces 63209 Shield | - |
| 19 |  | WP661600replaces 62556 Motor | $133.42 Part Advantage |
| 20 | | Switch | Discontinued |
| 21 |  | WP8546127replaces 62700 Retainer | $2.76 Part Advantage |
| 22 |  | WP3363394replaces 64076 Pump | $22.37 Part Advantage |
