Kenmore 665.16559201
Undercounter Dishwasher (Kenmore 66516559201)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16559201Undercounter Dishwasher (Kenmore 66516559201)
12 diagrams164 parts

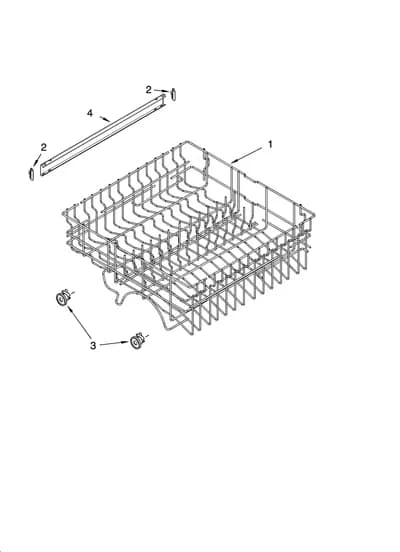

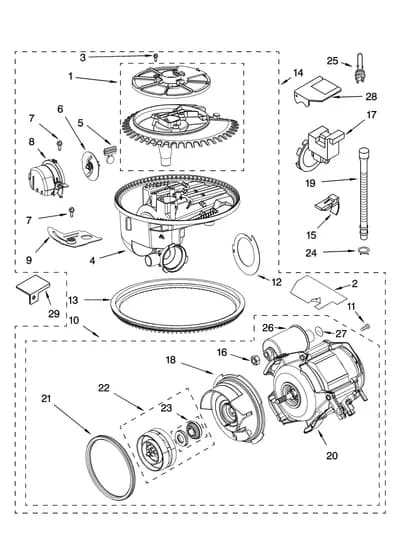

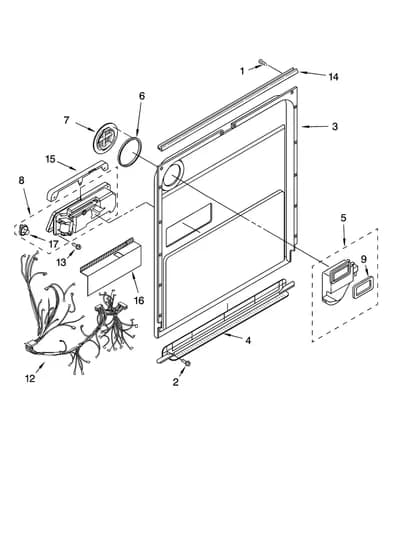

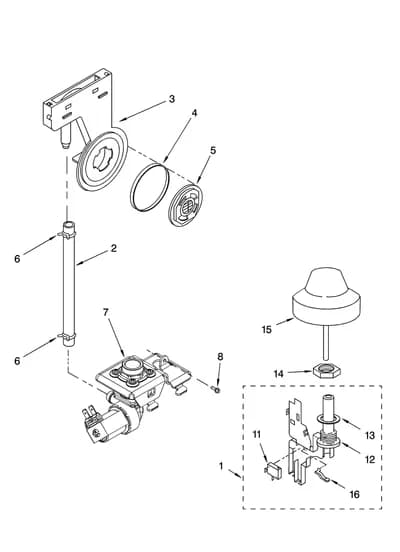

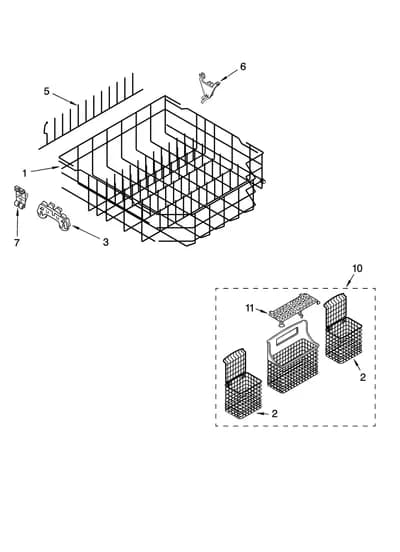

Parts Sections (12)
Diagram

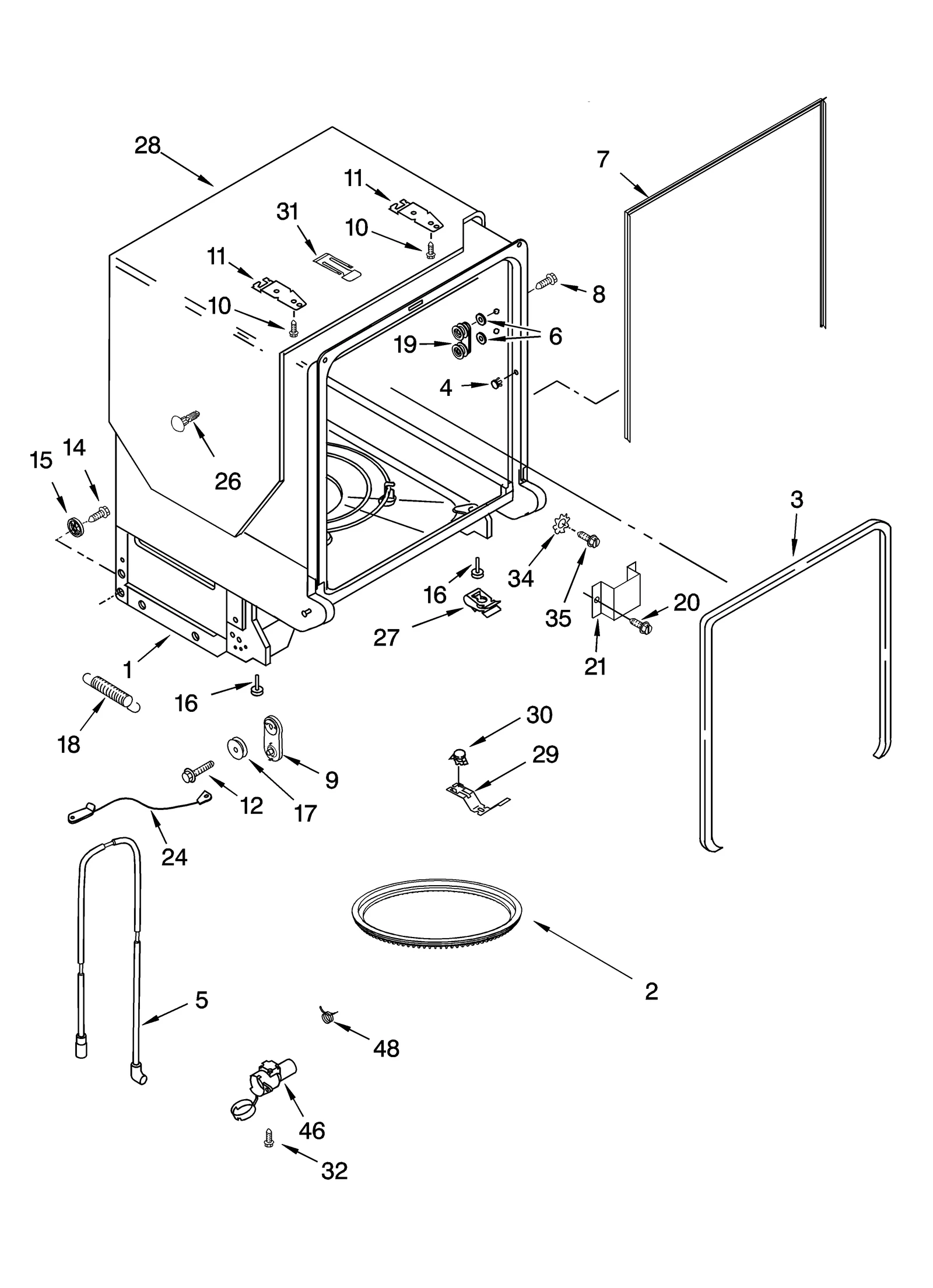

TUB AND FRAME PARTS
Parts in TUB AND FRAME PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Dishwasher Tub | Discontinued |
| 2 | | 8268395NLA Dishwasher Sump Gasket | Discontinued |
| 3 |  | W11196317replaces 8268938 Gasket | $60.78 Part Advantage |
| 4 |  | W10795980replaces 8270119 Cap | $5.14 Part Advantage |
| 5 |  | WPW10358302replaces 8531022 Dishwasher Drain Hose and Check Valve | $41.11 Part Advantage |
| 6 |  | WP9743002replaces 9743002 Dishwasher Dishrack Support Roller Gasket | $3.62 Part Advantage |
| 7 |  | W10864081replaces 8269110 Seal | $46.16 Part Advantage |
| 8 |  | WPW10348407replaces 3400072 Screw | $5.95 ApplianceParts Pro |
| 9 |  | 8194001replaces 8270021 Dishwasher Door Balance Wheel Retainer | $13.14 Part Advantage |
| 10 |  | WP308685replaces 3367670 SCREW | $2.30 Part Advantage |
| 11 |  | WP8269145replaces 8269145 Dishwasher Mounting Bracket | $5.64 Part Advantage |
| 12 |  | WP3400074replaces 3400074 Dishwasher Screw | $2.30 Part Advantage |
| 14 | | 3370389NLA Screw | Discontinued |
| 15 |  | WP8268977replaces 8268977 Dishwasher Wheel | $4.32 Part Advantage |
| 16 |  | 8193716replaces 8524584 Lever Leg | $32.19 Parts Dr |
| 17 | | 8194001replaces 8524474 Dishwasher Door Balance Wheel | $13.14 Part Advantage |
| 18 |  | WP8270020replaces 8270020 Dishwasher Door Spring | $11.68 Part Advantage |
| 19 |  | WP8270019replaces 8270019 Dishwasher Dishrack Wheel | $4.32 Part Advantage |
| 20 |  | WP3400892replaces 3400892 Dishwasher Screw | $3.72 Parts Dr |
| 21 |  | WP8268991replaces 8268991 Dishwasher Terminal Block Cover | $32.95 ApplianceParts Pro |
| 24 | | 8194001replaces 8270022 Link | $13.14 Part Advantage |
| 26 | | WP304666replaces 304666 Dishwasher Tub Sound Shield Retainer | $8.57 Part Advantage |
| 27 |  | WP8269016replaces 8269016 Dishwasher Toe Panel Clip | $6.90 RepairClinic |
| 28 |  | W11086533replaces 8531032 Shield | $12.94 Part Advantage |
| 29 |  | Dishwasher Thermostat Retainer | $22.21 RepairClinic |
| 30 |  | WP661566replaces 661566 Dishwasher Thermostat | $13.21 Part Advantage |
| 31 |  | WP8580309replaces 8269111 Strike | $29.41 Part Advantage |
| 32 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 34 |  | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 35 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 46 | | Pressure Switch | - |
| 48 |  | WP356138replaces 356138 Clamp | $3.38 Part Advantage |
