Model
Kenmore 110.91220100
Washer (Kenmore 11091220100)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.91220100Washer (Kenmore 11091220100)
10 diagrams189 parts
Parts Sections (10)
Diagram

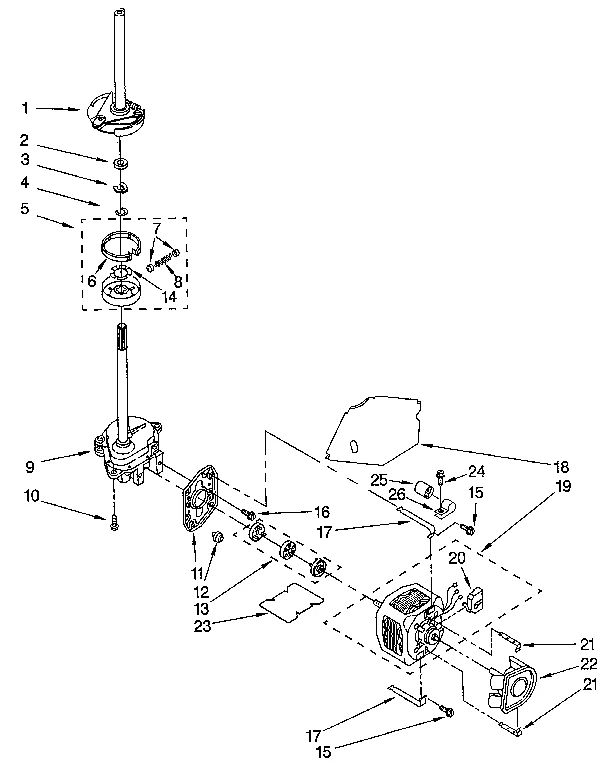

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP
Parts in BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10820043replaces 388951 Basketdriv | $80.05 Part Advantage |
| 2 |  | WP63292replaces 63292 Washing Machine Washer | $3.38 Part Advantage |
| 3 |  | WPW10080230replaces 62697 Ring | $7.77 RepairClinic |
| 4 |  | 285353replaces 63283 Ring | $5.00 RepairClinic |
| 5 |  | 285785replaces 3350115 Clutch | $19.74 Part Advantage |
| 6 |  | 285790replaces 388190 Lining | $27.09 Parts Dr |
| 7 |  | WP62646replaces 62646 Cap, Clutch Spring | $2.30 Part Advantage |
| 8 | | 285790replaces 3354731 Spring | $27.09 Parts Dr |
| 9 |  | 3360629replaces 389246 Gear Case | $225.98 Part Advantage |
| 10 |  | 62735NLA Screw | Discontinued |

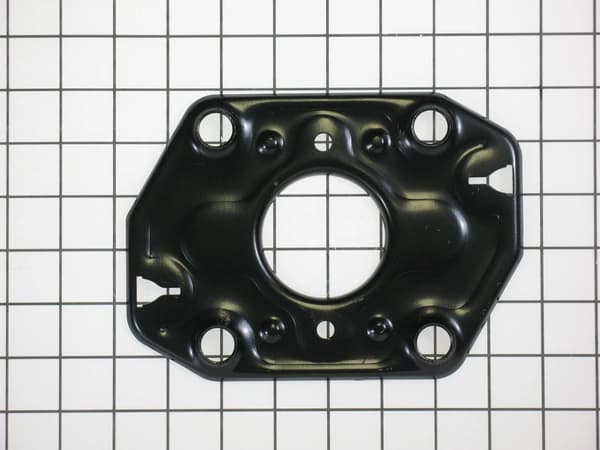

| 11 |  | WP62611replaces 62611 Plate | $37.95 Part Advantage |
| 12 |  | WP62691replaces 62691 Washer Drive Motor Grommet | $4.85 Part Advantage |
| 13 |  | 285753Areplaces 661560 Coupling | $8.80 Part Advantage |
| 14 |  | WP3355454replaces 3355454 Clip | $3.38 Part Advantage |
| 15 |  | WP273556replaces 3387485 Washer Screw | $2.30 Part Advantage |
| 16 |  | WP3400516replaces 98062 Screw | $2.30 Part Advantage |
| 17 |  | WPW10086010replaces 3349637 Motor Retainer | $5.00 RepairClinic |

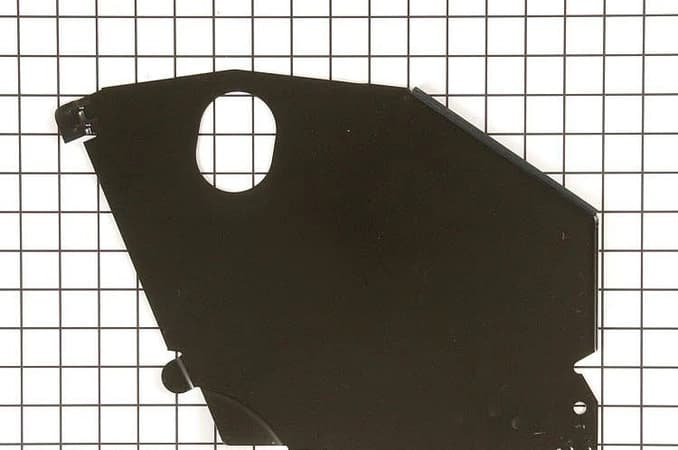

| 18 |  | W10838408replaces 3349282 Motor Shield | - |

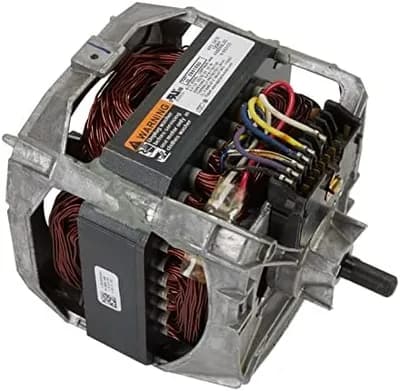

| 19 |  | WP661600replaces 3349643 Motor 60 | $133.42 Part Advantage |
| 20 | | Switch | Discontinued |
| 21 |  | WP8546127replaces 62700 Retainer | $2.76 Part Advantage |
| 22 |  | WP3363394replaces 3352492 Water Pump | $22.37 Part Advantage |
| 23 |  | WP3946532replaces 3351341 Motor Shield | $20.49 ApplianceParts Pro |
| 24 |  | WP3390631replaces 9420601 Screw | $2.30 Part Advantage |
| 25 |  | WP8572717replaces 357021 Capacitor | $43.58 Part Advantage |
| 26 |  | Clamp | - |
